(4) Detaching and refitting the MP paper feed pulley and MP separation pad
Follow the procedure below to replace the MP paper feed pulley and MP separation pad.
Procedure
1. Open the front cover and remove the waste
toner box. Pull out the cassette.
2. Remove the screw and remove the front left
lower cover (see page 1-5-3).
3. Remove the paper conveying unit (see page
1-5-9).
4. Remove the stop ring and bush from the
front side of the machine.

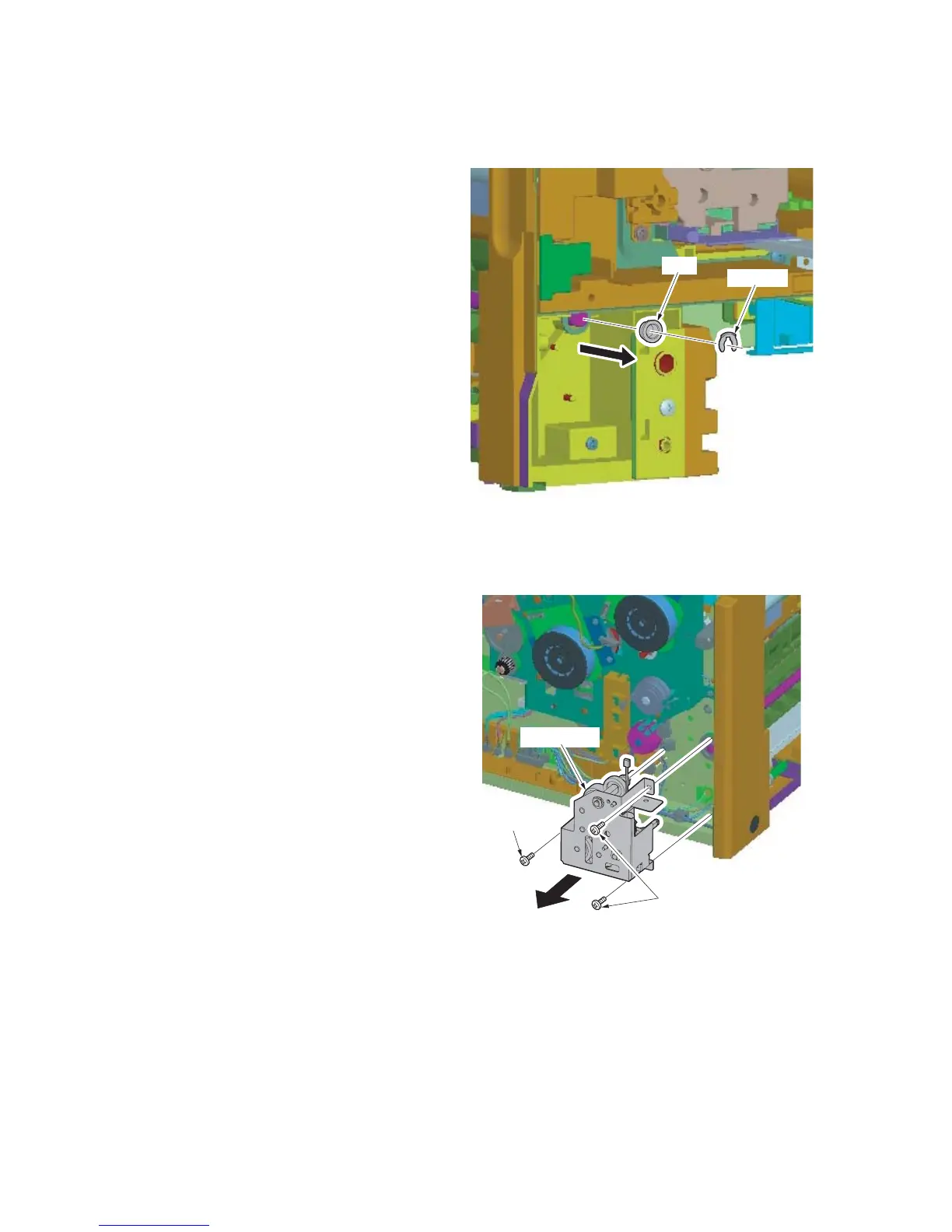

Figure 1-5-16
5. Remove the rear cover (see page 1-5-6).
6. Remove three screws and remove the MP
drive unit.
Figure 1-5-17
Bush
Stop ring
Screw
Screws
MP drive unit
