Kyocera TASKalfa 220 - Chart of Image Adjustment Procedures

2KL/2KK
2-4-5
Chart of image adjustment procedures
Adjusting
order

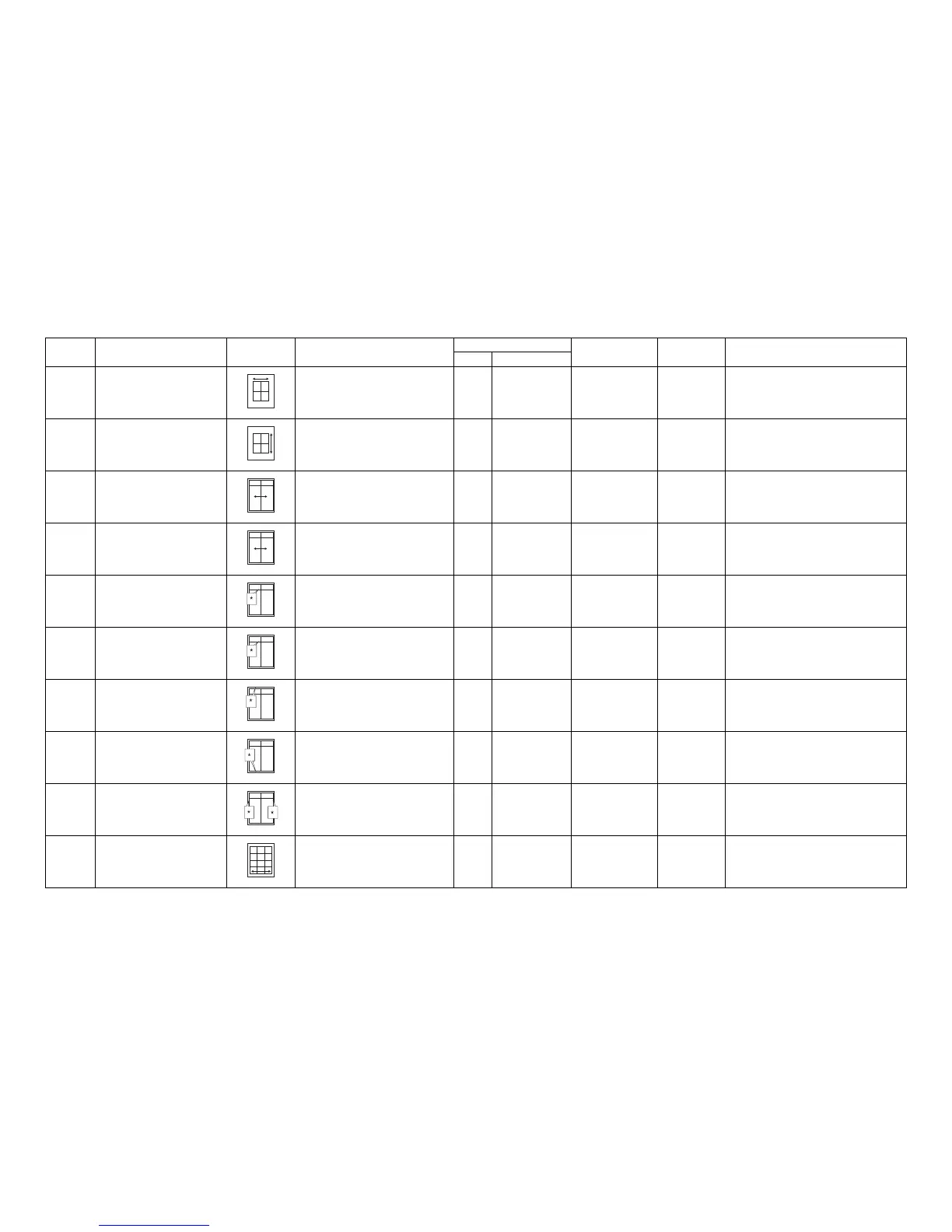

Item Image Description
Maintenance mode
Original Page Remarks
Item No. Mode
1
Adjusting the magnification in the
main scanning direction (printing
adjustment)
Polygon motor speed adjustment U053 Exp.2 (light) U053 test pattern P.1-3-17
2
Adjusting the magnification in the
auxiliary scanning direction (print-
ing adjustment)
Drive motor speed adjustment U053 Exp.1 (light) U053 test pattern P.1-3-17
3
Adjusting the center line of the MP
tray (printing adjustment)
Adjusting the LSU print start timing U034 Exp.2 (light) U034 test pattern P.1-3-13
4
Adjusting the center line of the cas-
settes (printing adjustment)
Adjusting the LSU print start timing U034 Exp.1 (light) U034 test pattern P.1-3-13 First paper feeder: select exp.3 (light)
Second paper feeder: select exp.4 (light)
Third paper feeder: select exp.5 (light)
Duplex copying: select exp.1 (flashing)
5
Adjusting the leading edge registra-
tion of the MP tray (printing adjust-
ment)
Registration clutch turning on timing
(secondary paper feed start timing)
U034 Exp.2 (light) U034 test pattern P.1-3-12
6
Adjusting the leading edge registra-
tion of the cassettes (printing
adjustment)
Registration clutch turning on timing
(secondary paper feed start timing)
U034 Exp.1 (light) U034 test pattern P.1-3-12 First paper feeder: select exp.3 (light)
Second paper feeder: select exp.4 (light)
Third paper feeder: select exp.5 (light)
Duplex copying: select exp.1 (flashing)
7
Adjusting the leading edge margin
(printing adjustment)
LSU illumination start timing U402 Exp.1 (light) U402 test pattern P.1-3-50
8
Adjusting the trailing edge margin
(printing adjustment)
LSU illumination end timing U402 Exp.3 (light) U402 test pattern P.1-3-50
9
Adjusting the left and right margins
(printing adjustment)
LSU illumination start/end timing U402 Exp.2 (light) U402 test pattern P.1-3-50
10
Adjusting magnification of the
scanner in the main scanning direc-
tion (scanning adjustment)
Data processing U065 Exp.1 (light) Test chart P.1-3-19 No adjustment for copying using the DP.
