2KL/2KK
1-5-9
(3) Detaching and refitting the paper conveying unit
Follow the procedure below to maintenance of the paper feed section.
Procedure
1. Remove the drum unit (see page 1-5-34).
2. Remove the lower paper feed unit (see page
1-5-3).
3. Remove the stop ring and strap from the
rear side of the left cover.
Remove the stop ring and stopper from the
front side of the left cover.

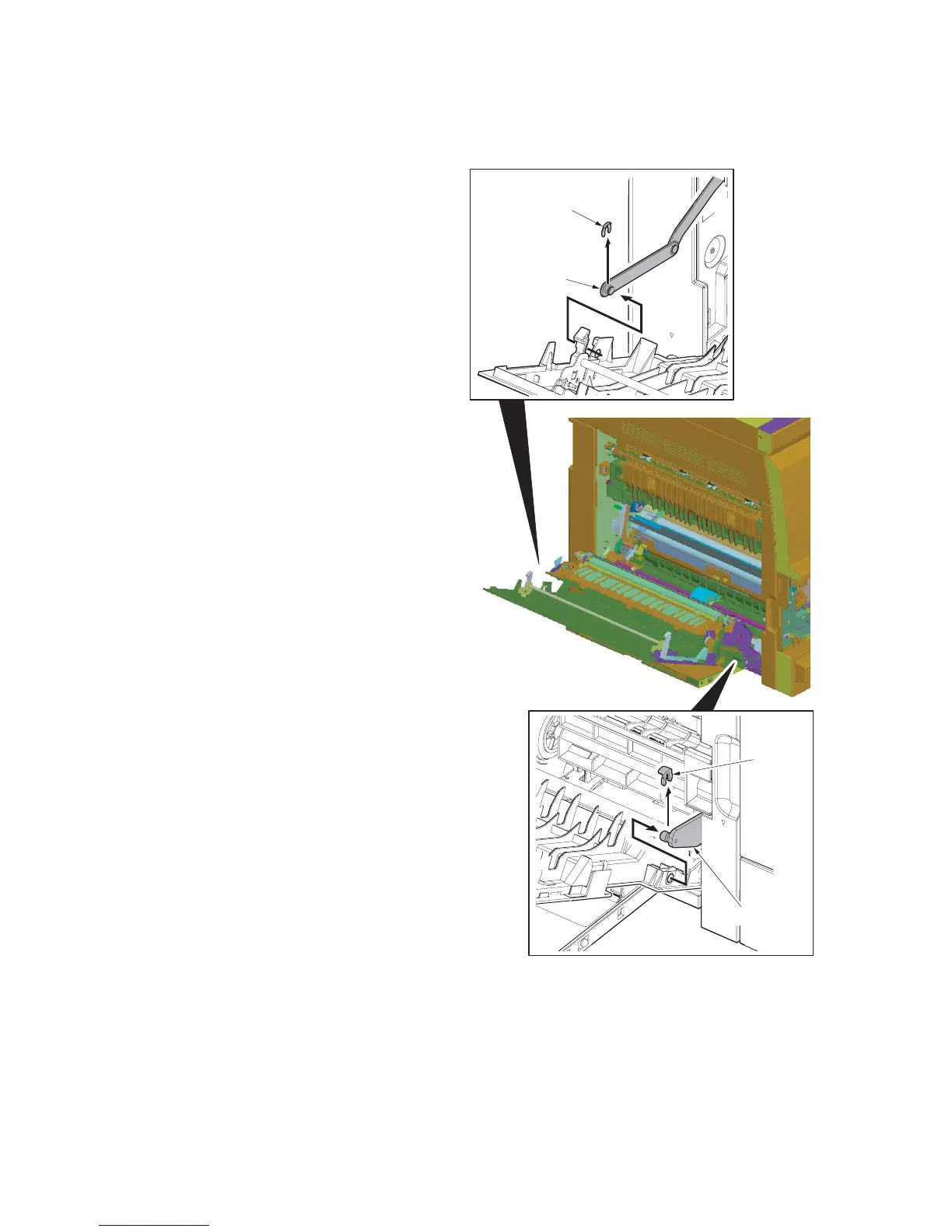

Figure 1-5-14
Stopper
Stop ring
Strap
Stop ring
To Next Page
