Kyocera TASKalfa 220 - Motors

2KL/2KK
2-2-4
(3) Motors

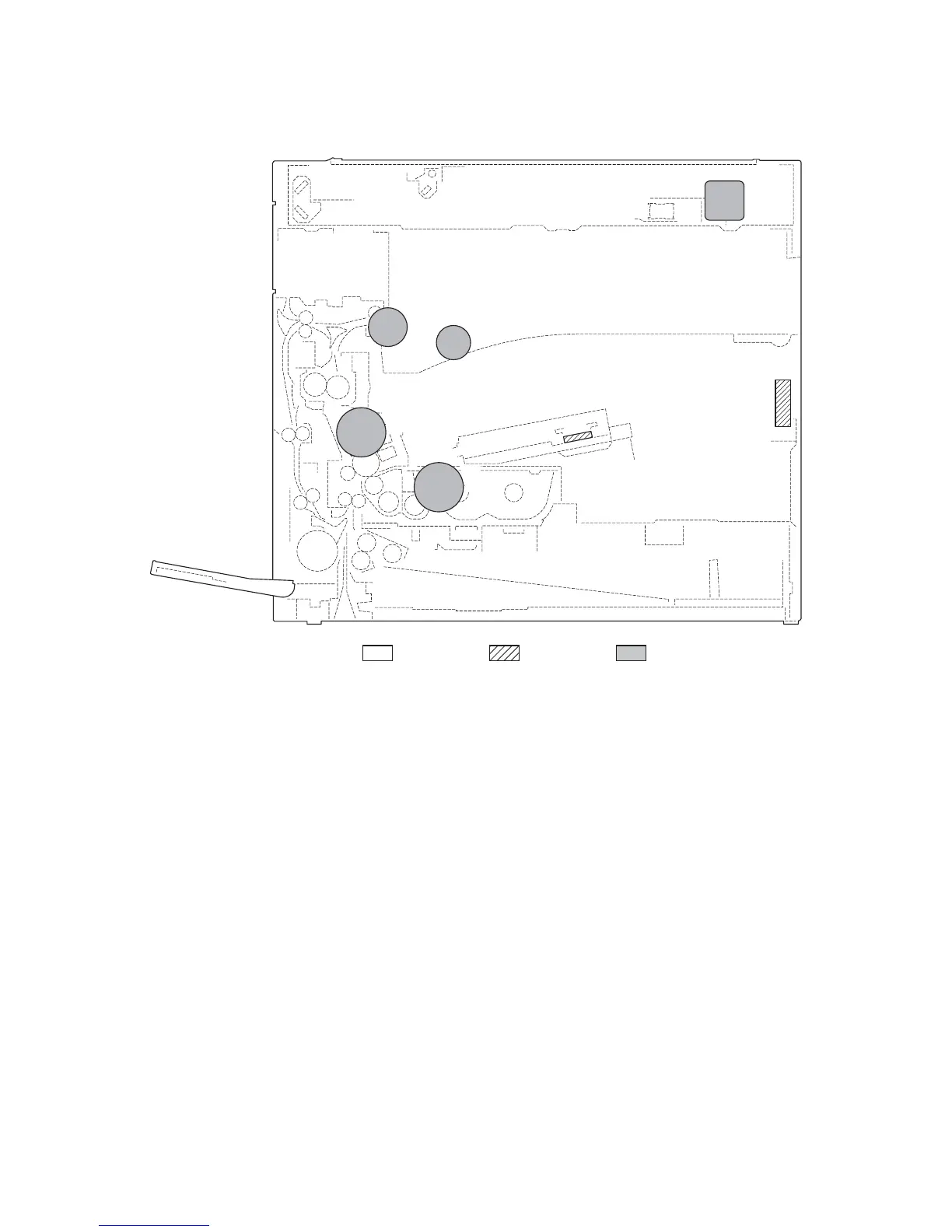

Figure 2-2-3 Motors
1. Drive motor (DM) ......................................... Drives the machine.
2. Drum motor (DRM) ...................................... Drives the drum.
3. Eject motor (EM) .......................................... Drives the eject section.
4. Scanner motor (SM)..................................... Drives the optical system.
5. Cooling fan motor 1 (CFM1) ........................ Cools the machine interior.
6. Cooling fan motor 2 (CFM2) ........................ Cools the machine interior.
7. Polygon motor (PM)..................................... Drives the polygon mirror.
2
4
1
3
7
5
6
Machine front
Machine inside
Machine rear
