(6) Detaching and refitting the fuser thermistor
Follow the procedure below to replace the fuser thermistor.
Procedure
1. Separate the right and left fuser unit (see
page 1-5-42).
2. Remove the heat roller (see page 1-5-48).
3. Remove the screw and remove the fuser
thermistor.
4. Replace the fuser thermistor and refit all the
removed parts.
Caution
Restore the fuser thermistor wire to its origi-
nal correct position.
After refitting the heat roller, push the roller
lightly to check that the detection surface of
the fuser thermistor comes in contact with
the roller.

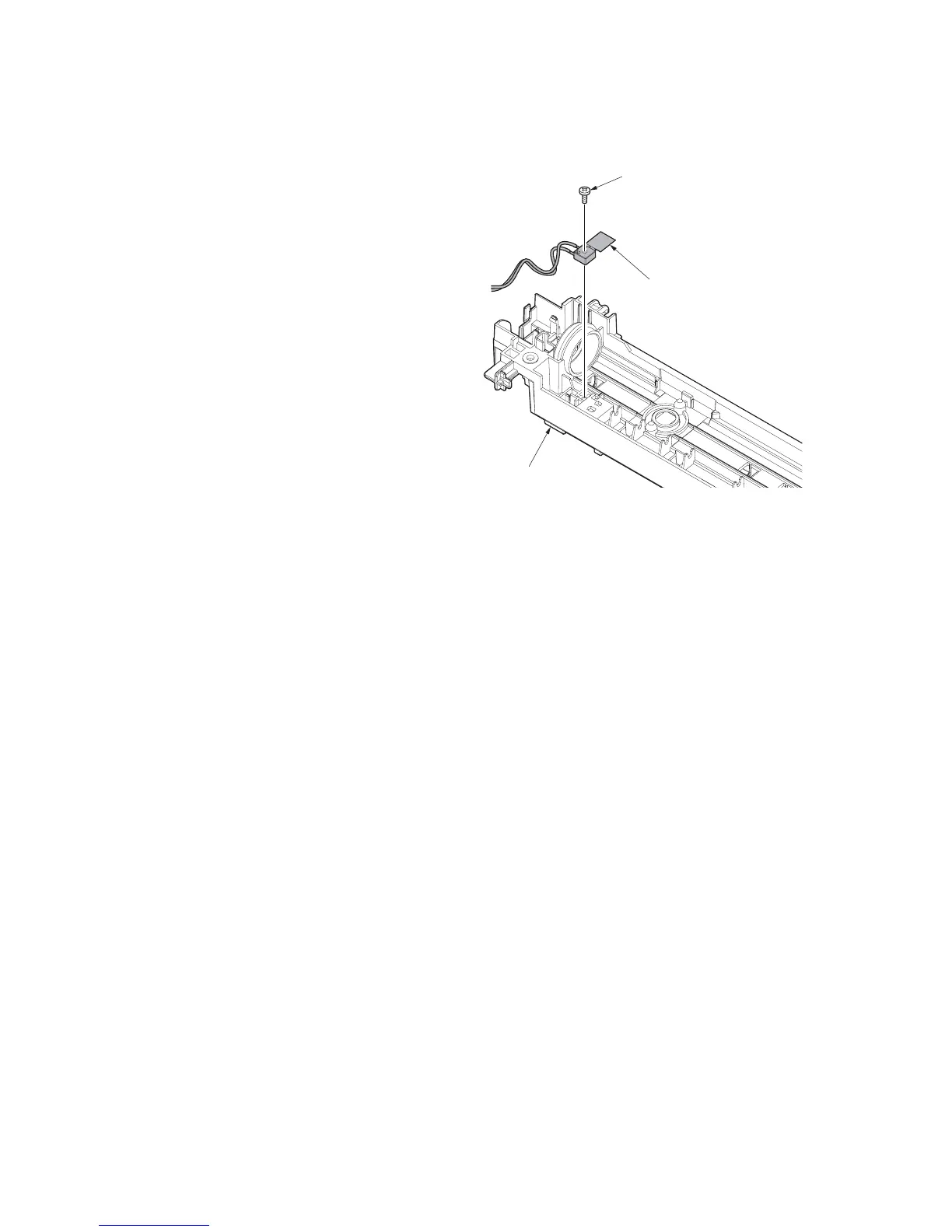

Figure 1-5-83
Fuser thermistor
Right fuser unit
Screw
