Kyocera TASKalfa 220 - Machine Cross Section

2KL/2KK
1-1-5
1-1-3 Machine cross section

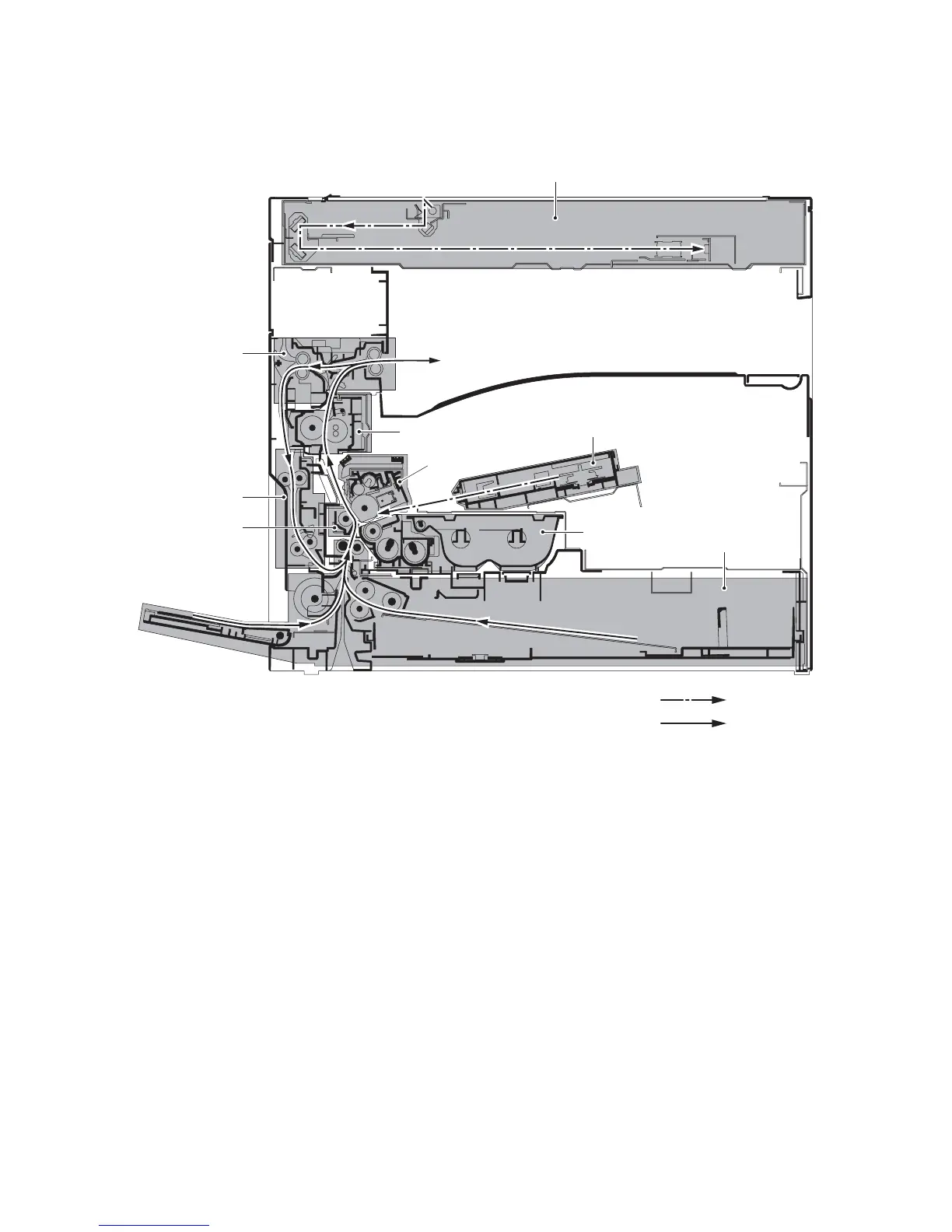

Figure 1-1-3 Machine cross section
2
2
1
7
6
3
4
8
5
Paper path
Light path
1. Paper feed section
2. Optical section
3. Drum section
4. Developing section
5. Transfer and separation sections
6. Fuser section
7. Eject and switchback sections
8. Duplex section
