Kyocera TASKalfa 220 - Laser Scanner Section

2KL/2KK
2-1-5
(2) Laser scanner section
The image data scanned by the CCD PWB (CCDPWB) is processed on the main PWB (MPWB) and transmitted as image
printing data to the laser scanner unit (LSU). By repeatedly turning the laser on and off, the laser scanner unit forms a
latent image on the drum surface.

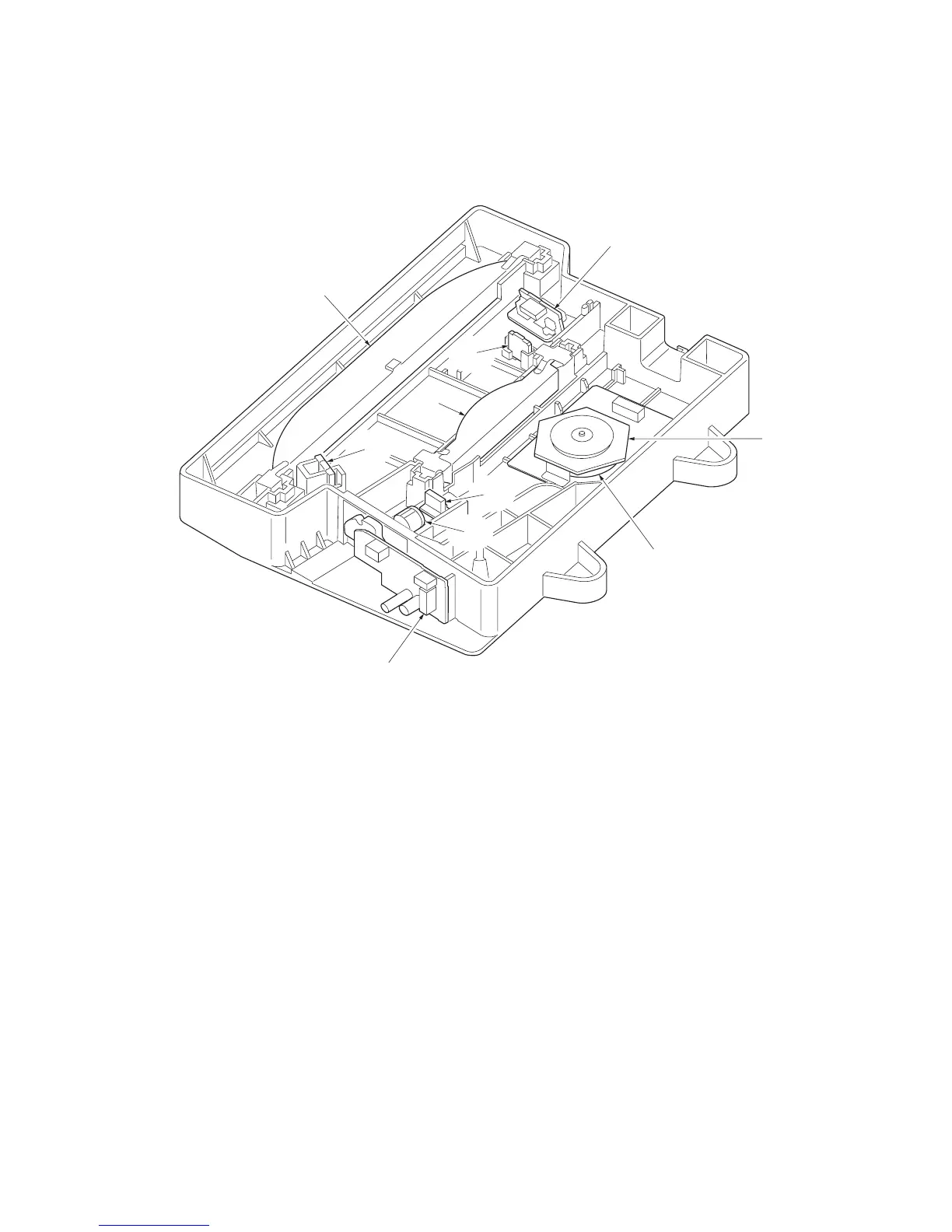

Figure 2-1-5 Laser scanner section
7
8
3
2
9
5
4
1
10
6
(1) APC PWB (APCPWB)
(2) Laser diode
(3) Cylindrical lens
(4) Polygon motor (PM)
(5) Polygon mirror
(6) f
θ lens
(7) f
θ lens
(8) PD sensor mirror
(9) Cylindrical correcting lens
(10) PD PWB (PDPWB)
