Kyocera TASKalfa 220 - Page 174

2KL/2KK
1-5-32
10. Remove four screws and two connectors
and remove the laser scanner unit.
11. Replace the laser scanner unit and refit all
the removed parts.

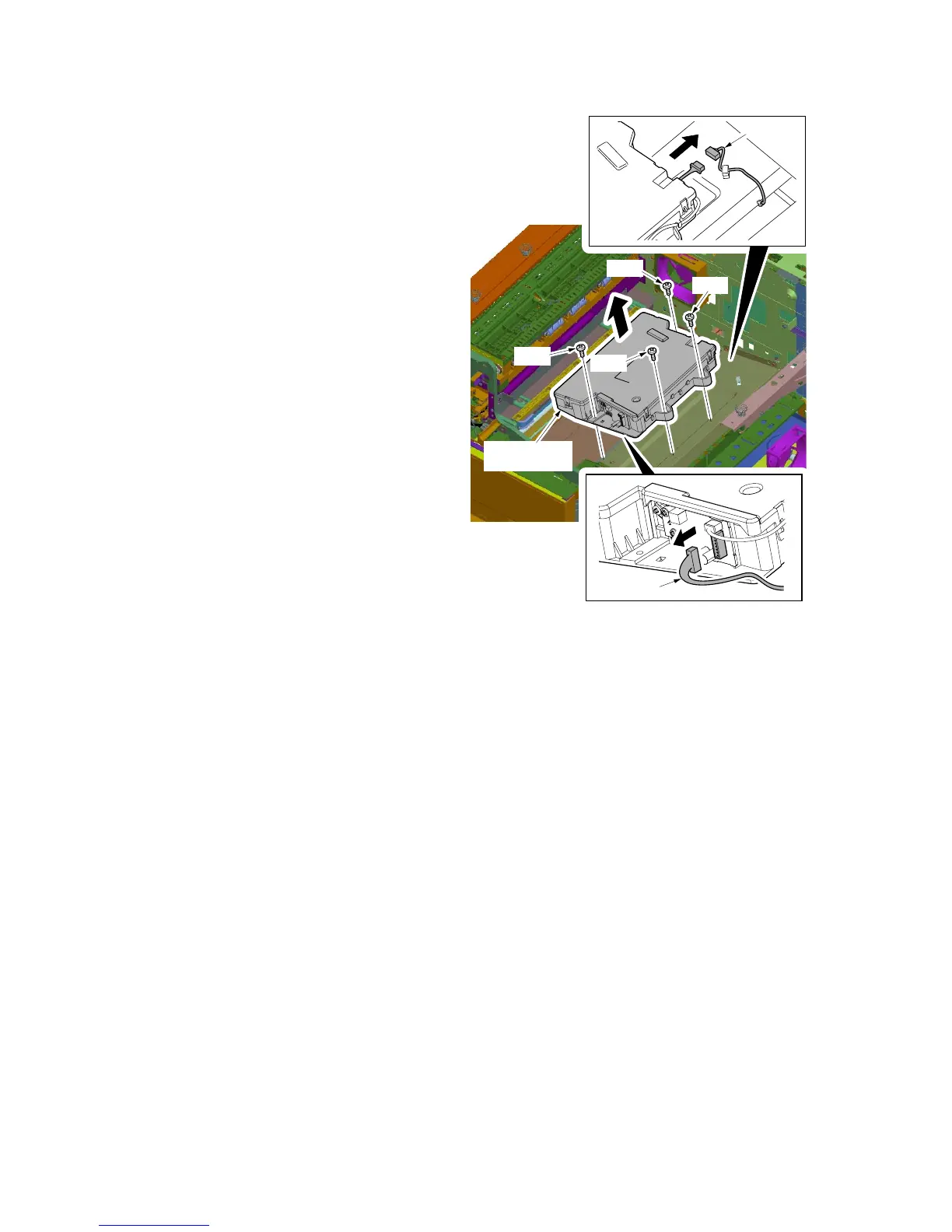

Figure 1-5-55
Screw
Connector
Connector
Screw
Screw
Laser scanner
unit
Screw
