Setting: Adjustment of front and back stapling home position
1. Select [STAPLE HP ADJ].
2. Change the setting using the +/- or numeric keys.
When staple positions are off toward the front side of the machine (sample 1), increase the preset value.
When staple positions are off toward the rear side of the machine (sample 2), decrease the preset value.

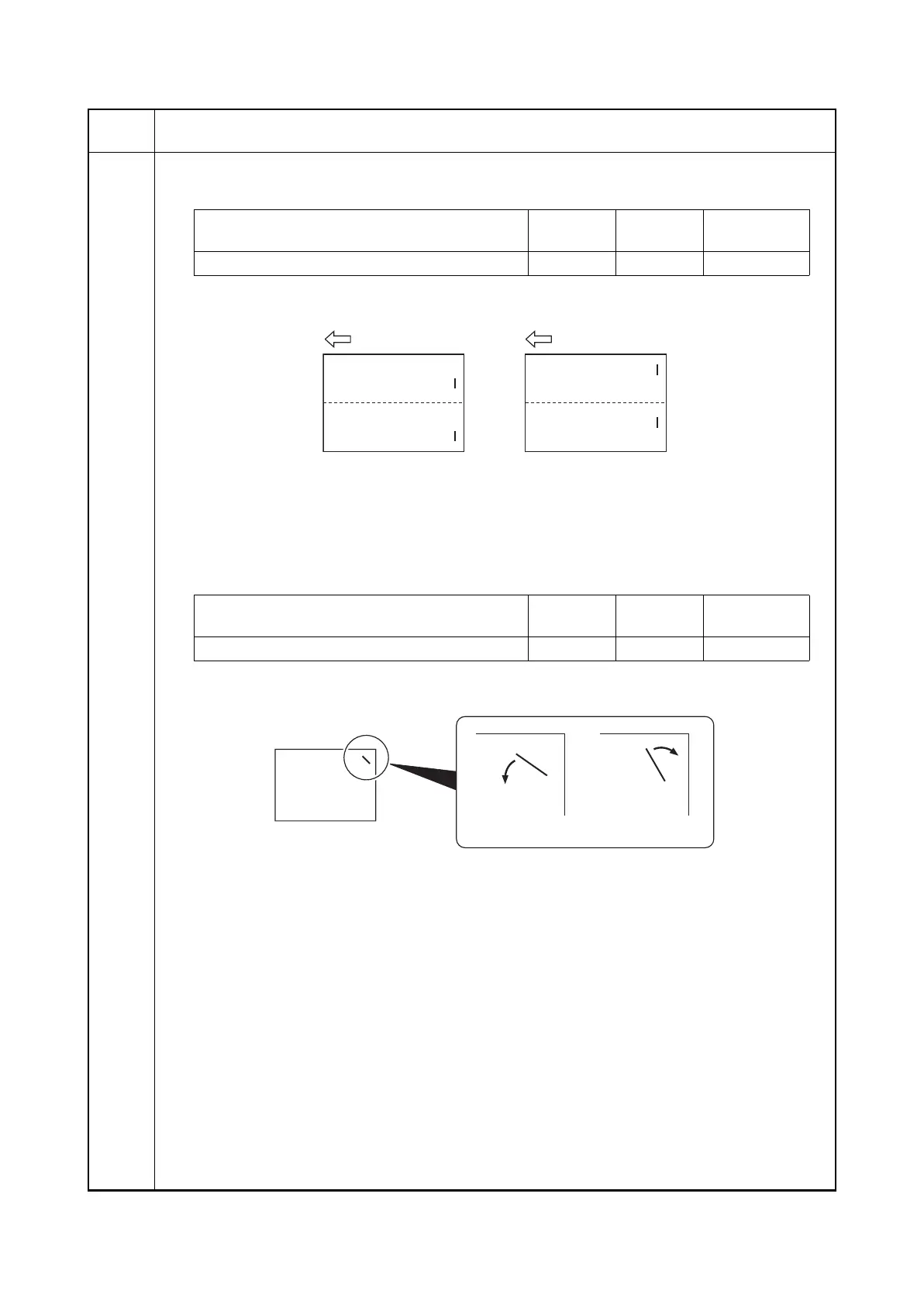

Figure 1-3-20
3. Press the start key. The value is set.
Setting: Adjustment of slanted stapling home position
1. Select [TURNED STAPLE HP ADJ].
2. Change the setting using the +/- or numeric keys.
To increase the angle for slanted stapling (sample 1), decrease the preset value. To decrease the angle
for slanted stapling (sample 2), increase the preset value.
Figure 1-3-21
3. Press the start key. The value is set.
Maintenance
item No.
Description
Description
Setting
range
Initial
setting
Change in
value per step
Adjustment of front and back stapling home position -10 to 10 0 0.32 mm
Sample 1 Sample 2
Description
Setting
range
Initial
setting
Change in
value per step
Adjustment of slanted stapling home position -10 to 10 0
0.99
°
Sample 1 Sample 2
