2KR/2KS
2-1-5
2-1-2 Optical section
The optical section consists of the scanner, mirror frame and image scanner section for scanning and the laser scanner
unit for printing.
(1) Image scanner section
The original image is illuminated by the exposure lamp (EL) and scanned by the CCD in the CCD PWB (CCDPWB) via the
three mirrors and lens, the reflected light being converted to an electrical signal. The mirror 1 and 2 frame travel to scan on
the optical rails on the front and rear of the machine to scan from side to side. The speed of the mirror 2 frame is half the
speed of the mirror 1 frame.

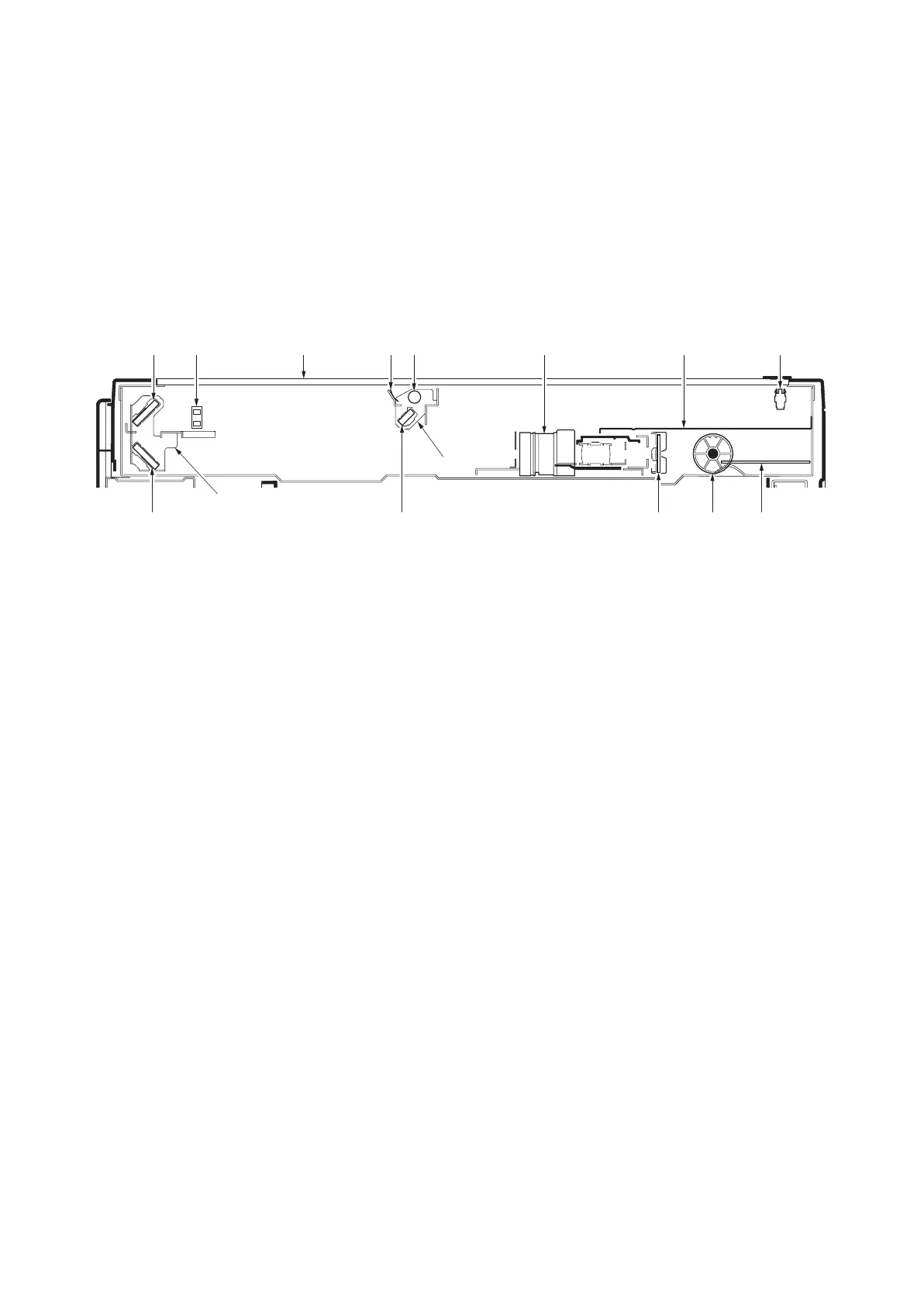

Figure 2-1-5 Image scanner section
141072136 312
911846
5
1
(1) Mirror 1 frame
(2) Exposure lamp (EL)
(3) Scanner reflector
(4) Mirror A
(5) Mirror 2 frame
(6) Mirror B
(7) ISU lens
(8) CCD PWB (CCDPWB)
(9) ISC PWB (ISCPWB)
(10) ISU cover
(11) Scanner wire drum
(12) Contact glass
(13) Home position switch (HPSW)
(14) Original detection switch (ODSW)
