Kyocera TASKalfa 420i Service Manual

2KR/2KS
2-1-3
(2) MP tray paper feed section
The MP tray can be hold up to 200 sheets of paper at one time. Paper is fed from the MP tray by the rotation of the MP for-
warding pulley and MP paper feed pulley. Also during paper feed, the MP separation pulley prevents multiple sheets from
being fed at one time by the torque limiter.

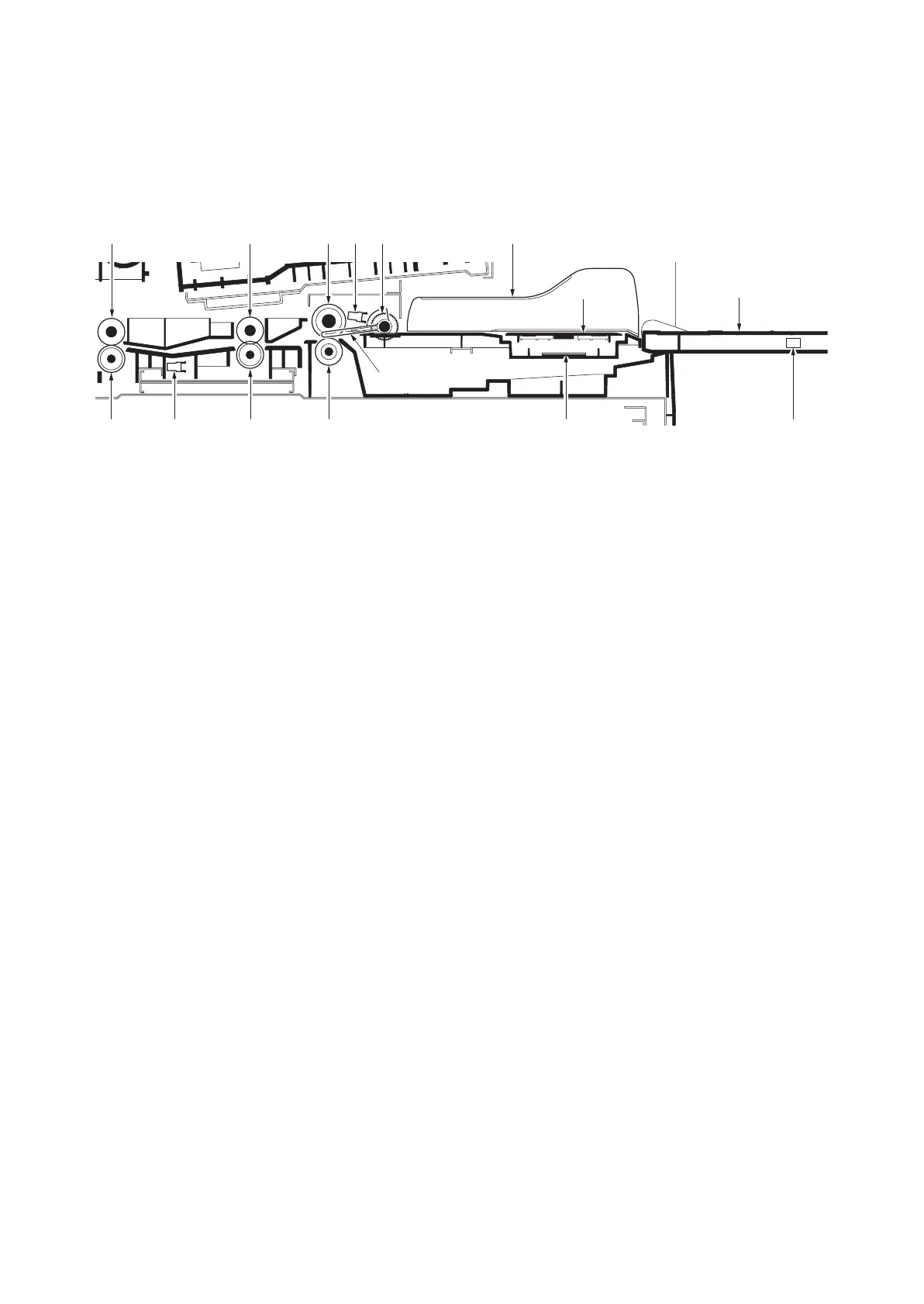

Figure 2-1-3 MP tray paper feed section
1
2
4115 38
6
14 131012
9
10
7
(1) MP tray
(2) MP lift guide
(3) Paper width guide
(4) MP forwarding pulley
(5) MP paper feed pulley
(6) MP separation pulley
(7) Paper stopper
(8) MP feed roller 1
(9) MP feed roller 2
(10) MP feed pulley
(11) MP paper switch (MPPSW)
(12) MP feed switch (MPFSW)
(13) MP paper size length switch
(MPPLSW)
(14) MP paper size width switch
(MPPWSW)

Kyocera TASKalfa 420i Specifications

General

Print Technology	Laser
Print Speed (Black)	42 ppm
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	150, 000 pages
Scan Resolution	600 x 600 dpi
Fax Speed	33.6 kbps
Operating System Compatibility	Windows, Mac OS, Linux
Functions	Print, Copy, Scan
Duplex Printing	Yes
Connectivity	Ethernet
