8.10.1.1. Replacing the main fuse
1. Switch the device off at the mains plug.
2. Disconnect the device from the power supply and pull out the main plug.
3. Pry the cover of the fuse holder and fold it to the side.

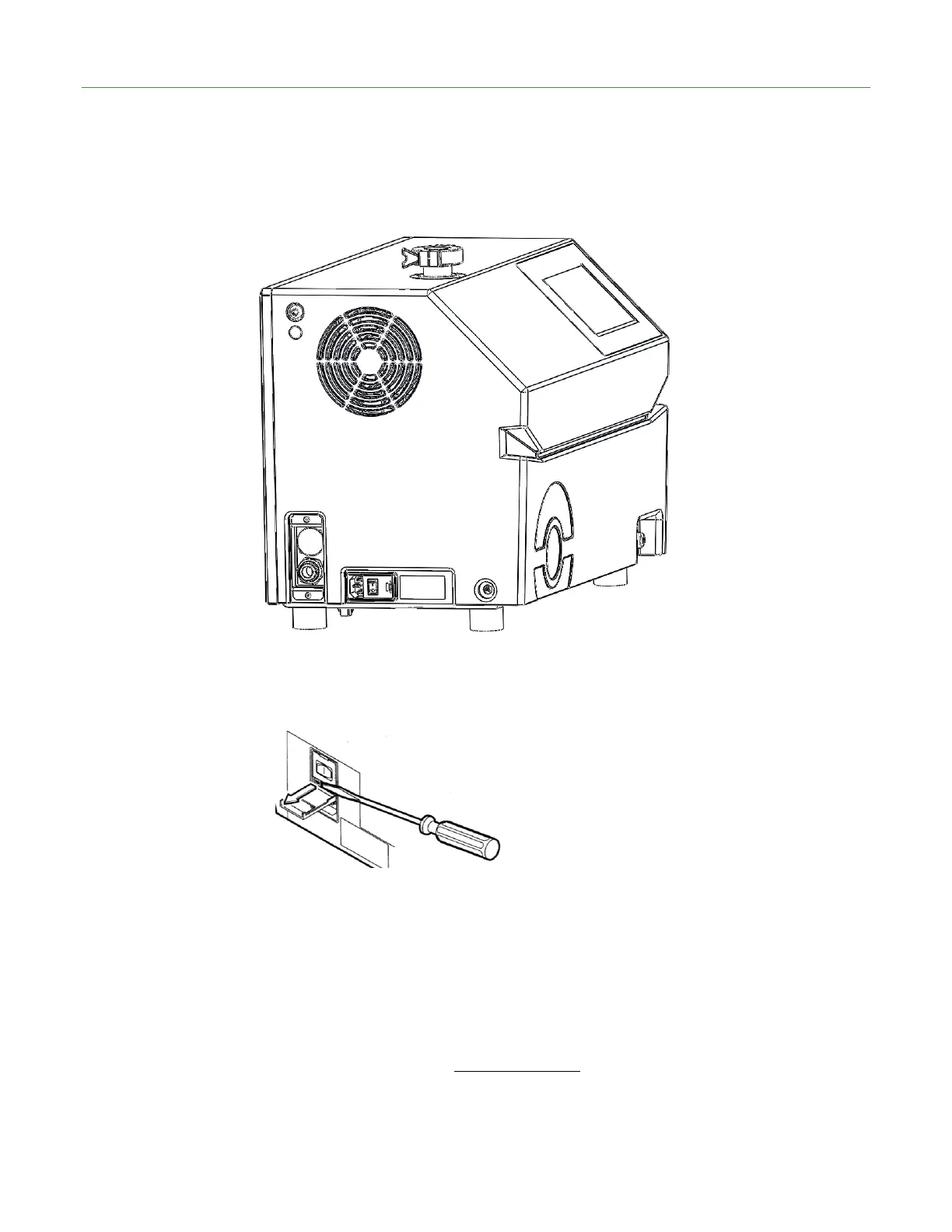

Figure 12: Replace the mains fuses.
4. Remove the two fuse holders and replace the defective fuses (10.0 AT, 250 V, Ø5 x
20 mm).
Figure 13: Replace the mains fuses.
5. Lock the fuse holders back into place.
6. Close the cover.
8.10.1.2. Replacing terminal block fuses (F1, F2, F3)
1. Turn off power to unit.
2. Remove back cover (see Removing Covers).
