8 MAINTENANCE AND SERVICE
LACO Technologies TITAN VERSA Operations and Maintenance Manual 133

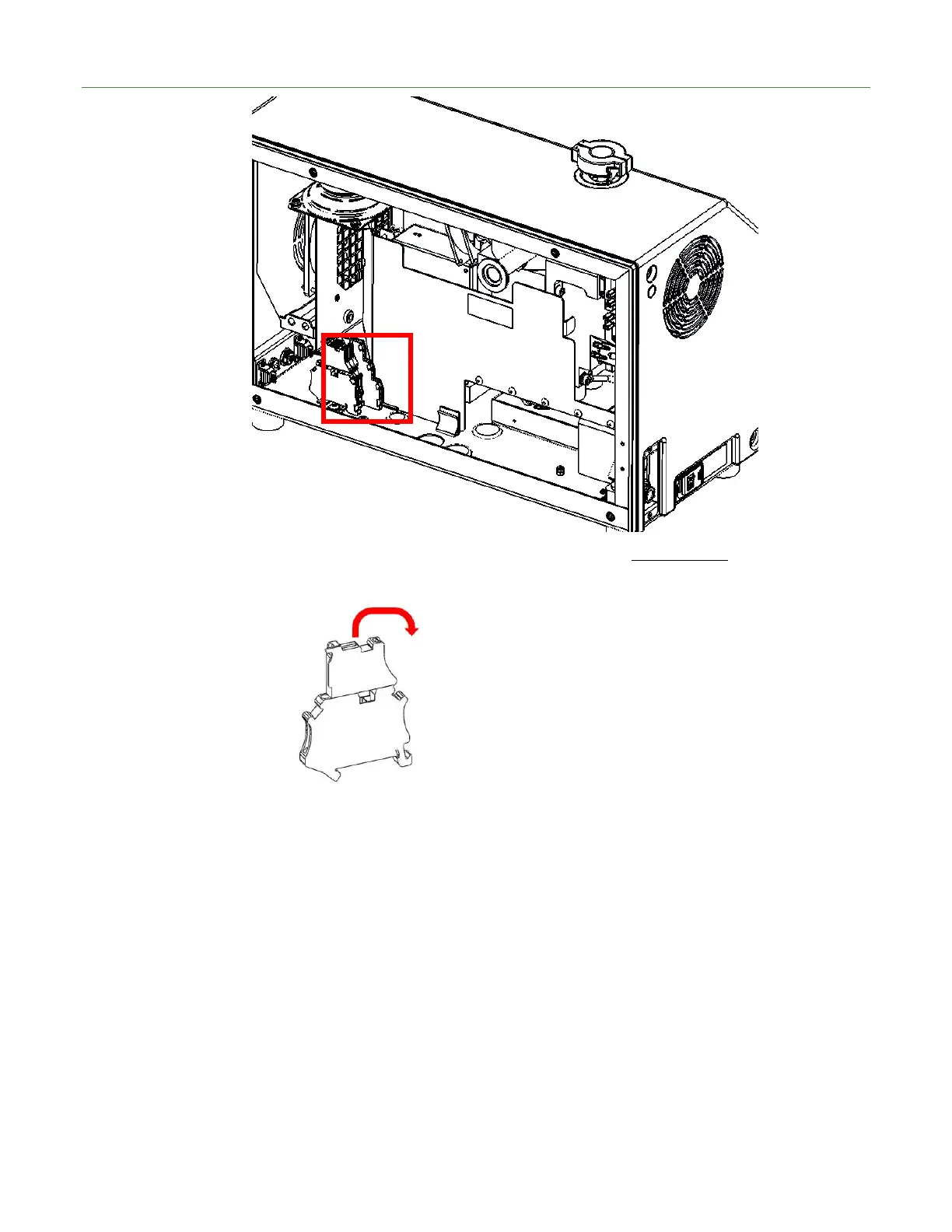

3. Locate corresponding fuse holder terminal block (see fuse table) and use hand to
swing to open position.
4. Open fuse terminal block fuse compartment to reveal defective fuse and replace
(2.0 AT, 250 V, Ø5 x 20 mm).
5. Close fuse compartment and rotate terminal block top to closed position.
