LeeBoy Model 8510E Conveyor Paver 5-11
Maintenance
Check Adjustment
1. Remove the upper walkboard grate.
2. Raise the conveyor ap eight (8) inches (20.3 cm)
from the bottom of the channel.
3. Secure conveyor ap so it remains in this position.
4. Check the conveyor switch.
5. If the switch clicked OFF, no further adjustment is
required to the upper ap.
Adjust Conveyor Switches
If the conveyor switch did not click OFF, adjustment is
needed:
1. Remove the linkage attaching the actuator arm to
the eyelet on the ap pivot housing.
2. Loosen Setscrew A on the actuator arm. (Figure
5-11)
3. Reposition this arm by either rotating it clockwise
or counterclockwise, depending upon where the
conveyor switch clicked OFF during the conveyor
ap upward travel.
4. When the switch clicks OFF, tighten setscrew and
reconnect linkage.
5. Repeat procedure for the lower ap.
If the lower ap switch did not click OFF:
1. Loosen Setscrew B. (Figure 5-11)
2. Slide the actuator arm IN or OUT to bring the travel
limits into tolerance.
3. This may require several adjustments before the
correct position is obtained.
4. When the actuator arm is in the correct position,
tighten Setscrew B.
NOTE: The factory setting is one inch (2.54 cm) from
the center of Setscrew B to the eyelet on the
actuator arm.
NOTE: The setting from the factory is 1 in. (2.54 cm)
from the center of the setscrew “B” to the
eyelet on the actuator arm.
5. To bring the travel limits into tolerance, slide the
actuator arm in the direction desired. This may
require several adjustments before the correct
position is obtained. When the actuator arm is in the
correct position, tighten setscrew “B”. No further
adjustment is necessary.
Setscrew A
Setscrew B

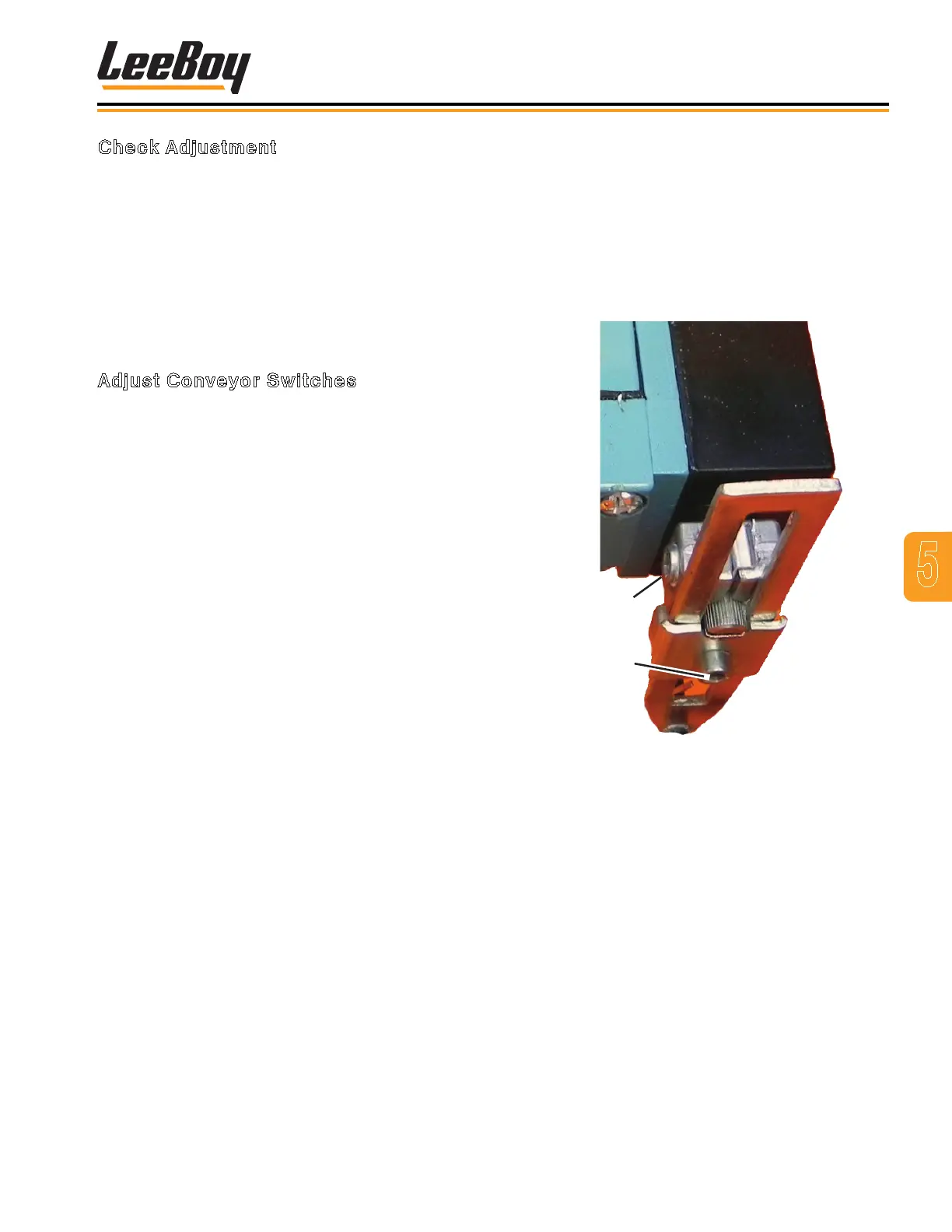

Figure 5-11. Actuator Arm - Setscrew A and B
