LeeBoy 8510E - HD Screed Extension Assembly - Left

HD SCREED EXTENSION ASSEMBLY - LEFT

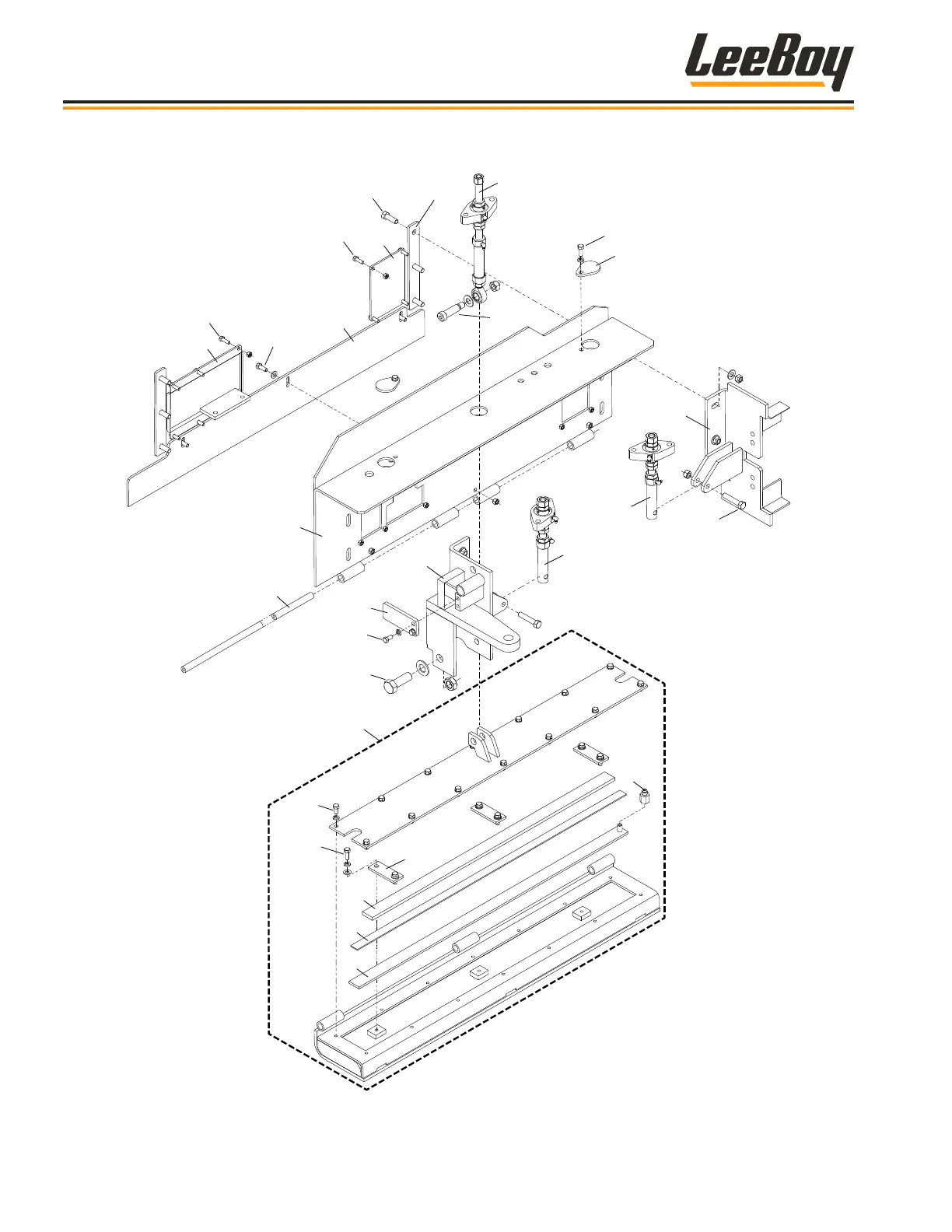

Figure 7-53. HD Screed Extension Assembly - Left
1
2
26
27,6
28,29,30
31
3
3
34
32,33
5,6
7,6,8
9
10
4
14
15,6
19
16,17,18
36,37,38 35
20
21,22
23
15,8,24
25
21,22
11
12
13
Illustrated Parts List
LeeBoy 8510E Conveyor Paver7-124
