HYDRAULIC SCHEMATIC - PROPANE HEAT (3 OF 4)
Schematic for Part # 1018972

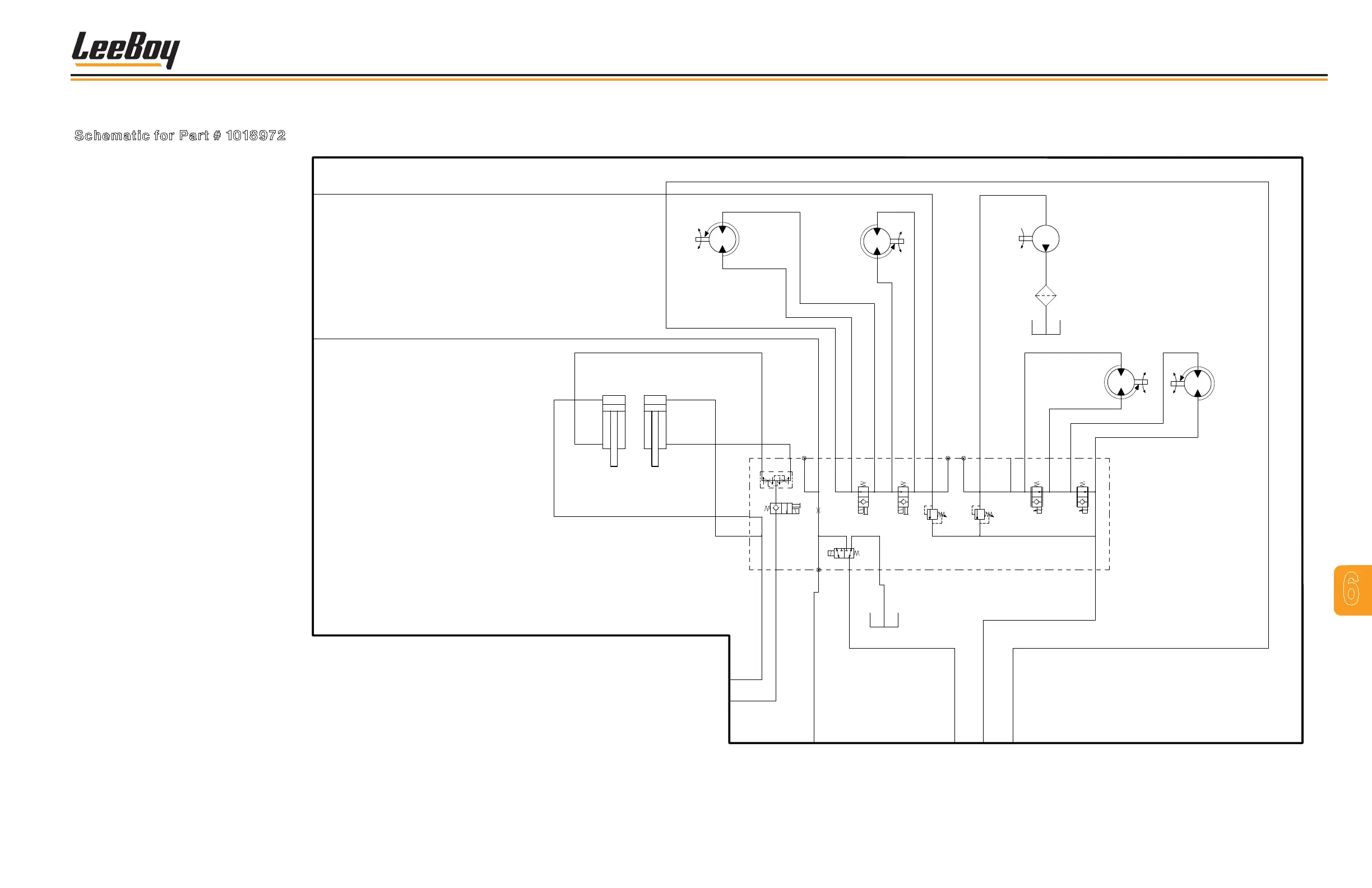

Figure 6-29. Hydraulic Schematic - Propane Heat (3 of 4)
PROPANE
HEAT
FOR HOSE NUMBERING, FIRST # IN SEQUENCE IS FOR LOW DECK. SECOND # IS FOR HIGH DECK.
3400
PSI
3400
PSI
IN
OUT
1014037
-F21#3
100 MESH, 25 GPM
EXT
RET
1014284
-C94#1
LH SCREED LIFT
EXT
RET
1014284
-C93#1
RH SCREED LIFT
OUT
IN
31.8 CC
1018244
-P15#1
.040
-M79#1
1018059
RSL
LSL
LSR RSR GP3 P3 CM LCT LC RCT RC P2 GP2 GP1 P1 RA RAT LA LAT
T1 T2
2S TT SR SL
54
1A
5
16A
16B
17B
39
4
2B
2A
8
51
41
45
44
43
42
46
17A
19
TOP TANK
TOP TANK
A
B
-M65#2
260130
LH AUGER MOTOR
22.2 in³ (364cc)
A
B
-M64#2
260130
RH AUGER MOTOR
22.2 in³ (364cc)
A
B
-M67#2
260130
LH CONVEYOR MOTOR
22.2 in³ (364cc)
A
B
-M66#2
260130
RH CONVEYOR MOTOR
22.2 in³ (364cc)
2
LeeBoy 8510E Conveyor Paver 6-59
Schematics
