4-36 LeeBoy 8510E Conveyor Paver
Operation
One-Foot Screed Extension
The 1-foot screed extensions attach to the main screed
extensions, extending paving width from 15 - 17 feet (2.1
- 5.18 m).
To attach the 1-foot extension:
1. Extend both main screed extensions.
2. Remove both endgates.
3. Install each 1-foot extension on correct side.
4. When both are installed, set wearplates at with the
main extension using the vertical lift adjusters and
AOA adjuster. (Figure 4-62)
5. Reinstall endgate.
AOA
Adjuster
Vertical
Lift
Vertical
Lift

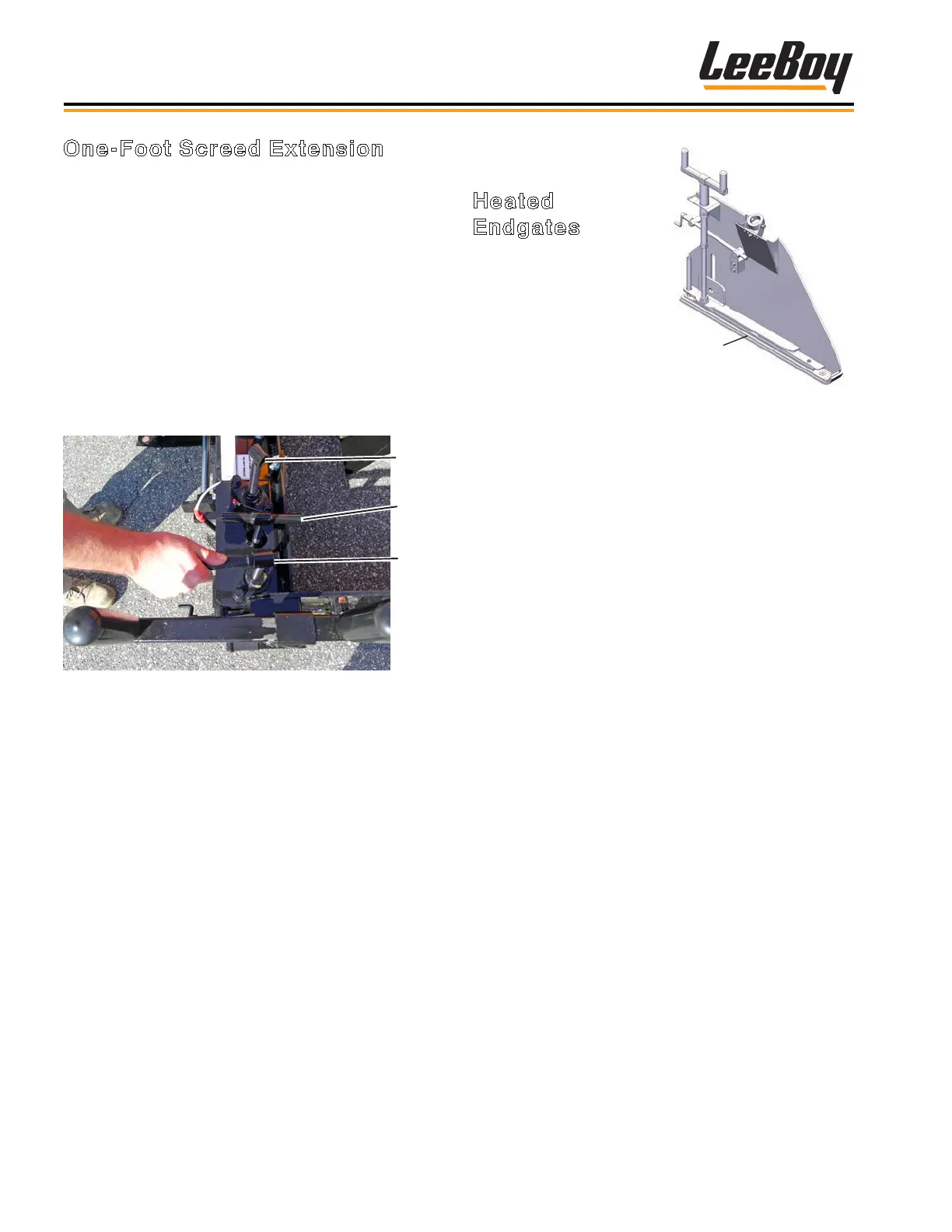

Figure 4-63. One-Foot Screed Extension
Heating
Element
Figure 4-62. Heated
Endgate
Heated
Endgates
The heated endgate
also heats the edge of
the endgate, producing
a smoother joint as you
pave. (Figure 4-63)
To operate the heated endgates:
1. Start the paver and idle until the engine reaches
normal operating temperature.
2. Raise the screed plate one or two inches off the
ground.
3. Turn the electric heat control box power ON by
turning the power switch up. (Figure 4-58)
4. Press the Start Heat button. The HEAT ON indicator
light will illuminate and stay on as long as the
element is heating (approximately 20 minutes).
5. Turn the left or right endgate switch up to the ON
position.
6. You can restart the cycle by repeating Step 4 if
needed.
