BULKHEAD TO GENERATOR HARNESS

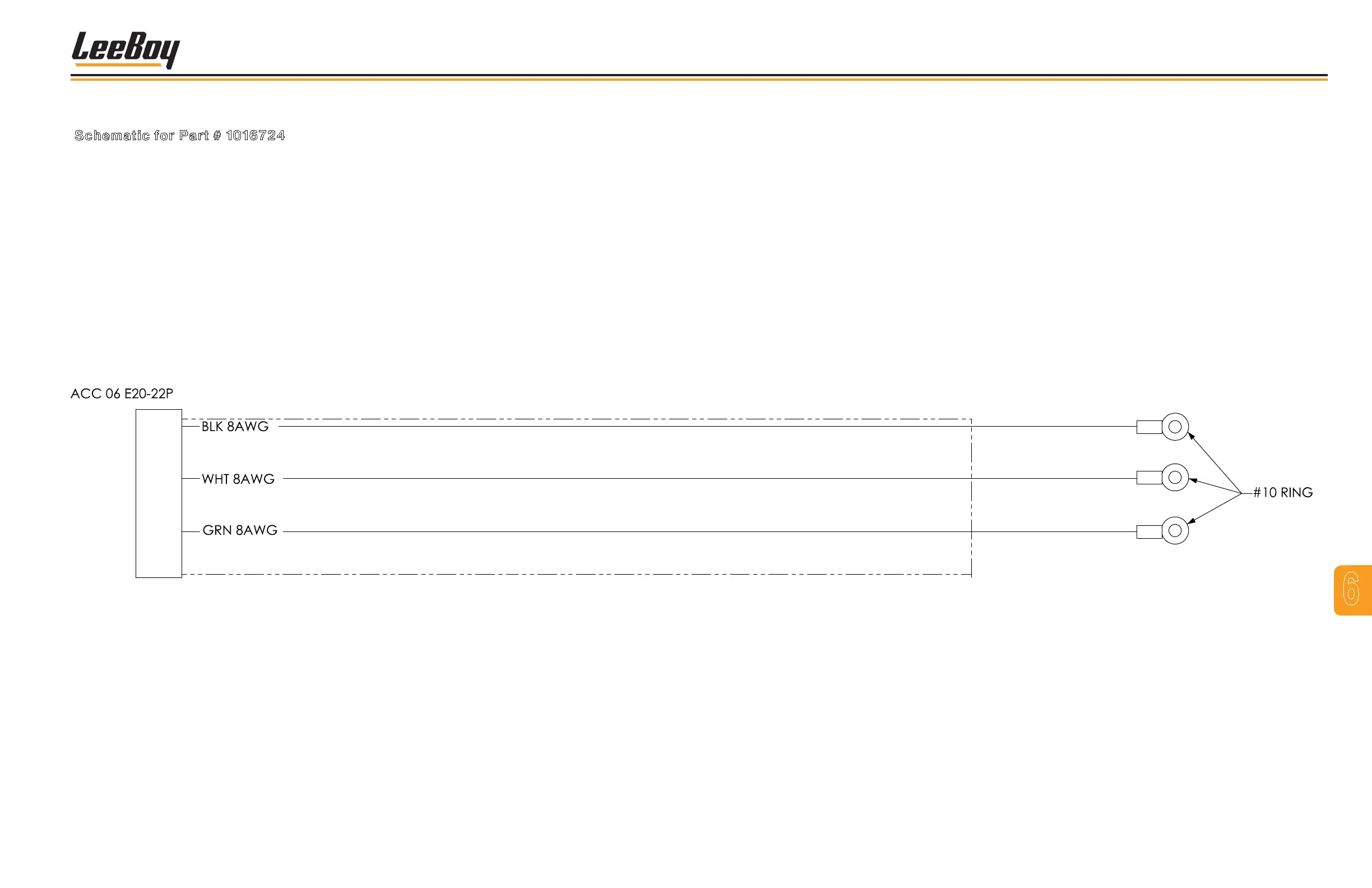

Schematic for Part # 1016724
Figure 6-12. Bulkhead to Generator Harness
TERMINAL
A
B
C
D
E
F
AMPHENOL
LeeBoy 8510E Conveyor Paver 6-25
Schematics
6
