4-26 LeeBoy 8510E Conveyor Paver
Operation
Set the Screed, Flight Screw and
Endgate
The main screed and screed extensions are heated
by heating elements and equipped with replaceable,
heavy-duty wear plates. Use the screed extensions
when paving widths exceeding eight (8) feet. (Figure
4-43) The screed extensions should be heated before
making any adjustments using the wrench provided.
When adjusted correctly, pressure on the rear edge of
the extended screed is the same as the rear edge of the
main screed, resulting in a smooth mat the length of the
screed.
You can extend or retract the screed extension using
the extension levers on the hydraulic controls. (Pages
3-8 and 3-9)
1
2
3
4
5

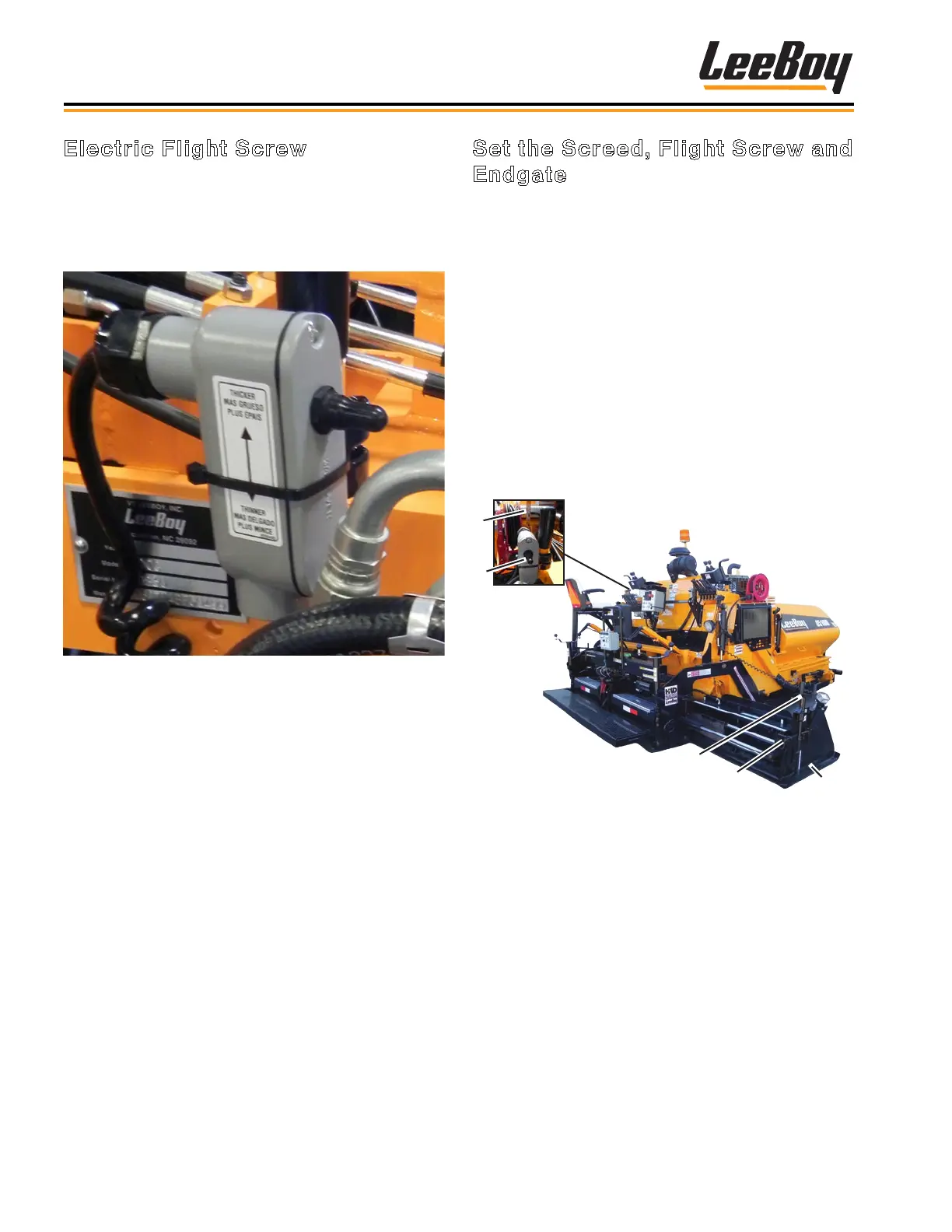

Figure 4-43. Screed, Flight Screw and Endgate
1 - Elevation Gauge
2 - Electric Flight Screw
3 - Endgate Depth Screw
4 - Endgate Tilt Screw
5 - Endgate
Electric Flight Screw
The electric ight screw is an added convenience to
the operator. (Figure 4-42) A screed height gauge
is located on both sides of the paver to provide the
operator with a quick reference to the location of the
electric screw.
Figure 4-42. Electric Flight Screw
1. Before paving, center the electric ight screws
according to the screed elevation gauge on each
side of the paver. Raise or lower until rod end of
cable is ush with “0” on decal.
2. While paving, refer to both gauges and make minor
adjustment to the screed by using the electric ight
screw.
