LeeBoy 8510E - Electric Heat (Option)

3
Leeboy Model 8510E Conveyor Paver 3-13
Component Location
Electric Heat (Option)
2
3
1
5
4

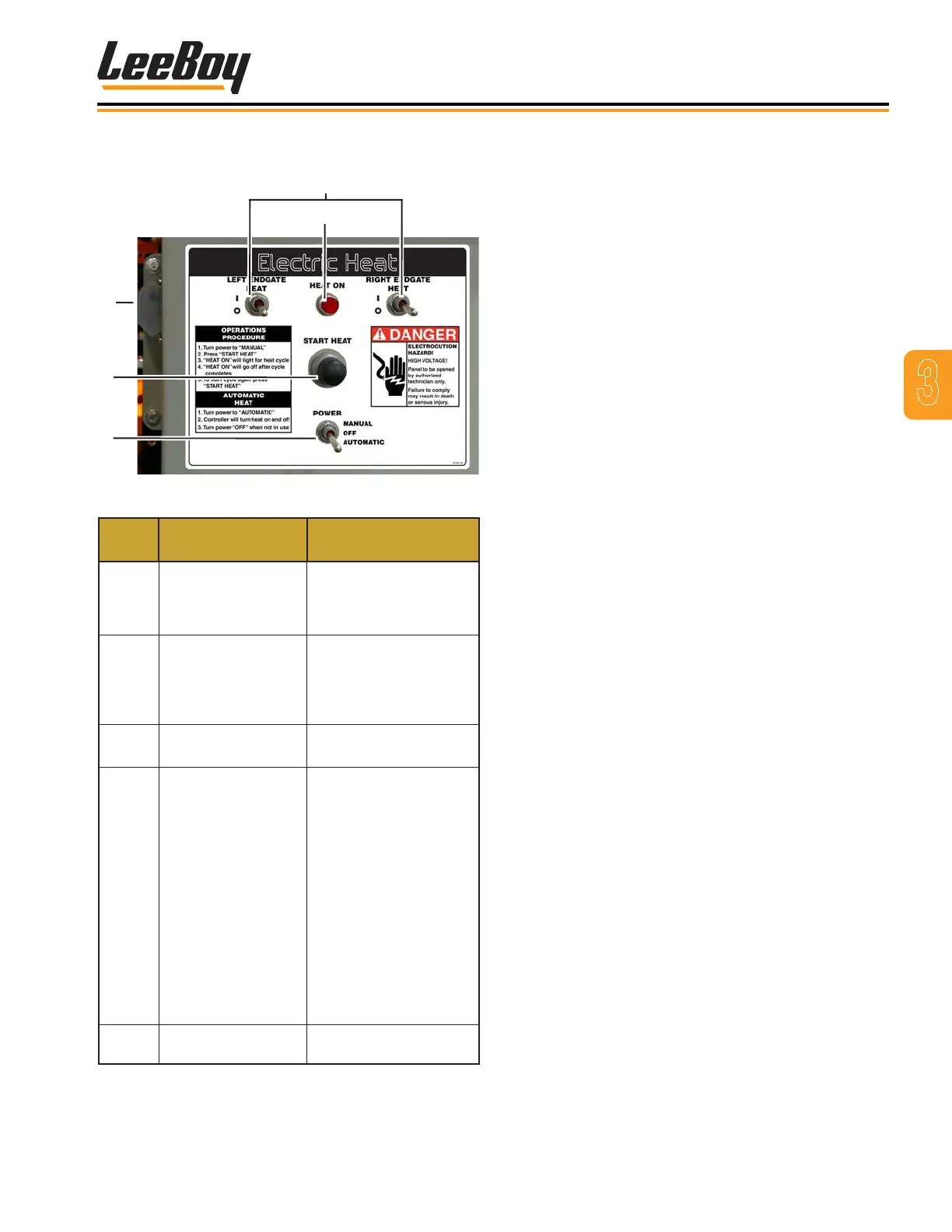

Figure 3-10. Electric Heat Controls
ITEM
NO.
CONTROL NAME FUNCTION
1
Left and Right
Endgate Switches
OPTION: These switches
do not function if not
equipped with the heated
endgate option.
2 Heat On Light
Illuminates and stays on
as long as the element
is heating the screed
plates (approximately 20
minutes).
3 Circuit Breaker
Breaker will “trip” if
electrical issue occurs.
4 Start Heat Button
After turning on the
power, press the Start
Heat button. Once the
heating function has been
enabled, the distribution/
control box will apply
electrical power to the
heating elements and
the heating cycle will
begin. The heating cycle
is timed to optimize the
heat generated at the
screed plates. Press the
button again to reheat the
screed if needed.
5 Power Switch
Turns the electric heat
system on and off.
