Leeboy Model 8510E Conveyor Paver 3-5
Component Location
Machine Overview
1
2
3
4
5
6
7
8
9
10
11
11
12
13

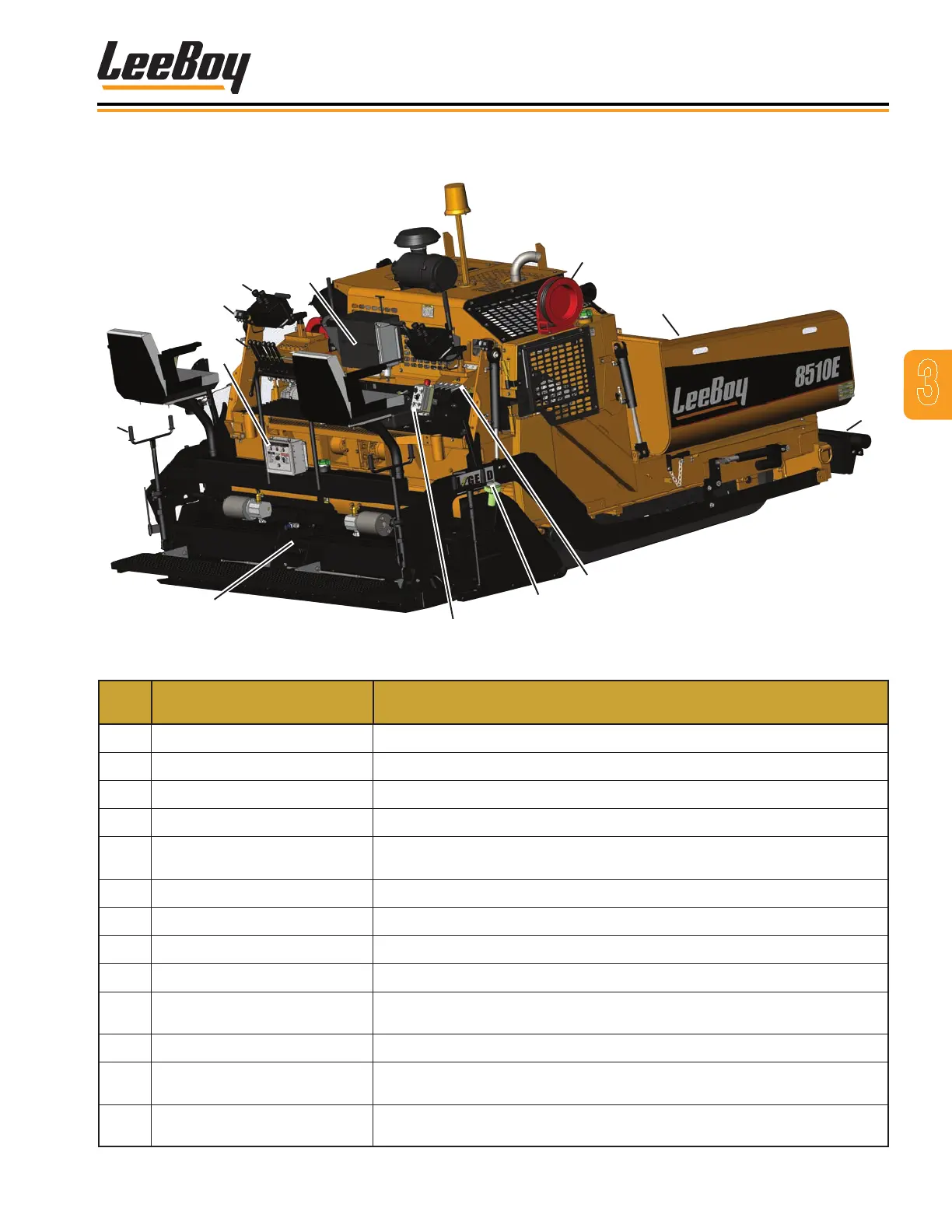

Figure 3-1. Machine Overview
ITEM
NO.
CONTROL NAME FUNCTION
1 Crown and Valley
Adjusts crown and valley while paving.
2 Main Screed Depth Screw
Controls depth of the asphalt.
3 Electric Heat (Option)
Optional electric heat element for screed and screed extensions.
4 Left Hydraulic Controls Controls for numerous hydraulic functions.
5 Auger Dial
Part of optional sonic auger system (located on each side). Turning dial
increases or decreases pile height.
6 Joysticks
Controls travel direction and speed (on each side of machine).
7 Operator Control Console
Machine and operator controls.
8 Spraydown Hose Reel
Contains hose, reel and spraydown wand.
9 Hopper
Hopper wings fold out to hold asphalt material.
10 Adjustable Push Rollers
Manually height adjustment for asphalt truck connection with scrapers to
help prevent asphalt build-up.
11 Right Hydraulic Controls
Controls for numerous hydraulic functions.
12 Sonic Auger Sensor
Sensors automatically gauge and regulate material ow to screed
extensions.
13
6-Function Remote Screed
Control Box
Screed control box on each side features six different screed control
functions for screed operator convenience while paving.
