LeeBoy 8510E - Lubrication Points

55
LeeBoy Model 8510E Conveyor Paver 5-7
Maintenance
Lubrication Points
Proper lubrication is necessary to maintain the LeeBoy Model 8510E Conveyor Paver at top efciency. Refer to the
lubrication information below:
1
2
3
4
7
8
9
(Under Conveyor Deck)
10
11
6
12
13
14
5
5

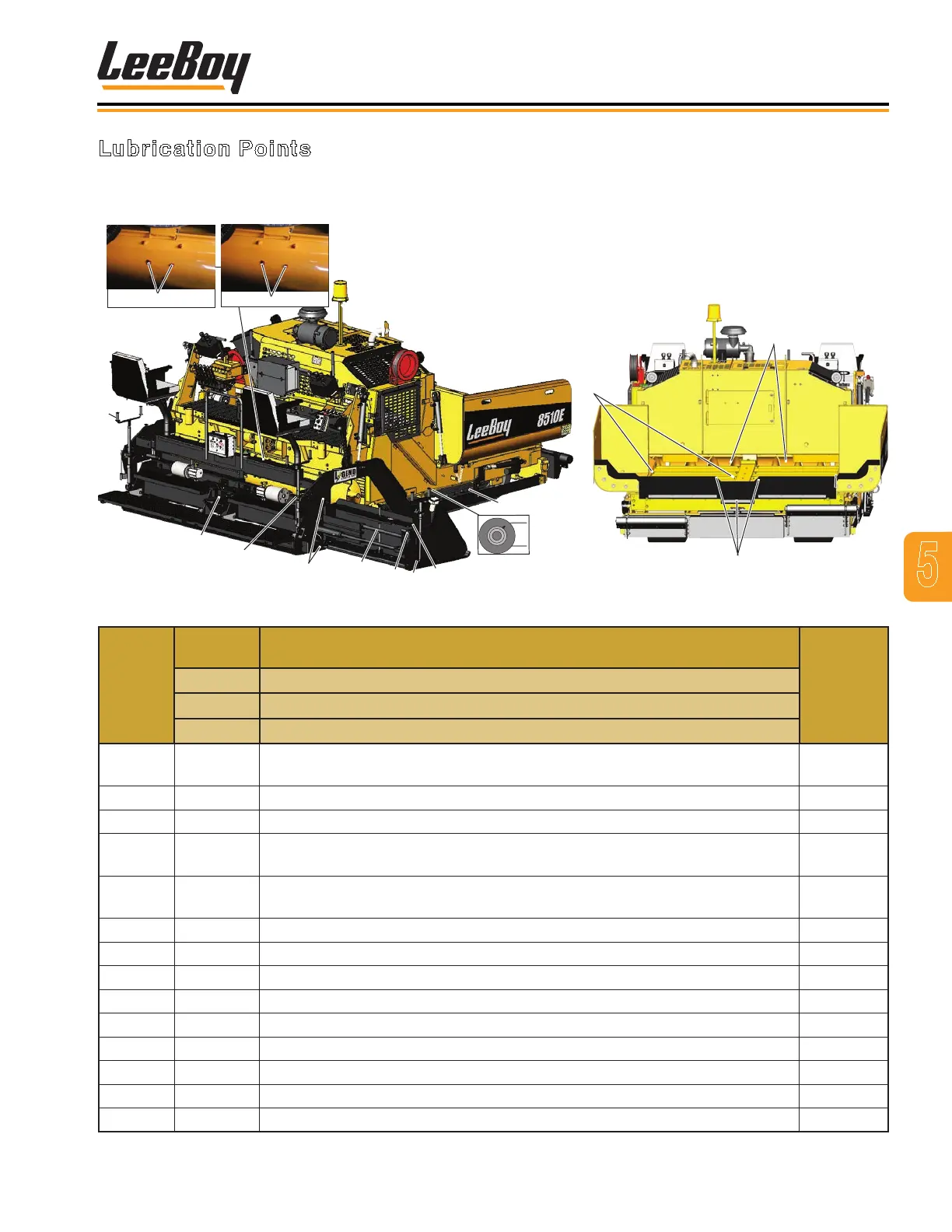

Table 5-2. Lubrication Points Schedule
ITEM
NO.
TYPE
LUBE
DESCRIPTION AND LOCATION
INTERVAL
A Grease With Shell Avania EP Grease 2 or Equivalent
B Spray with Release or Chain Lube Agent
C Spray with Copper-Based Anti-Seize Agent
1 A
Depth screw (both sides). Grease rst in locked position, unlock, and turn
180° to grease.
Weekly
2 B Screed crown on chain. Weekly
3 A Slope cylinder pivot. Weekly
4 A
Flange bearing and tting on ight screw and ange bearing on T-handle of
extensions (both sides).
Weekly
5 A
Grease ttings for auger inner bearings and end mounts. There are two
ttings in the center and one on each end of the auger cover.
Daily
6 C Screed extension slide bars (both sides). Weekly
7 A Tilt screws (both sides). Weekly
8 A Screed pivot. Weekly
9 A All screws and bearings on screed extensions (both sides). Weekly
10 A Conveyor pivot (under conveyor deck) on front of screed (both sides). Monthly
11 B Grease tracks between track pads daily for efcient operation. Daily
12 B Conveyor chains (both conveyors). Daily
13 B Auger (and auger chains). Daily
14 B Spray all parts of paver that come into contact with asphalt. Daily
