LeeBoy Model 8510E Conveyor Paver 5-15
Maintenance
Tighten the fuel lter as directed on by
the lter manufacturer. DO NOT overtighten the fuel
lter element onto the lter head.
Explosion Hazard! Stop the engine
immediately if any fuel leakage is noted. DO NOT
start the engine until the leak has been corrected.
Replace the fuel lter using the following general
procedure.
1. Stop the engine and allow it to cool.
2. Put a container under the lter before removing it.
3. Wipe the area around the fuel lter and mounting
head using a clean, lint-free cloth.
4. Use a lter removal wrench to loosen and remove
the lter by turning it clockwise. (Figure 5-17)
Filters
Engine

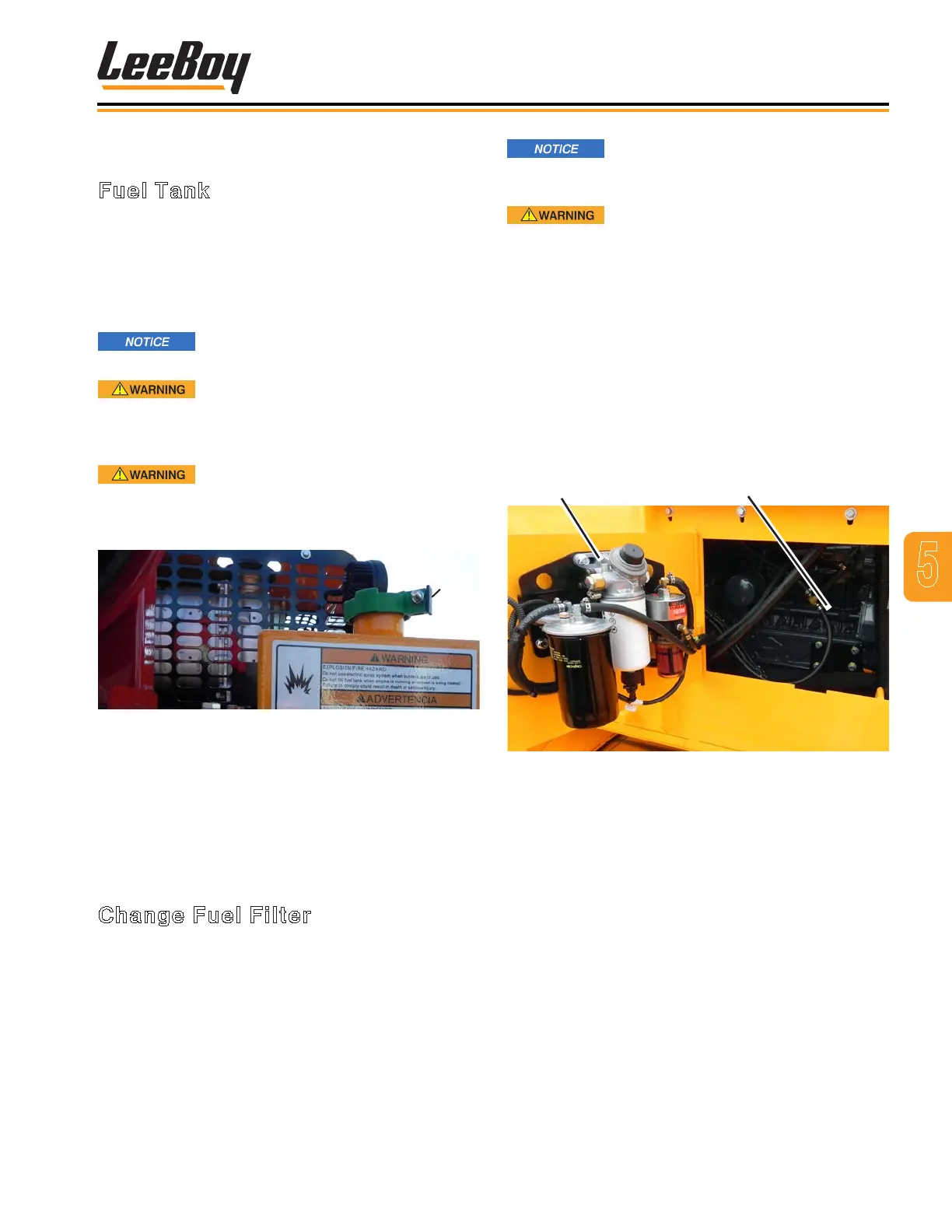

Figure 5-17. Fuel Filters, Pump and Water Separator
1 - Fuel Filter
2 - Fuel/Water Separator
3 - Fuel Pump w/Bowl Filter
5. Drain and discard the removed lter in compliance
with local and federal environmental laws.
6. Wipe inside the lter head with a clean, lint-free
cloth.
NOTE: DO NOT use a can or other container to ll
fuel lter to prevent contamination. The lter
will be lled via electric lift pump or manual
pump on the fuel water separator.
7. Wipe a little fuel on the rubber gasket.
8. Install the new fuel lter element onto the lter head,
carefully tightening the element by hand.
9. Start the engine and check for any fuel leaks.
Fuel System
Fuel Tank
The fuel level is indicated on the digital display fuel
gauge. Use only ULSD (ultra low sulfer diesel) fuel and
always ll the fuel tank at the end of the work day to
prevent condensation. The green fuel cap is located on
the right side of the paver in front of the spraydown hose
reel. (Figure 5-16)
Fill up with low-sulfer diesel fuel at the
end of the day to reduce condensation in the tank.
Diesel fuel is highly FLAMMABLE.
DO NOT smoke while lling the fuel tank. Fill the
fuel tank in a designated area that provides proper
ventilation with a re extinguisher available.
Explosion Hazard! Never ll the fuel
tank near an open ame, or near equipment that can
create sparks. Never check fuel level or fuel system
components near an open ame.
Fuel
Cap
Figure 5-16. Fuel Cap
To ll the fuel tank:
1. Stop engine.
2. Remove fuel cap from fuel tank.
3. Fill with diesel fuel until full.
4. Replace fuel cap.
Change Fuel Filter
The fuel lter, water separator and fuel pump with bowl
lter are conveniently located together on the engine
access door in the hopper. (Figure 5-17)
NOTE: The fuel lter is a 1-micron lter that can
ONLY be purchased from LeeBoy or Kubota
engine dealers. Using any other fuel lter will
cause fuel system failure/damage, and will
void the warranty.
