LeeBoy 8510E - Screed Operation Controls

3-10 Leeboy Model 8510E Conveyor Paver
Component Location
Screed Operation Controls
1
2
3
4
5
6
7

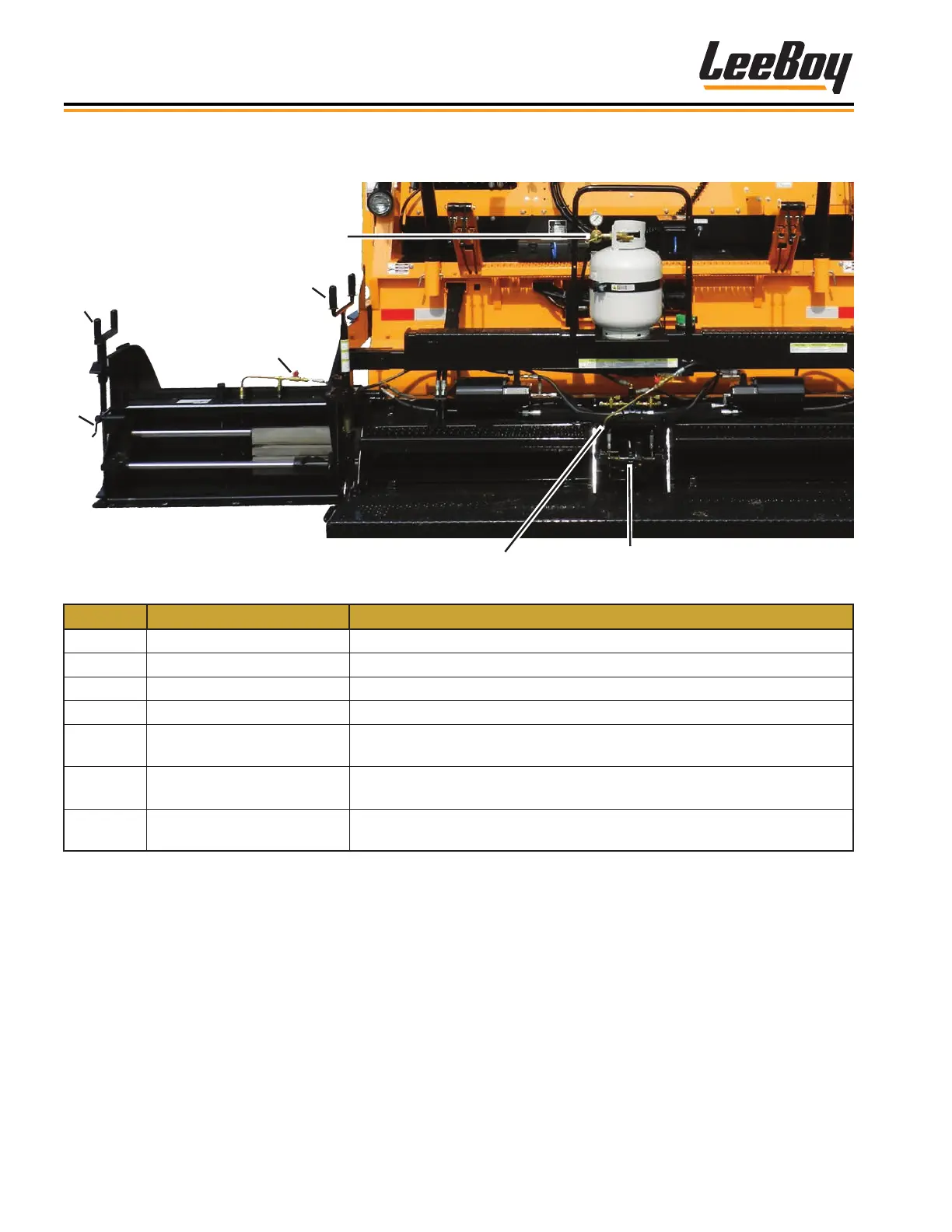

Figure 3-6. Screed Controls
ITEM NO. CONTROL NAME FUNCTION
1 Tilt Screw Adjusts the tilt of the end gate.
2 Endgate Depth Screw Controls the depth of the end gate.
3 Screed Extension Burner Ignites and heats the screed extension.
4 Flight Screw Controls the depth of the asphalt.
5
Propane Tank Controls and
Pressure Gauge
Controls for the propane gas tank and gas pressure gauge.
6
Main Screed Propane Heat
Ignitor
Ignites and heats the main screed and extensions.
7 Crown and Valley
Adjusts for positive crown or negative valley in wear plate.
