LeeBoy Model 8510E Conveyor Paver 5-31
Maintenance
Screed Extension Wear Plate
1. Extend the screed completely.
2. Remove the endgate by removing the tilt screw and
nut on each side of the tilt screw. The endgate will
tilt forward and slide off the bolt.
3. Disconnect the extension AOA adjuster (Figure
5-42) on top of the wear plate by removing locknut,
washer and shoulder bolt.
4. Remove the three bolts holding the front extension
hinge shield.
NOTE: If equipped with electric screed heat option,
remove all wiring and heating elements.
5. Carefully slide the hinge pin out. The wear plate will
disconnect and fall to the ground.
6. Hold the new wear plate in place and slide the hinge
pin back into place.
7. Fasten the AOA adjuster back to the wear plate with
locknut, washer and shoulder bolt.
NOTE: Reinstall all wiring and heating elements if
equipped with electric screed heat option.
8. Reinstall the front hinge shield.
9. Reinstall the endgate and tilt screw.
Pivot Pin
Shoulder
Bolt and Nut
Hinge
Shield
AOA
Adjuster
AOA
Adjuster
Hinge
Shield
Bolts

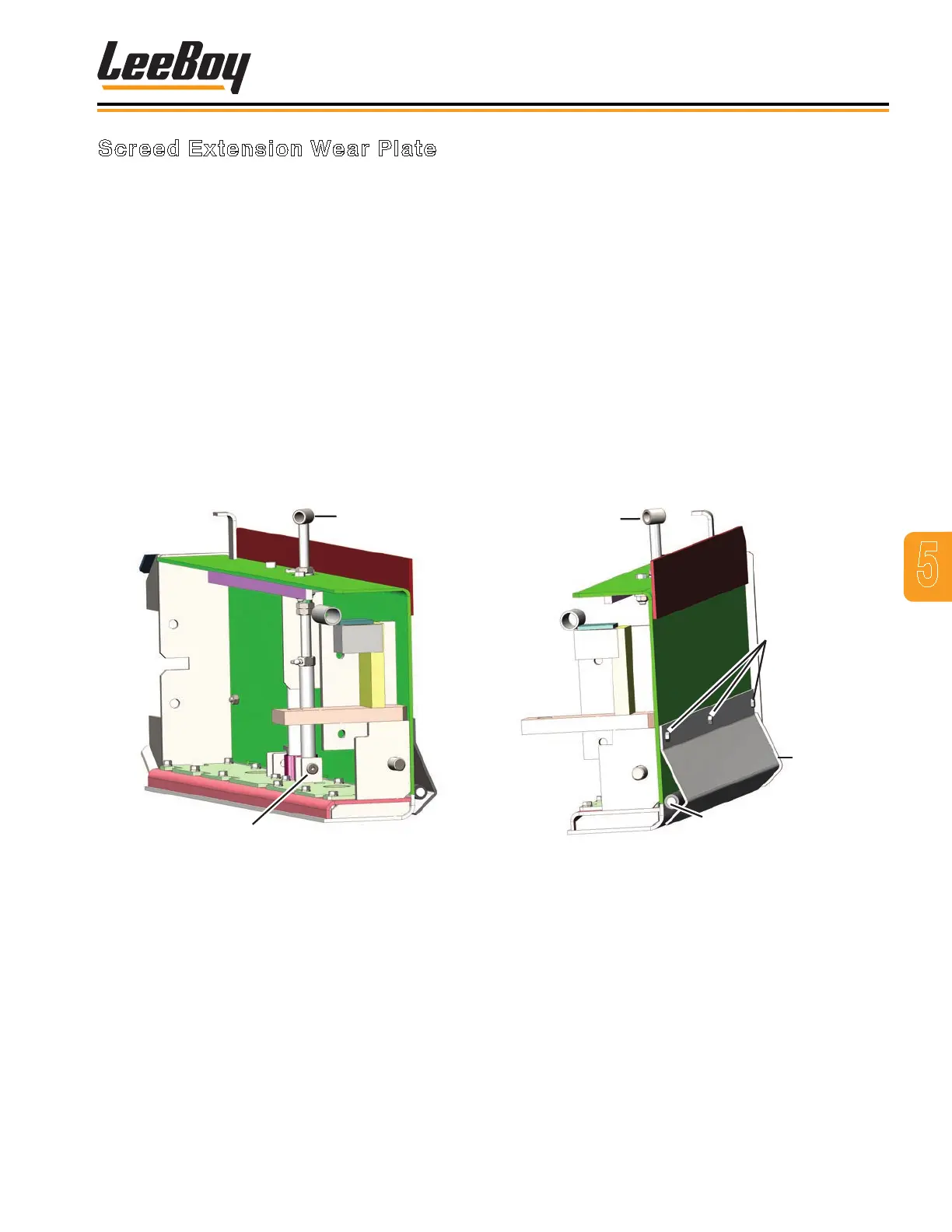

Figure 5-42 Wear Plate Replacement
