LeeBoy 8510E - Burner Controls; Propane Tank Controls

3
Leeboy Model 8510E Conveyor Paver 3-11
Component Location
Propane Tank Controls
1
2
3

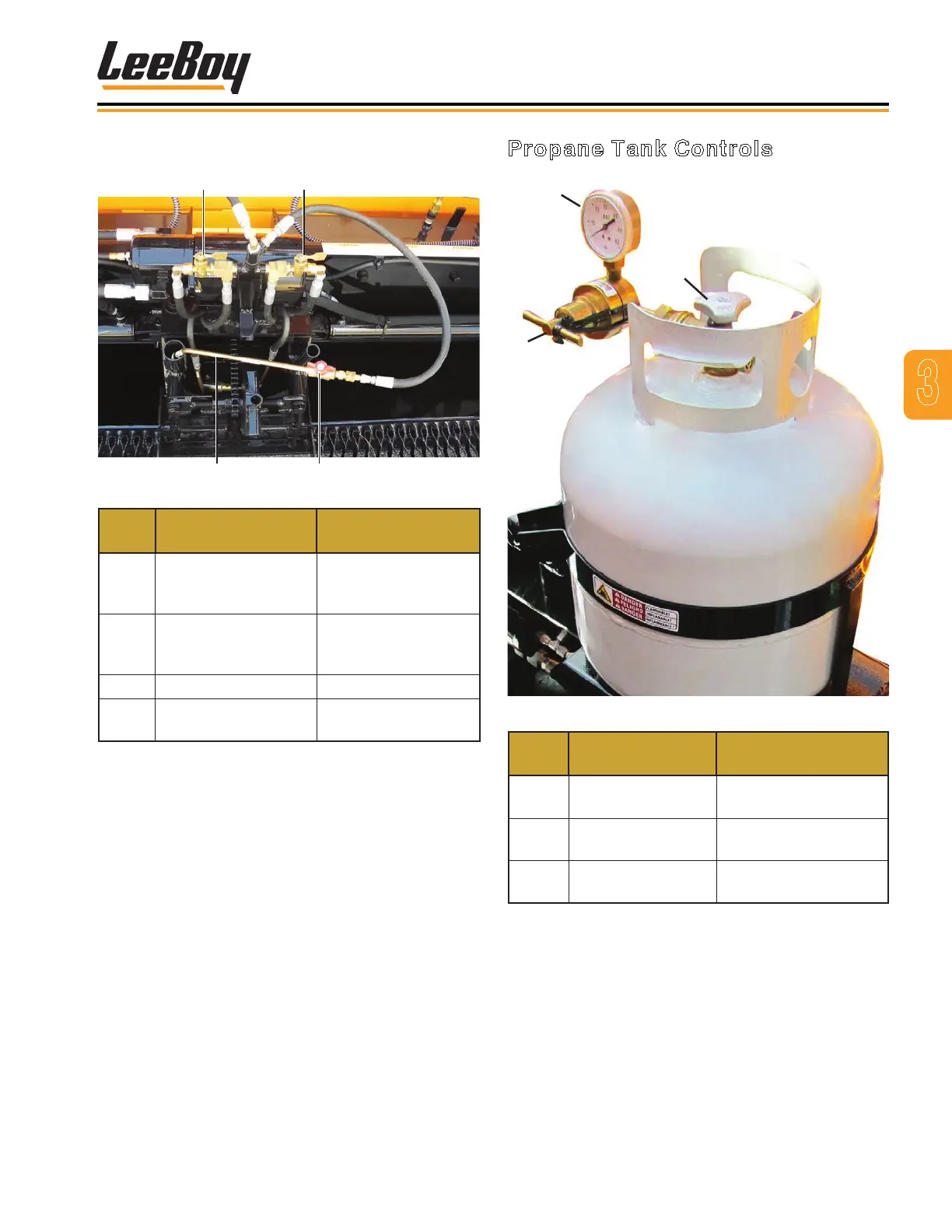

Figure 3-8. Propane Tank Controls
ITEM
NO.
CONTROL NAME FUNCTION
1
Propane Pressure
Regulator Valve
Regulates propane line
pressure.
2
Propane Pressure
Regulator Gauge
Indicates propane line
pressure.
3
Propane Tank
Open/Close Valve
Opens and closes
propane pressure.
Burner Controls
1
34
2
Figure 3-7. Main Screed Burner Controls
ITEM
NO.
CONTROL NAME FUNCTION
1 Left Burner Valve
Controls ow of pro-
pane to left screed
burner.
2 Right Burner Valve
Controls ow of pro-
pane to right screed
burner.
3 Burner Ignitor Used to light burners.
4 Burner Ignitor Valve
Controls ow of pro-
pane to ignitor.
