Leeboy Model 8510E Conveyor Paver 3-9
Component Location
Right Hydraulic Controls
1
2
3
4 5

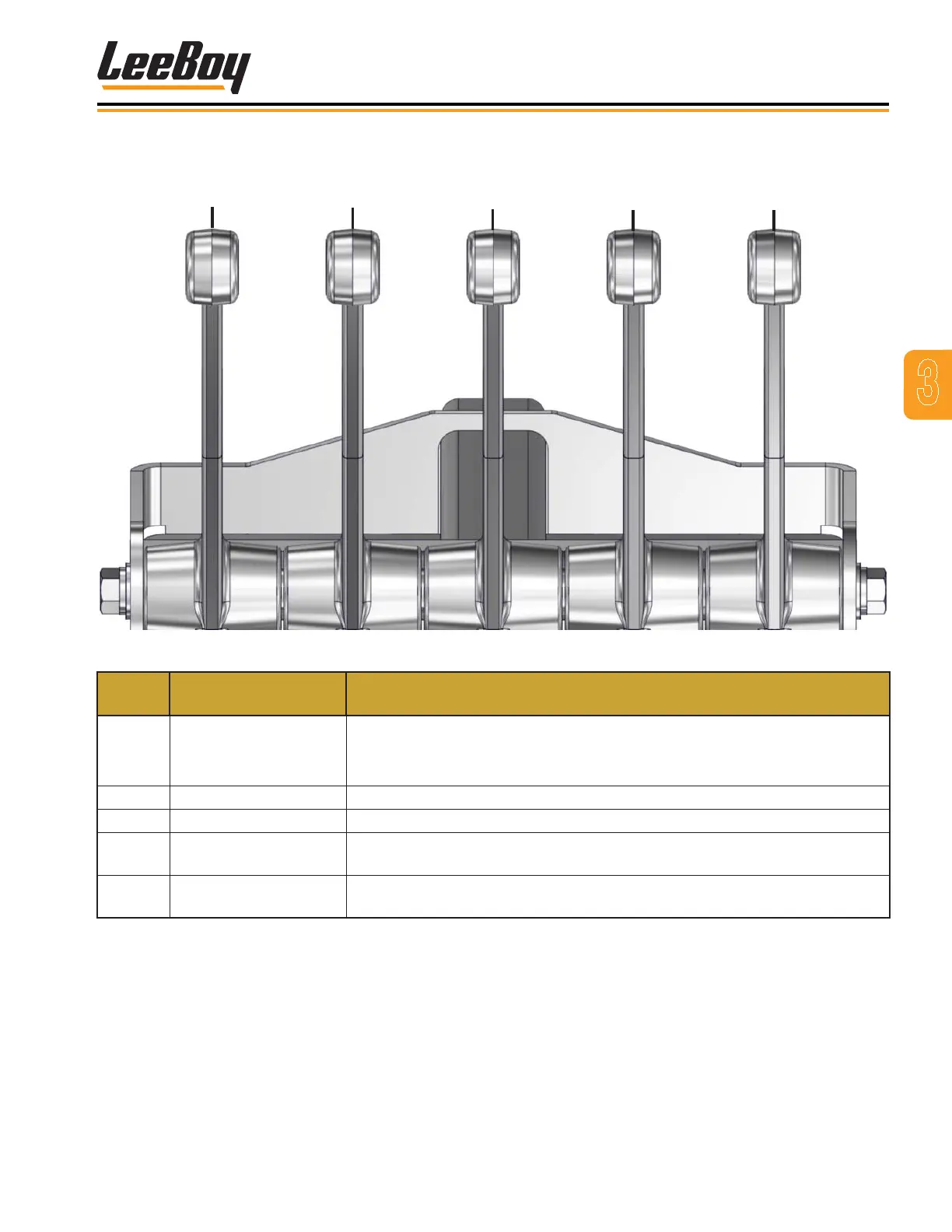

Figure 3-4. Right Hydraulic Controls
ITEM
NO.
CONTROL NAME FUNCTION
1 Screed Float Lever
Raises or oats the screed. Push lever up to lower screed into the oat
position (locks into oat). Push the lever up again to raise the screed.
NOTE: Screed must be in the FLOAT position when paving.
2 Left Cut-Off Lever Opens (push up) and closes (push down) left cut-off gate.
3 Right Cut-Off Lever Opens (push up) and closes (push down) right cut-off gate.
4 Side Wings Lever
Opens and closes hopper wings. Push the lever to fold in hopper wings. Push
the lever down to open hopper wings.
5 Right Extension Lever
Retracts and extends the right screed extension. Push lever down to extend
screed extension. Push lever up to retract screed extension.
