4-22 LeeBoy 8510E Conveyor Paver
Operation
1
2
3

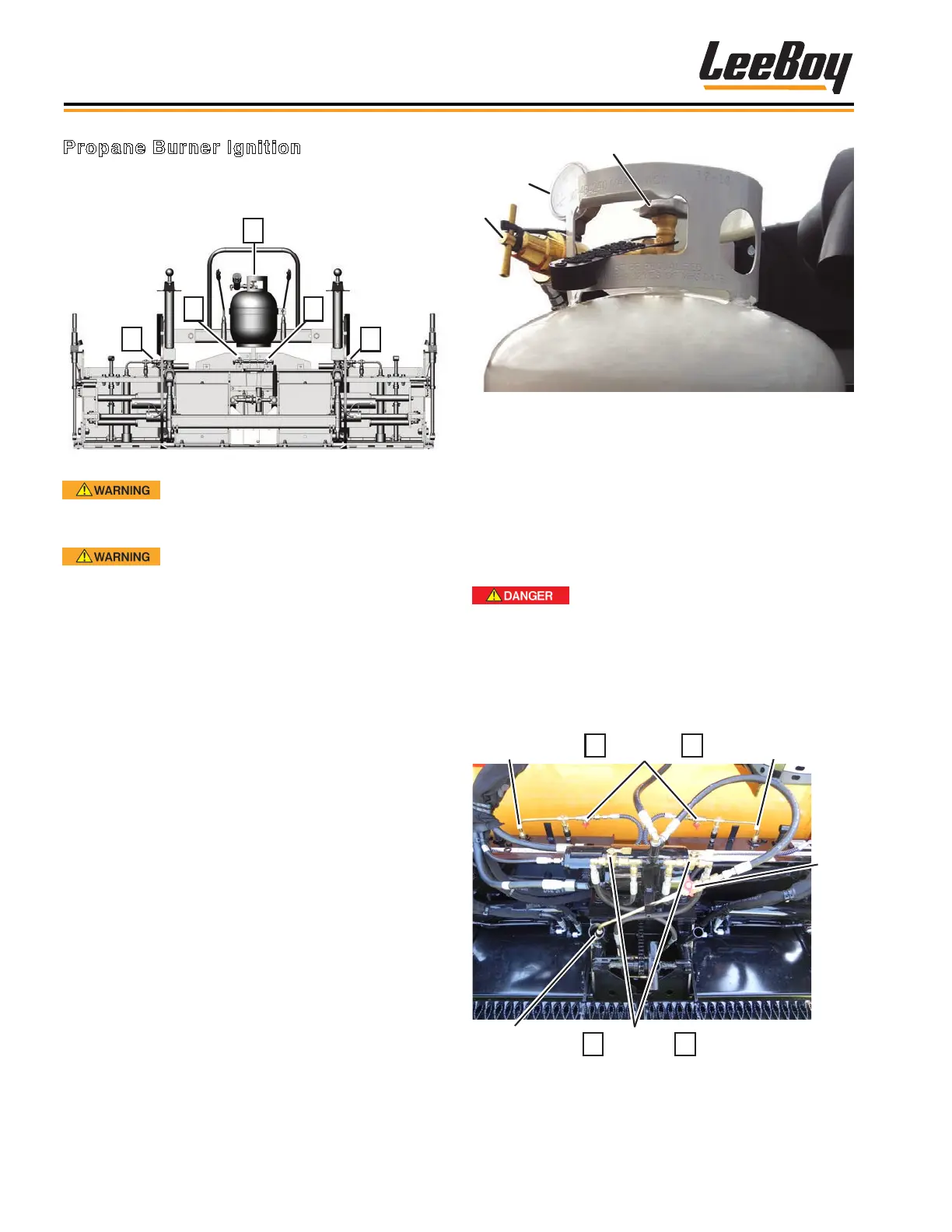

Figure 4-35. Propane Tank With Regulator
1 - Pressure Regulator Valve
2 - Pressure Regulator Gauge
3 - Open/Close Valve
3. Remove the main ignitor wand from its cradle
and turn its valve counterclockwise to the OPEN
position, then light the ignitor end using a torch
striker. (Figure 4-36)
NEVER use a match or other source of
ame to light the ignitor for the burner.
4. Holding the lit ignitor wand in one hand beside
the burner you are going to light, turn on the main
burner valve and light the that burner just below the
valve, then repeat with the other side. (Figure 4-36)
Extension
Ignitor
Extension
Ignitor
Extension
Ignitor Valves
Main
Ignitor
Main Burner
Valves
Main
Ignitor
Valve
2 3
4 5
Figure 4-36. Screed Burner Valves
Propane Burner Ignition
IT IS IMPORTANT TO OPEN PROPANE VALVES IN
THE ORDER SHOWN BELOW. (Figure 4-34)
1
2 3
4
5
Figure 4-34. Propane Valve Order
Never open a valve to a burner unless
ame is present. A buildup of unburned gas could
result in a gas explosion.
Propane gas used to heat the screed
is volatile and combustible. Use extreme care to
prevent burns or other injury.
To light the burners:
1. Ensure ALL propane heat valves are closed by
turning valves clockwise (propane tank, main burner
valves, main ignitor valve, extension ignitor valves).
(Figures 4-34 and 4-36)
2. Turn the propane tank Open/Close valve
counterclockwise to open the propane gas ow.
(Figure 4-35)
