5-4 LeeBoy Model 8510E Conveyor Paver
Maintenance
3. Grasp top of the side wing with one hand and the
handle with the other, and carefully pull out ve to
six inches (13-15 cm). Then pull bottom handle out
until the side wing folds out from the bottom hinge.
(Figure 5-3) Repeat for the other side.

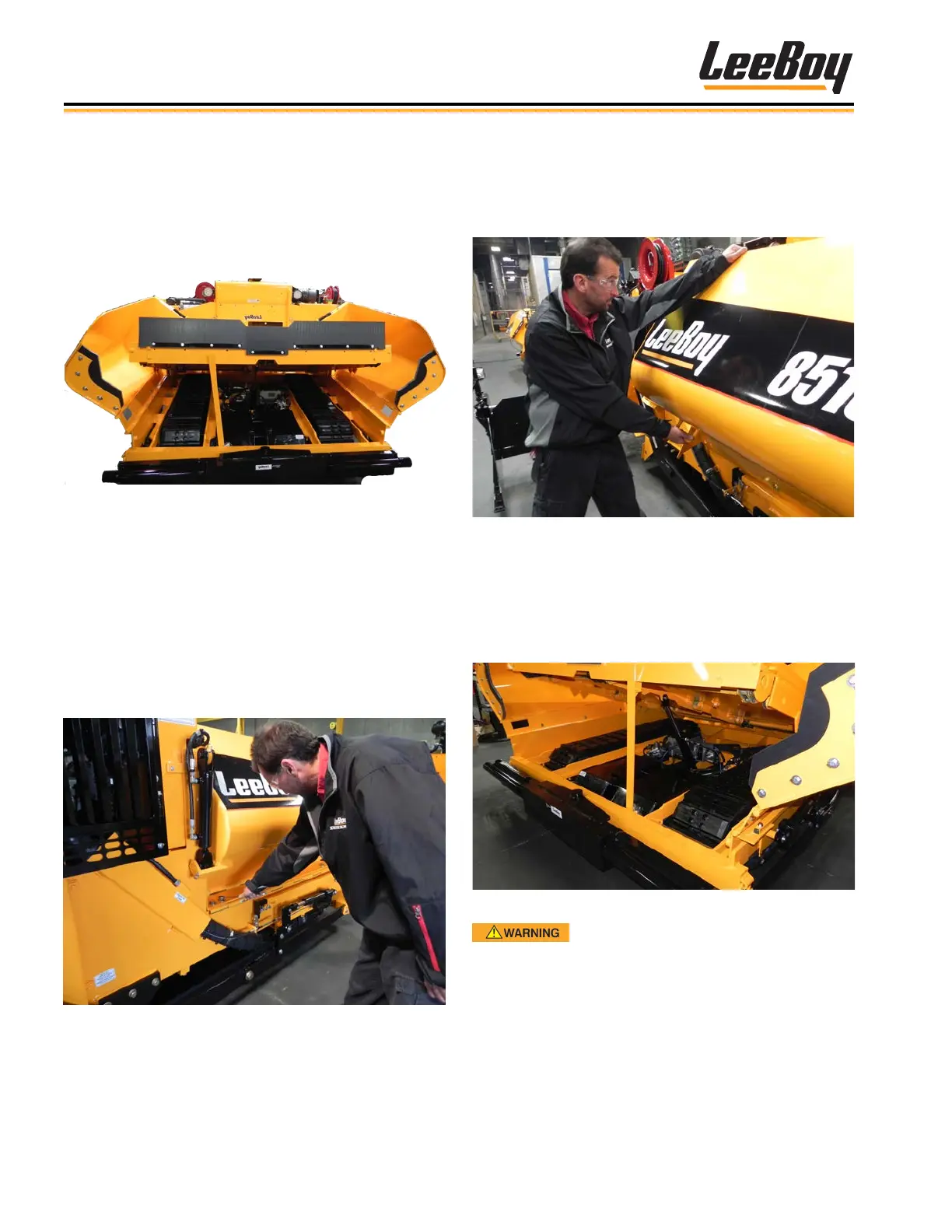

Figure 5-3. Fold Out Side Wings
4. Raise conveyor by pushing the Conveyor Raise/
Lower lever up to the RAISE position and hold until
conveyor is fully raised.
5. Immediately after raising the hopper, place the
safety prop in position. (Figure 5-4)
Figure 5-4. Safety Prop in Position
Crush Hazard! Safety prop must be
placed in position. Use extreme care when working
under conveyors. Clear the area of untrained
personnel.
Raising and Lowering
Conveyor
The conveyor bed can be hydraulically lifted for easy
access to the undercarriage and tracks for cleaning,
maintenance and adjustments. (Figure 5-1)
Figure 5-1. Hydraulic Conveyor Bed
NOTE: Engine must be running to raise the hydraulic
conveyor bed, but can be turned off while unbolting
the side wings.
Use the following procedures to raise and lower the
conveyor:
1. Fold in the side wings by pushing the Side Wings In/
Out lever to the IN position.
2. Remove bolts on side wings using the wrench
provided with your machine. (Figure 5-2)
Figure 5-2. Remove Side Wing Bolts
