Binary Sensor
Subtype
This field is available for a contact closure sensor only.
Determine the sensor type of your contact closure detector.
Contact Closure detects the door lock or door open/closed status.
Smoke Detection detects the appearance of smoke.
Water Detection detects the appearance of water on the floor.
Vibration detects the vibration of the floor.
Name A name for the sensor or actuator.
Description Any descriptive text you want.
Location (X, Y
and Z)
Describe the sensor's or actuator's location in the data center by typing
alphanumeric values for the X, Y and Z coordinates. See Sensor/Actuator
Location Example (on page 129).
If the term "Rack Unit
s" appea
rs in parentheses in the Z location, you must type
an integer number. The Z coordinate's format is determined on the page of PDU
(on page 94).
Alarmed to
Normal Delay
This field is available for the DX-PIR presence detector only.
It determines the wait time before the Legrand PDU announces that the
presence detector is back to normal after it already returns to normal.
Adjust the value in seconds.

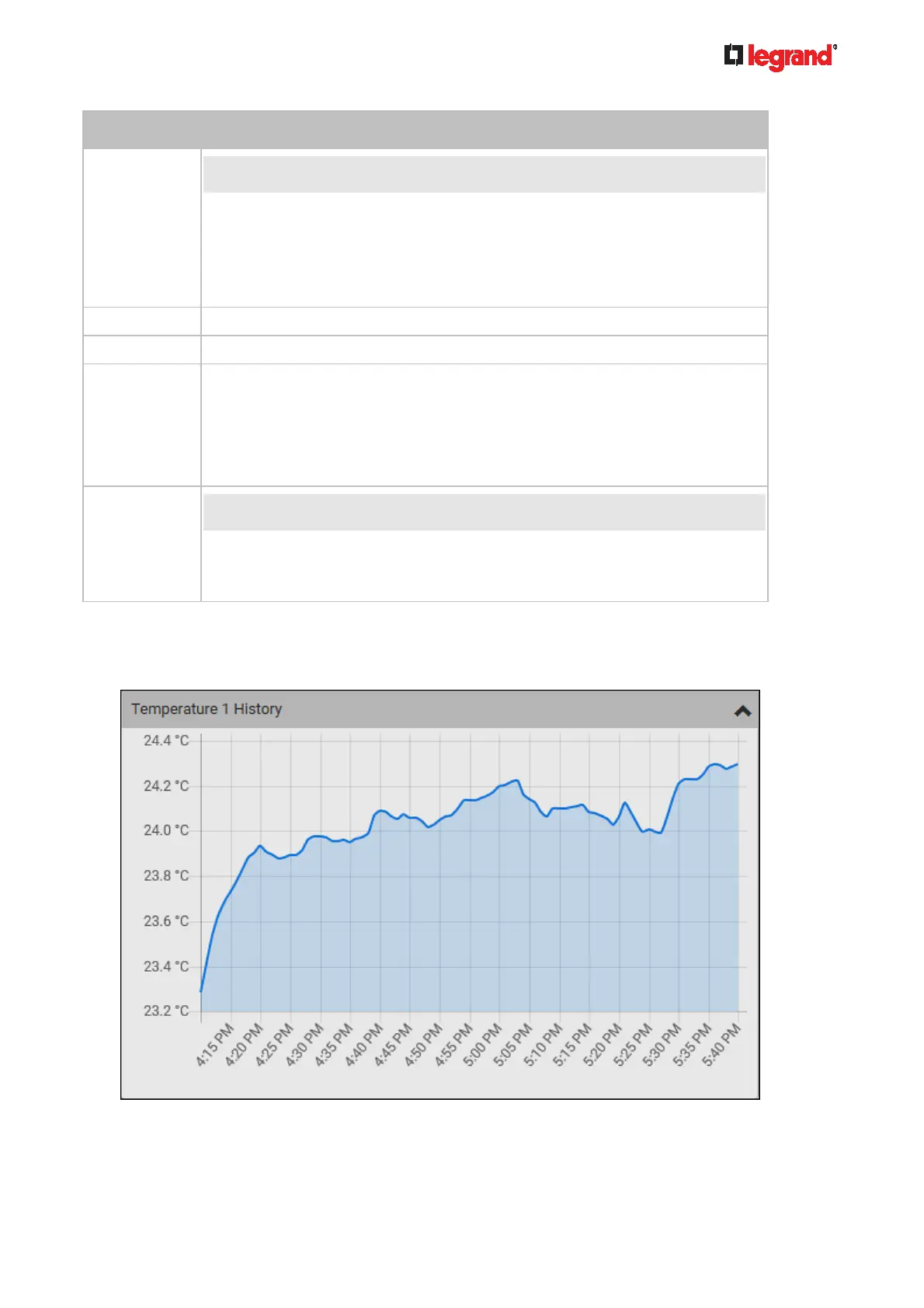

To view a numeric sensor's chart
This sensor's data within the past tens of minutes is shown in the chart. Note that only a numeric sensor has
this diagram. State sensors and actuators do not have such data.
