Cascading information in the Port Forwarding mode:

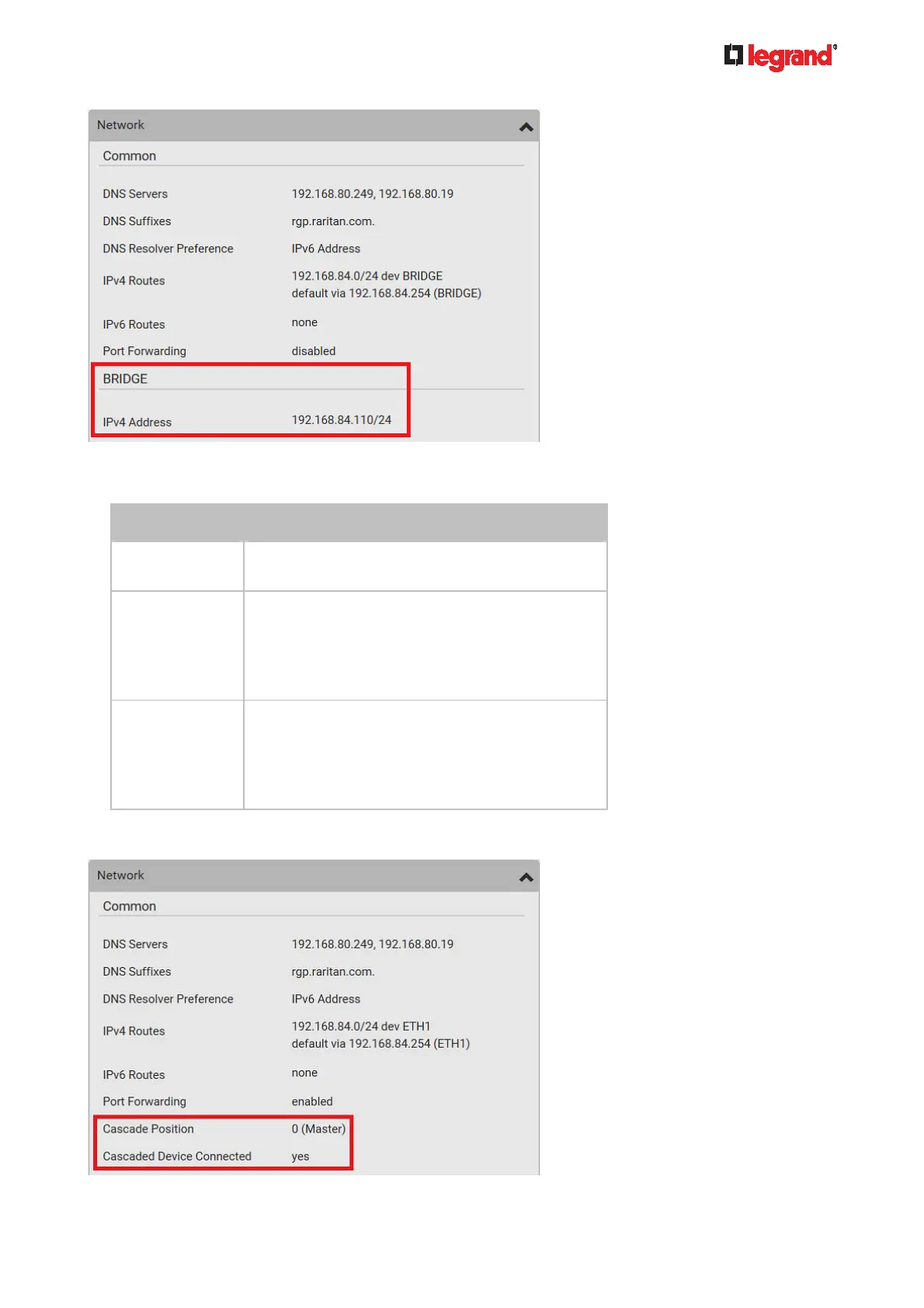

The Common section contains three read-only fields for indicating the cascading status.
Fields Description
Port Forwarding
Indicates the Port Forwarding is enabled. See
Setting the Cascading Mode (on page 150).
Cascade Position
Indicates the position of the Legrand PDU in the
cascading chain.
0 (zero) represents the master device.
A non-zero number represents a slave device. 1
is Slave 1, 2 is Slave 2, 3 is Slave 3 and so on.
Cascaded Device
Connected
Indicates whether a slave device is detected on the
USB-A or Ethernet port.
yes: Connection to a slave device is detected.
no: NO connection to a slave device is
detected.
A master device shows 0 (zero) in the Cascade Position field and yes in the Cascaded Device
Connected field.
