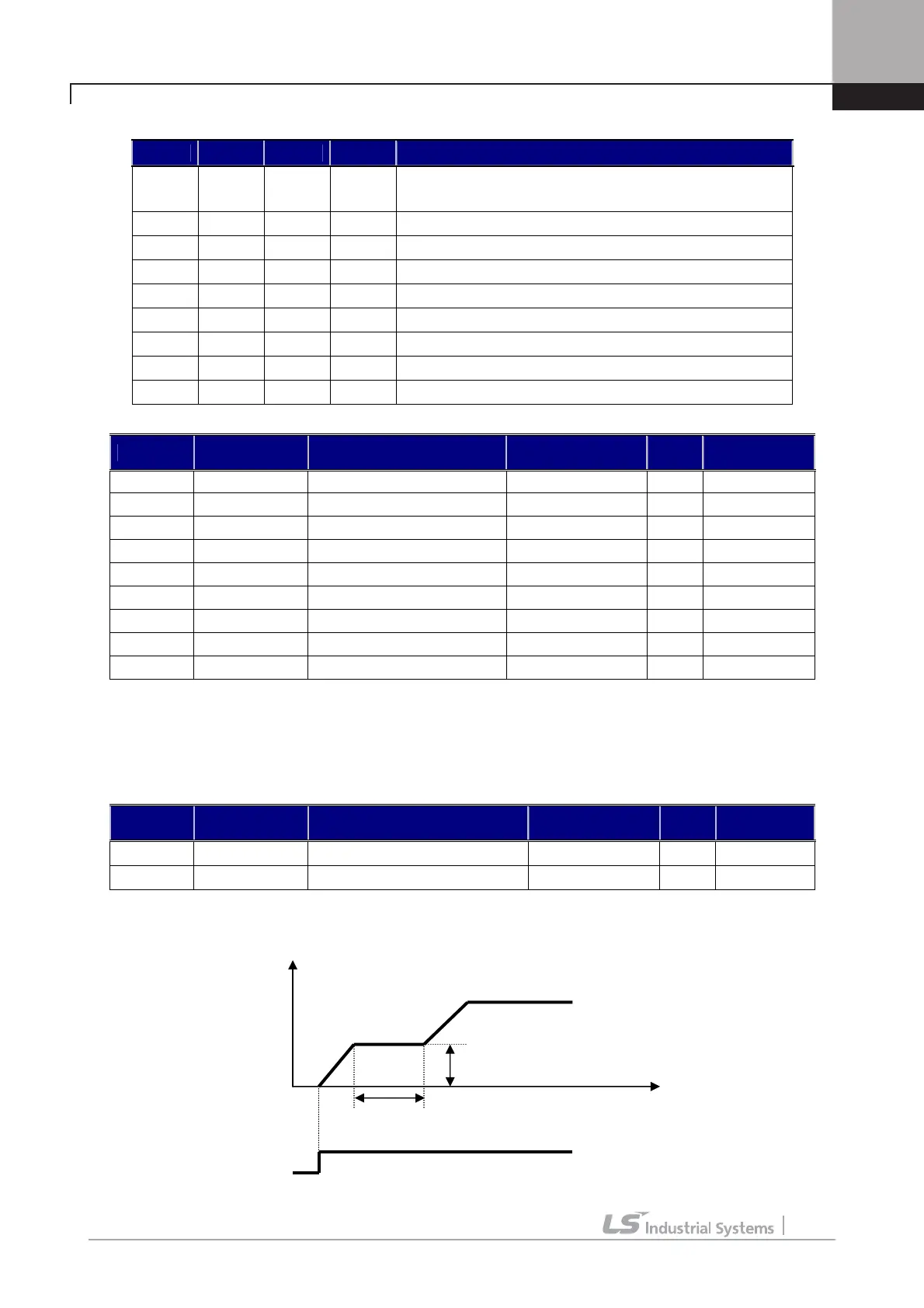

6. Function Description
6-38
operation command has a priority. In this case, the motor is operated at the speed of FUN_20 (Jog speed command).
P1 P2 P3 P4 Setting speed
OFF OFF OFF OFF
Speed command source is selected at FUN_02.
(One of analog inputs, FUN_12 and Option board)
ON OFF OFF OFF FUN_13
OFF ON OFF OFF FUN_14
ON ON OFF OFF FUN_15
OFF OFF ON OFF FUN_16
ON OFF ON OFF FUN_17
OFF ON ON OFF FUN_18
ON ON ON OFF FUN_19
X X X ON FUN_20 (JOG speed command)
The values of the multi-step speed command are shown below.
Code LCD display Description Setting range Unit
Factory
setting
FUN_12 Speed 0 Multi-step speed 0 0.0 ~ FUN_04 rpm 0.0
FUN_13 Speed 1 Multi-step speed 1 0.0 ~ FUN_04 rpm 0.0
FUN_14 Speed 2 Multi-step speed 2 0.0 ~ FUN_04 rpm 0.0
FUN_15 Speed 3 Multi-step speed 3 0.0 ~ FUN_04 rpm 0.0
FUN_16 Speed 4 Multi-step speed 4 0.0 ~ FUN_04 rpm 0.0
FUN_17 Speed 5 Multi-step speed 5 0.0 ~ FUN_04 rpm 0.0
FUN_18 Speed 6 Multi-step speed 6 0.0 ~ FUN_04 rpm 0.0
FUN_19 Speed 7 Multi-step speed 7 0.0 ~ FUN_04 rpm 0.0
FUN_20 Jog Speed JOG speed 0.0 ~ FUN_04 rpm 100.0
z
FUN_04: Max. motor speed
3) FUN_21(Dwell Speed), FUN_22(Dwell Time)
Acceleration is instantly stopped and restarted before driving a heavy load such as hoists when selected.
Code LCD display Description Setting range Unit
Factory
setting
FUN_21 Dwell Speed Dwell Speed 0.0 ~ FUN_04 rpm 100.0
FUN_22 Dwell Time Dwell Time 0.00 ~ 100.00 sec 0.00
z
FUN_04: Maximum motor speed
z
disabled when FUN_22 is set to “0”.
Speed
FUN_21
FUN_22
Time
RUN
