3. Installation and Wiring
3-21
CAUTION
z NEVER change the jumper setting during inverter run. Otherwise, it may cause
inverter trip, adversely affecting the entire system.
z Motor NTC input for Analog Input 3 (AI3) is ONLY available when OTIS Motor is
connected.
If user use a motor other than OTIS with different NTC(PTC) specification and use
this function, it will lead to motor overheat and damage to the motor.
z Do not change the setting of PNP/NPN input switch during inverter operation. It can
influence to the system since contact input is changed. Set the switch correctly
before inverter operation
.

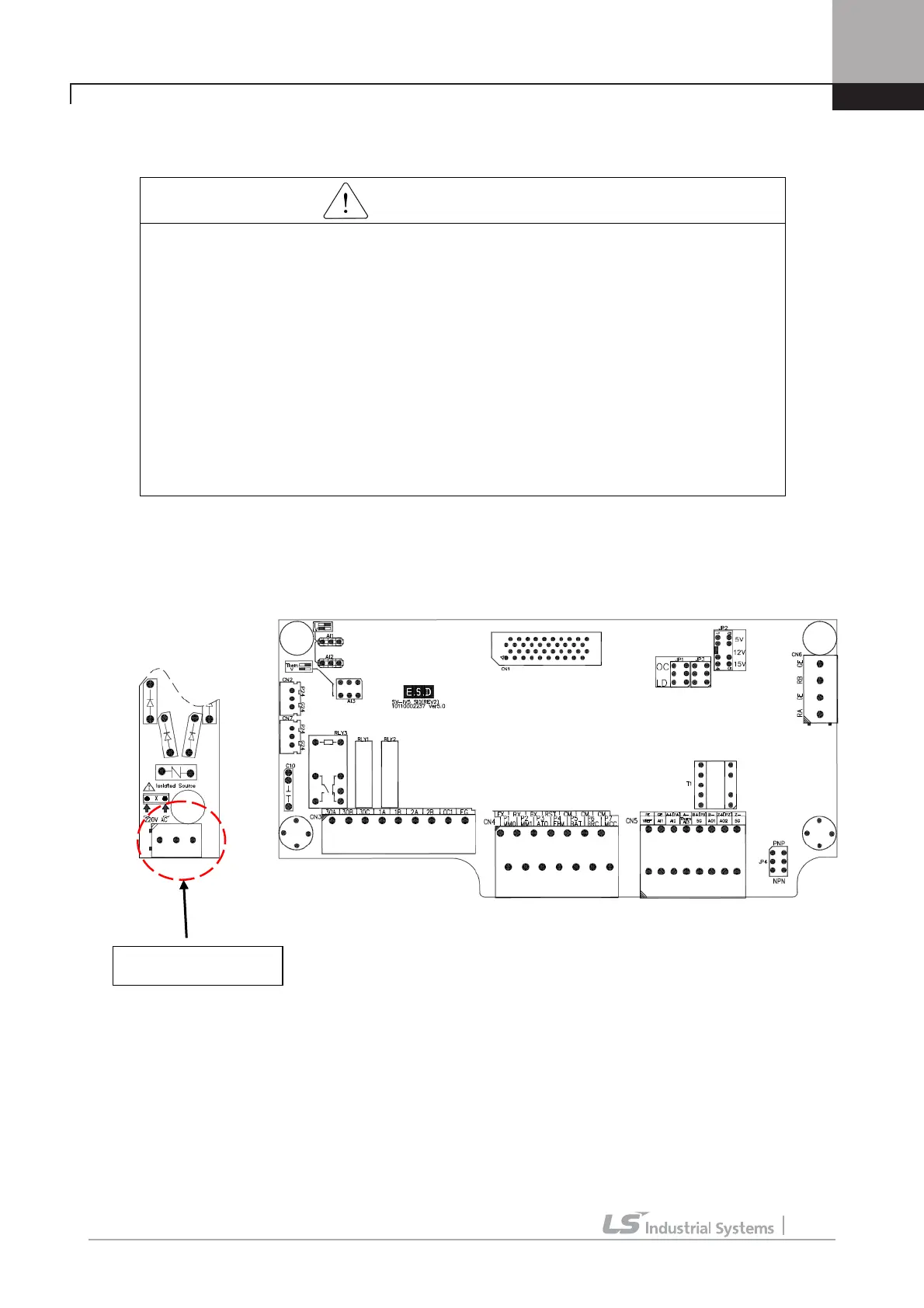

3.5 Terminal of the Auxiliary Power Supply
3.5.1 The position of the terminal
SV055 ~ 220iV5(Press) (for AC/DC products)
Terminal of the
Auxiliary Power
To Next Page
