3. Installation and Wiring
3-3

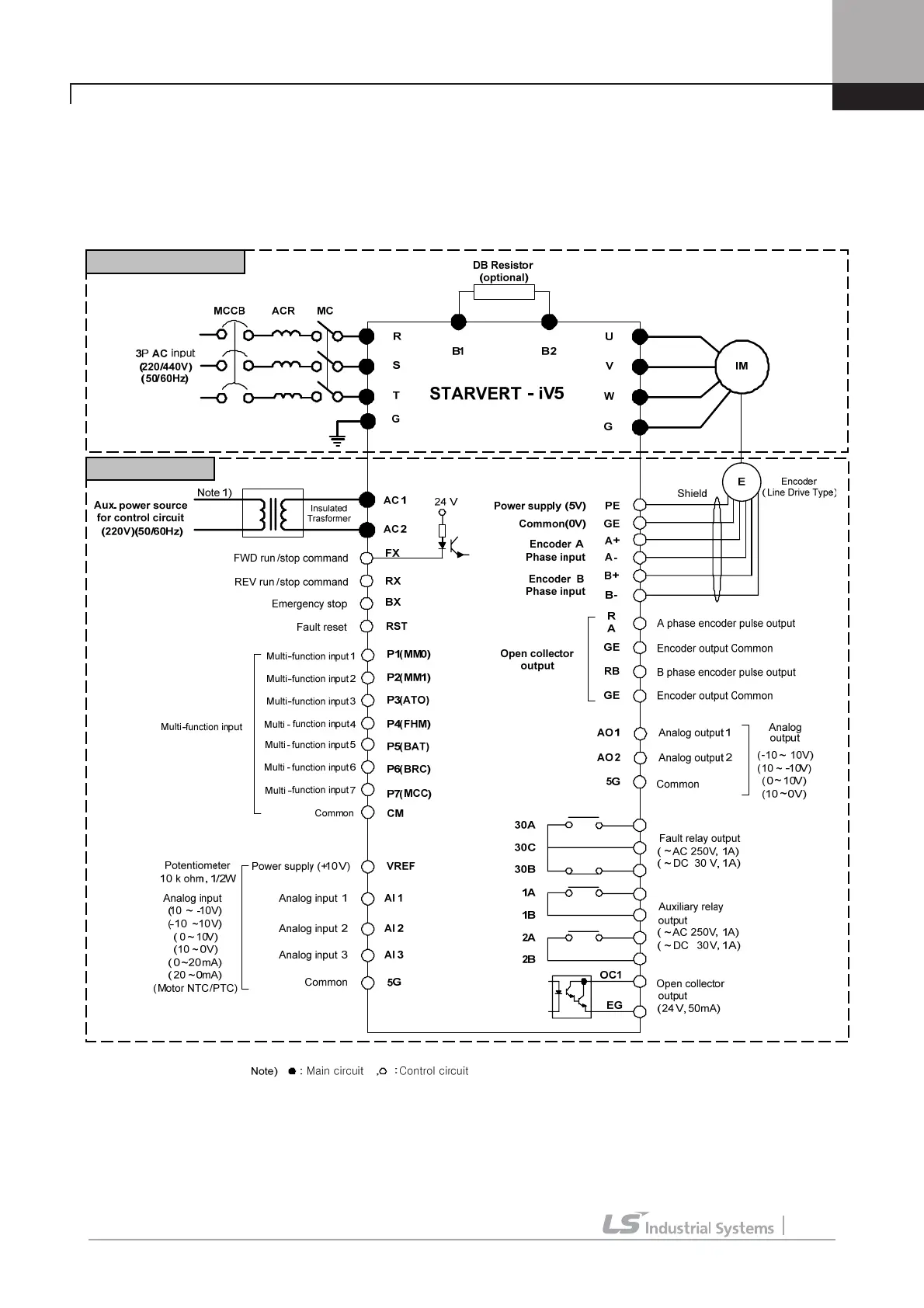

3.2 Basic Wiring
 AC Power Input Type:
SV022, 037, 055, 075, 110, 150, 185, 220iV5-2(DB)
SV022, 037, 055, 075, 110, 150, 185, 220iV5-4(DB)
※ 5G: Encoder power source common terminal for SV022/037iV5
Note 1) It is used when inverter control circuit is energized from auxiliary power source (220 VAC) separated from
main power supply. Use insulated transformer to separate from main power supply. (Transformer capacity:
Above 100VA recommended)
Main Power Circuit
Control Circuit
