262335 20 Revision A

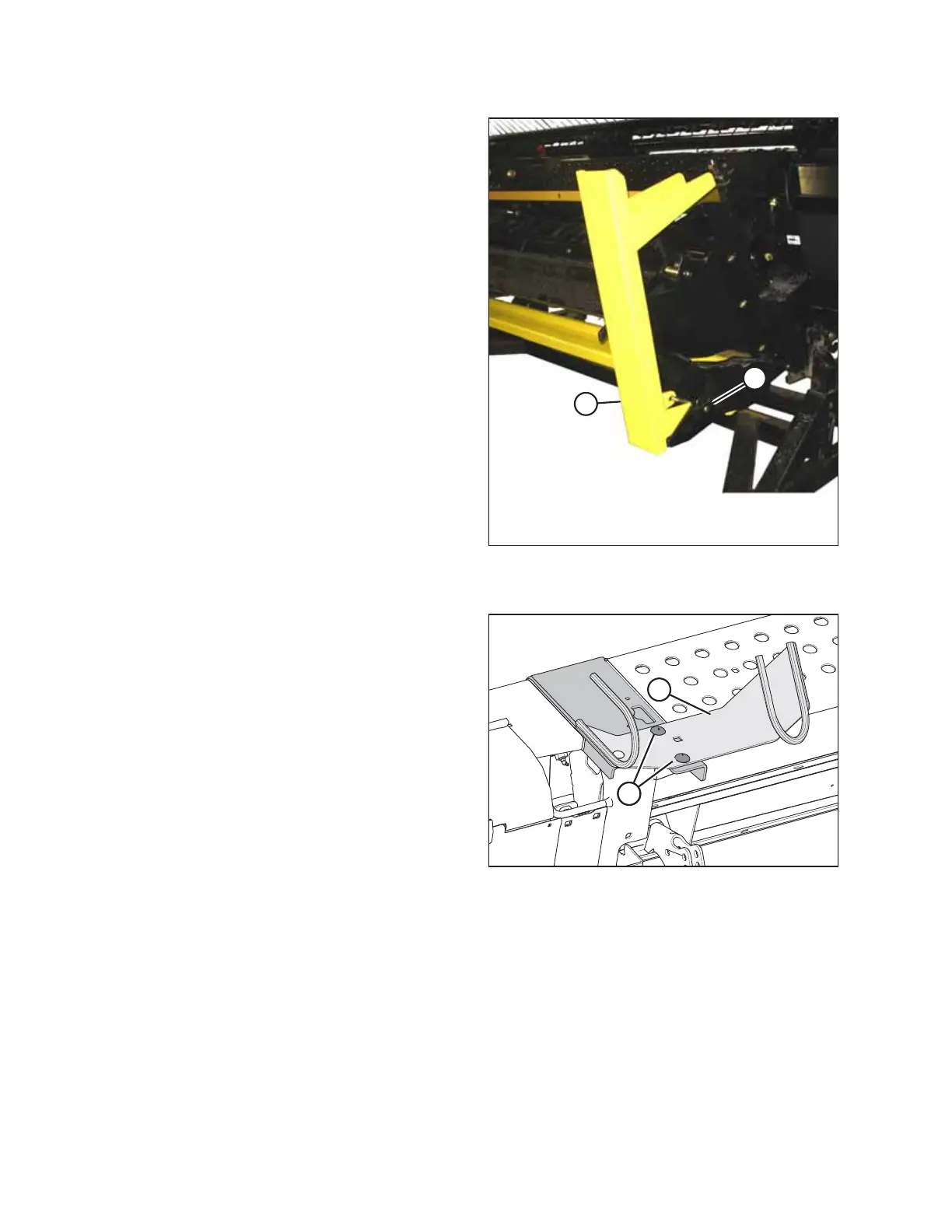

Figure 3.17: Right Side Shipping Stand — Left Side
Opposite
3. Remove the hairpin from pin (A) and hold shipping
stand (B) steady.
4. Remove and retain pin (A). Remove the shipping stand from
header and reinstall pin (A), and secure with the hairpin
retained from Step 3, page 20. Repeat step for the
other stand.
Figure 3.18: A40DX Hose Bracket
5. A40DX headers only: Secure hose bracket (A) with two
bolts (B) and nuts retained from Step 2, page 19. Torque
hardware (B) to 76–183 Nm (56–135 lbf·ft).
IMPORTANT:
Ensure bolt heads (B) face upward to avoid damaging the
routed hose bundle.
ASSEMBLING THE MACHINE
