214327 215 Revision B

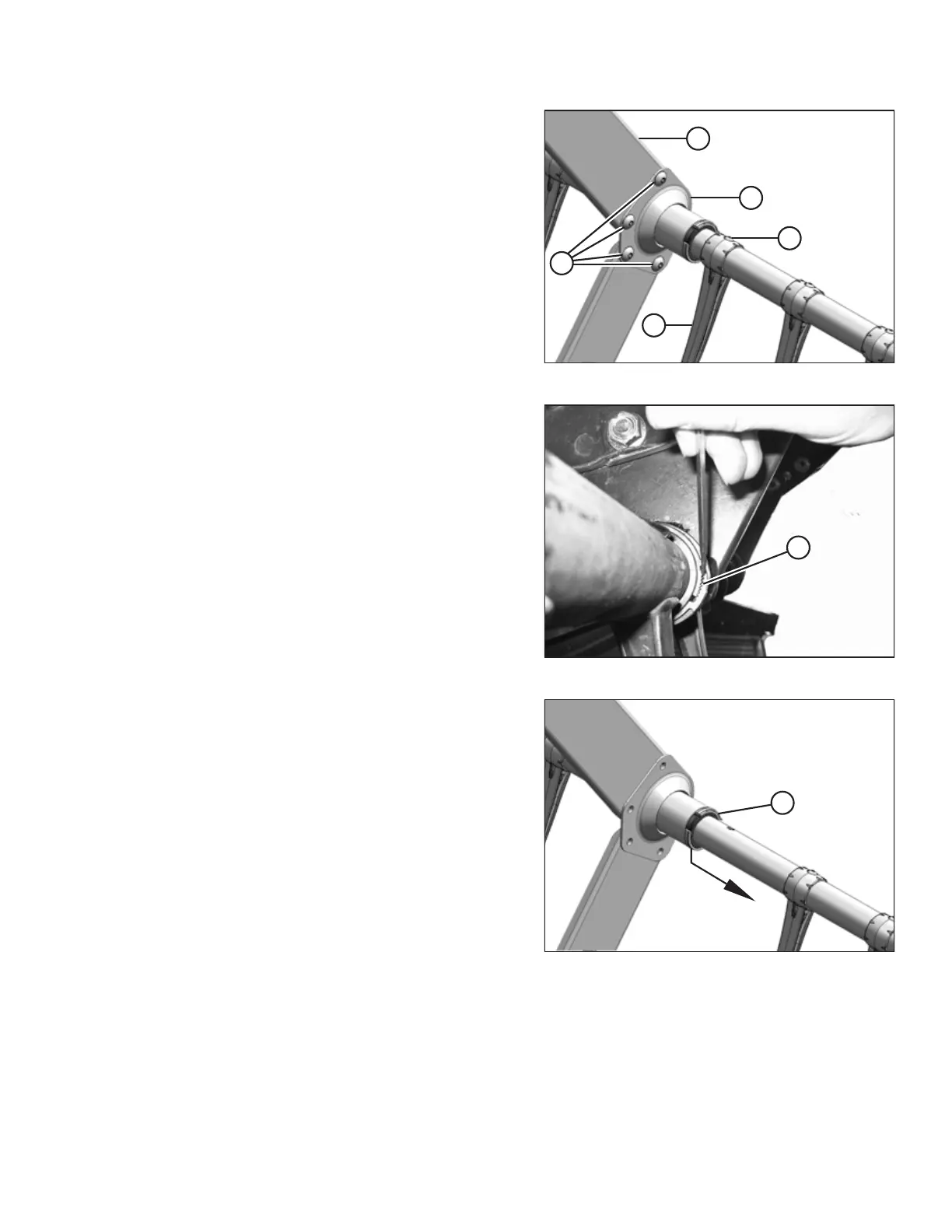

Figure 5.180: Tine Tube Support
18. Locate support (A) that requires a new bushing.
19. Remove four bolts (B) securing channels (C) to support (A).
20. If finger (D) is too close to the support to allow access to
the bushing, remove screw (E) and remove finger (D). For
instructions, refer to Removing Plastic Fingers, page 209.
Figure 5.181: Bushing Clamp
21. Release bushing clamps (A) using a small screwdriver to
separate the serrations.
Figure 5.182: Bushing Clamp
22. Move clamps (A) off the bushings.
MAINTENANCE AND SERVICING
