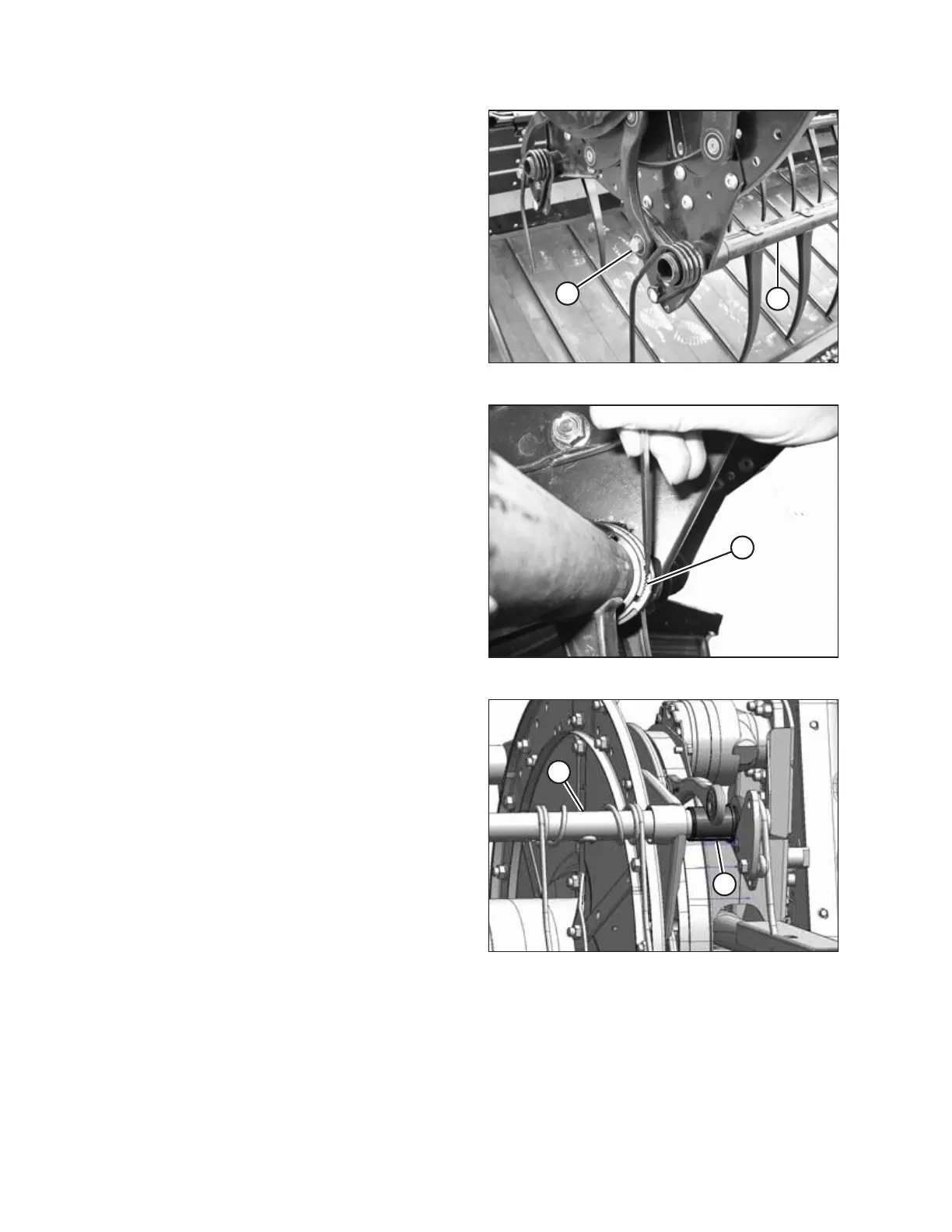

Figure 5.177: Cam End
14. Remove bolt (A) from the cam linkage so the tine tube (B) is
free to rotate.
NOTE:
Be sure to not lose the shim, and mark the shim location
for reassembly.
Figure 5.178: Bushing Clamp
15. Release bushing clamps (A) at the cam disc using a small
screwdriver to separate the serrations. Move the clamps off
the bushings.
Figure 5.179: Cam End
16. Slide tine tube (A) outboard to expose bushing (B).
17. Remove bushing halves (B). If required, remove the next
tine or plastic finger so the arm can slide off the bushing.
Refer to the following procedures if necessary:
• Removing Plastic Fingers, page 209
• Removing Steel Tines, page 208
Removing tine tube support bushings (if installed):
