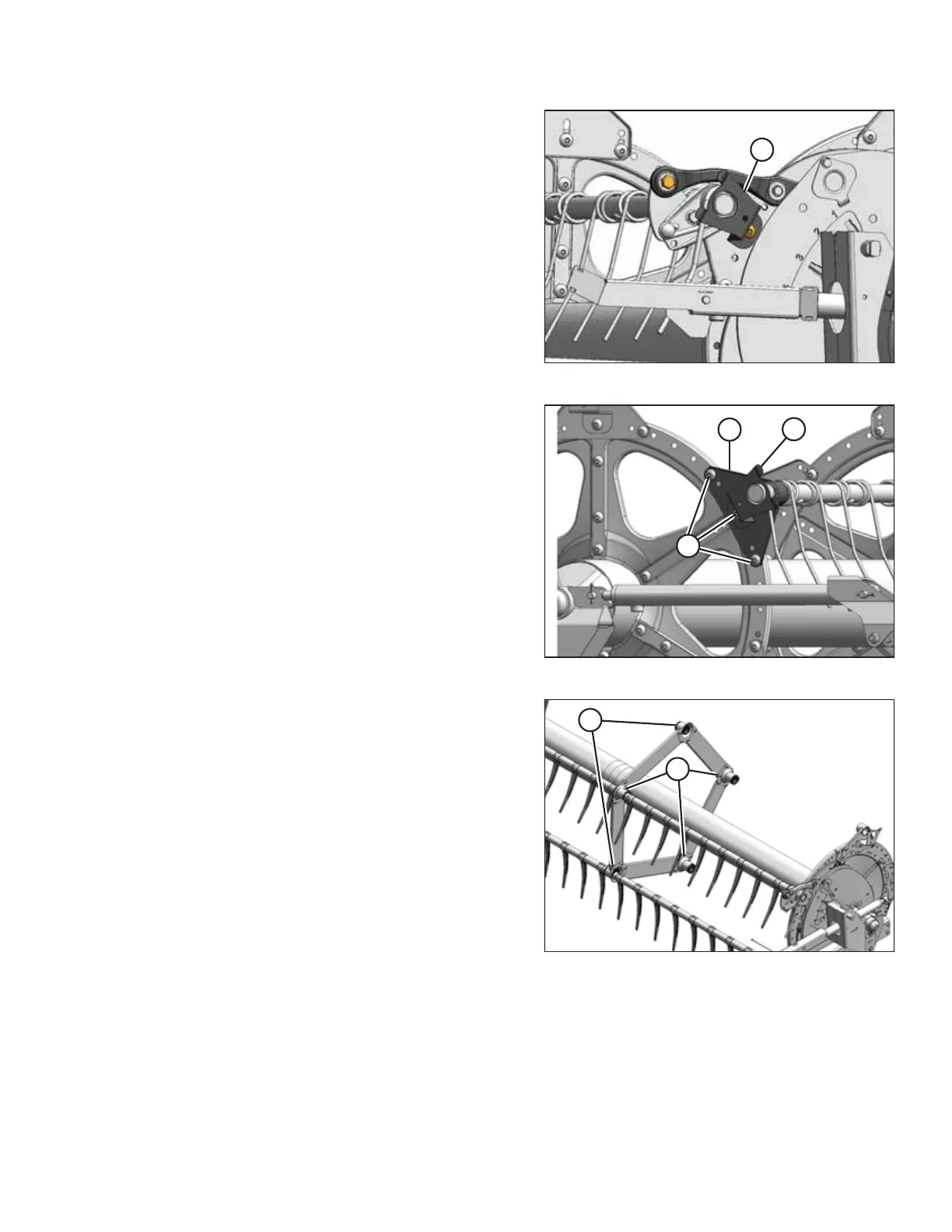

Figure 5.174: Cam End
10. Remove the endshields and endshield support (A) at the
applicable tine tube location on the cam end.
NOTE:
Removing the cam end bushings requires the tine tube be
moved through the disc arms to expose the bushing.
Figure 5.175: Tail End
11. Remove the reel endshields and endshield support (C) from
the tail end of the reel at the applicable tine tube location.
12. Remove bolts (A) securing arms (B) to the tail and
center discs.
Figure 5.176: Tine Tube Supports
13. Release the bushing clamps or disconnect the support
channels from the tine tube support (if installed) depending
on which tine tube is being moved. Three tine tubes (A)
require channel disconnection and two tine tubes (B)
require only bushing clamp removal.
