214327 218 Revision B

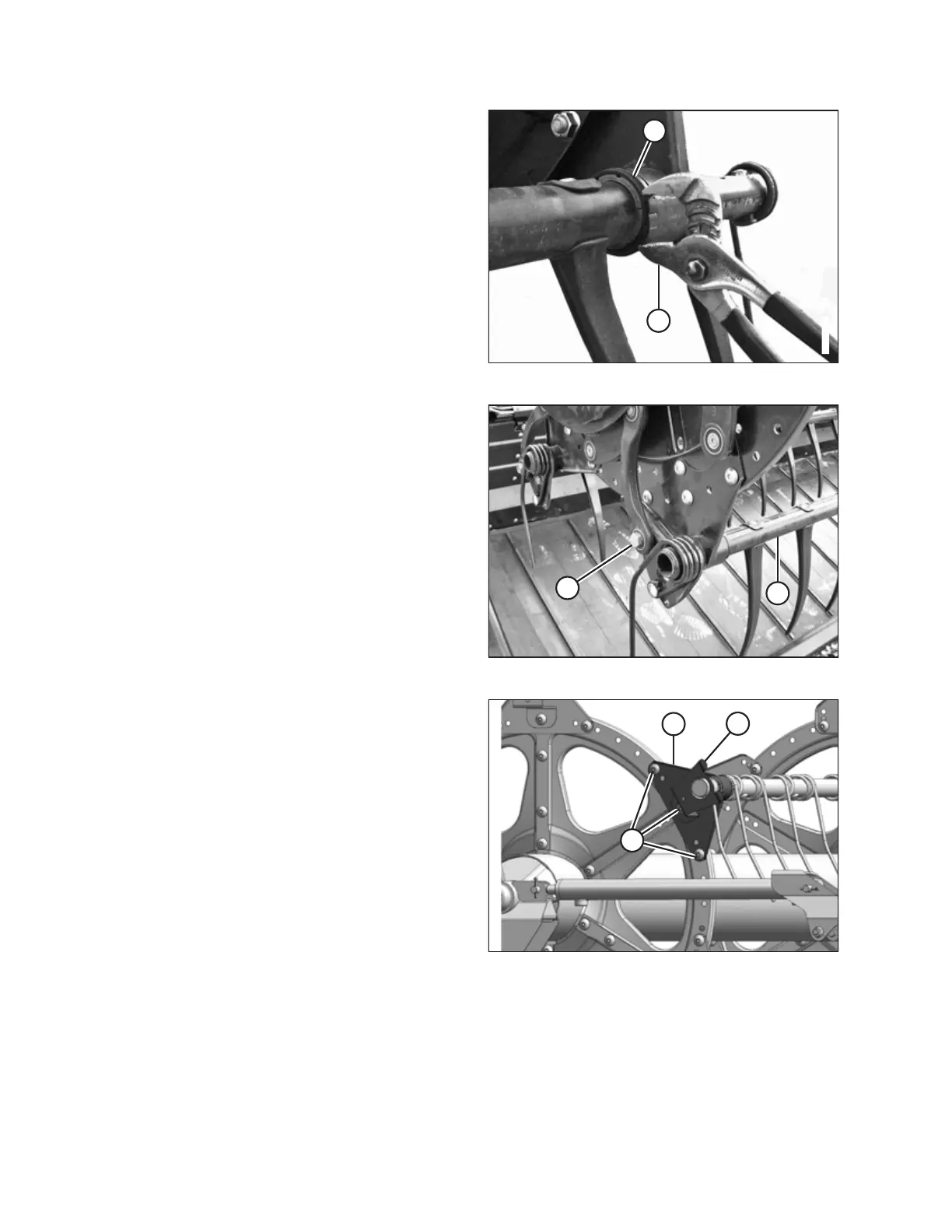

Figure 5.188: Clamp on Bushing
6. Tighten clamp (A) using modified channel lock pliers (B)
until finger pressure will NOT move the clamp.
IMPORTANT:
Overtightening the clamp might break the clamp.
Figure 5.189: Cam End
7. Line up tine tube (B) with the cam arm and install bolt (A).
Apply medium-strength threadlocker (Loctite
®
243 or
equivalent) to the bolt, and torque the bolt to 165 Nm
(120 lbf·ft).
NOTE:
Make sure the shim is between the cam arm and the reel
bat.
Figure 5.190: Tail End
8. Install bolts (A) securing arm (B) to the center disc.
9. Install reel arm (B) and endshield support (C) to the tail end
of the reel at the applicable tine tube location, and secure
them with bolts (A).
MAINTENANCE AND SERVICING
