MacDon D65 - 5.9.7 Replacing Drive Chain on Single Reel

214327 219 Revision B
1004613
A

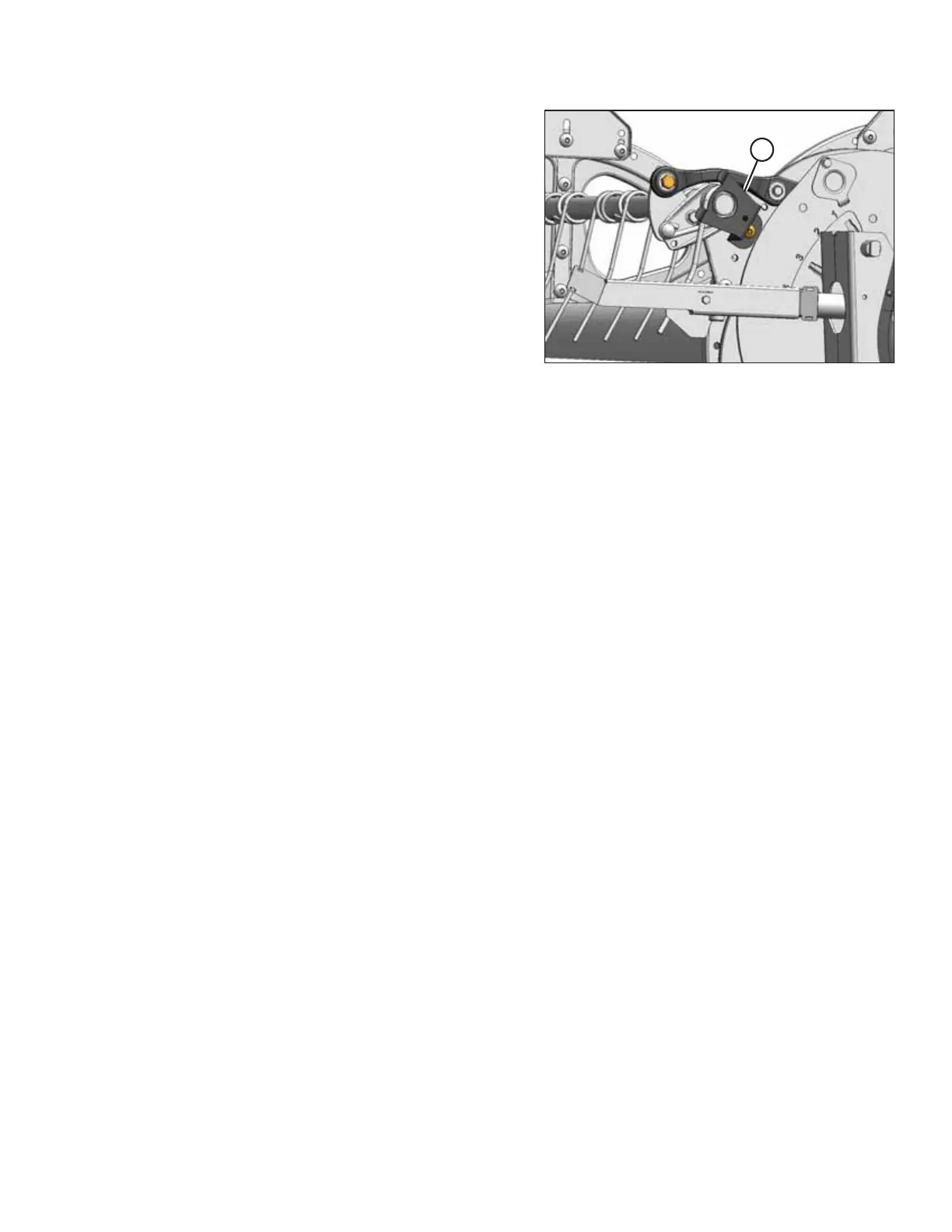

Figure 5.191: Cam End
10. Install endshield support (A) at the applicable tine tube
location at the cam end.
11. Reinstall the reel endshields. For instructions, refer to 5.8.6
Reel Endshields, page 223.
MAINTENANCE AND SERVICING
