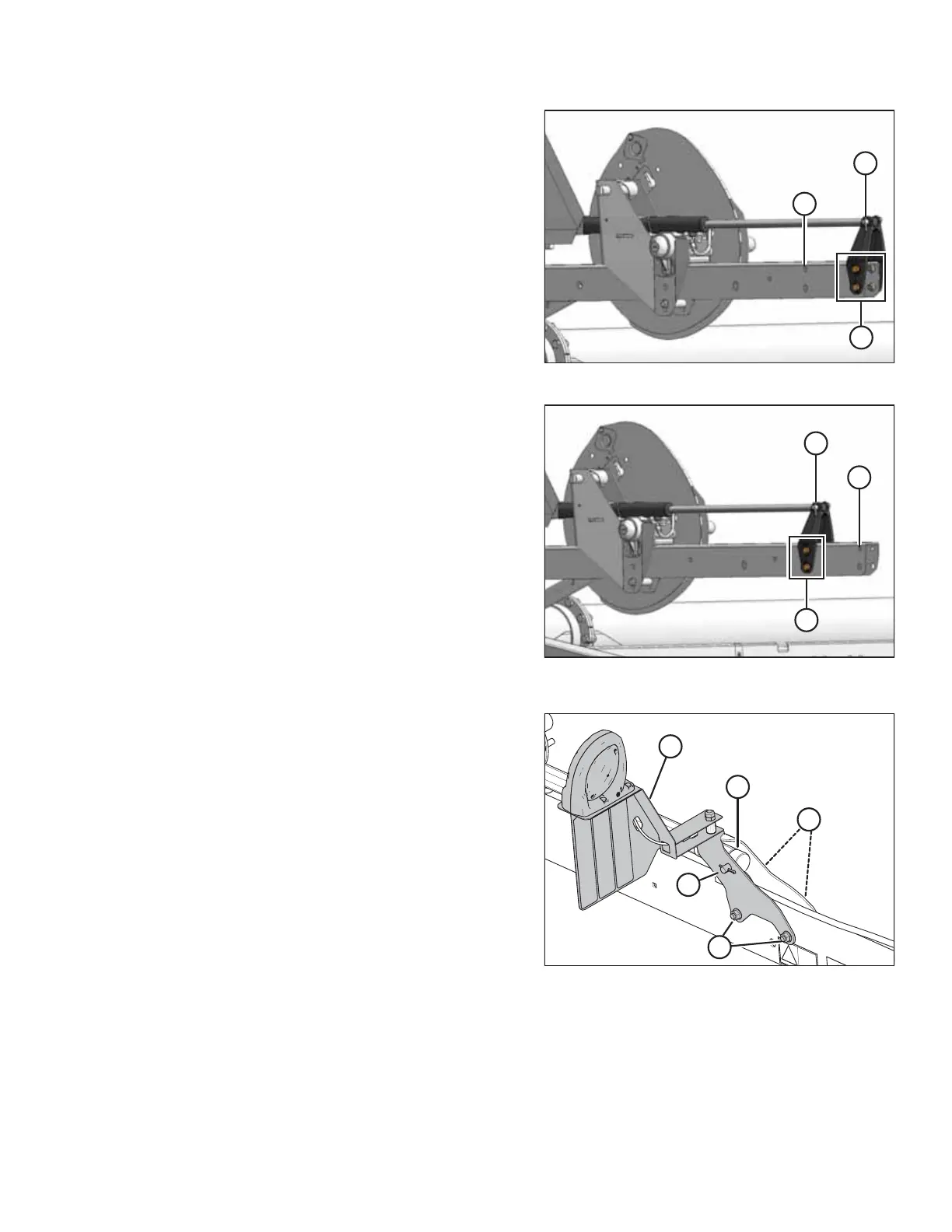

Figure 3.40: Forward Position
Reposition right arm cylinder as follows:
NOTE:
Reel components not shown in illustration for clarity.
6. Remove four bolts (A) securing cylinder bracket (B) to the
reel arm.
7. Position reel until bracket (B) lines up with desired position
holes (C):
• Forward position, refer to Figure 3.40, page 65
• Rearward position, refer to Figure 3.41, page 65
8. Reinstall the four bolts (A) to secure bracket to reel arm at
new position.
1009312
A
B
C
Figure 3.41: Rearward Position
1030728
A
B
C
D
D
Figure 3.42: Left Reel Arm Cylinder in Forward
Position
Reposition the left reel arm cylinder as follows:
NOTE:
Reel components not shown in illustration for clarity.
9. Remove pin (A) securing cylinder (B) to bracket/light
assembly (C).
10. Remove bolts (D) securing bracket/light assembly (C) to the
reel arm, and remove the bracket/light assembly.
11. If necessary, remove the cable tie securing the harness to
the bracket/light assembly (C) or reel arm.
12. Swivel the light to the working position as shown.
