Section 4 – RADIO REMOTE CONTROL SYSTEM COMPONENTS Mini-Crawler Crane M A E D A
4-96 9/2020 MC285CB-3

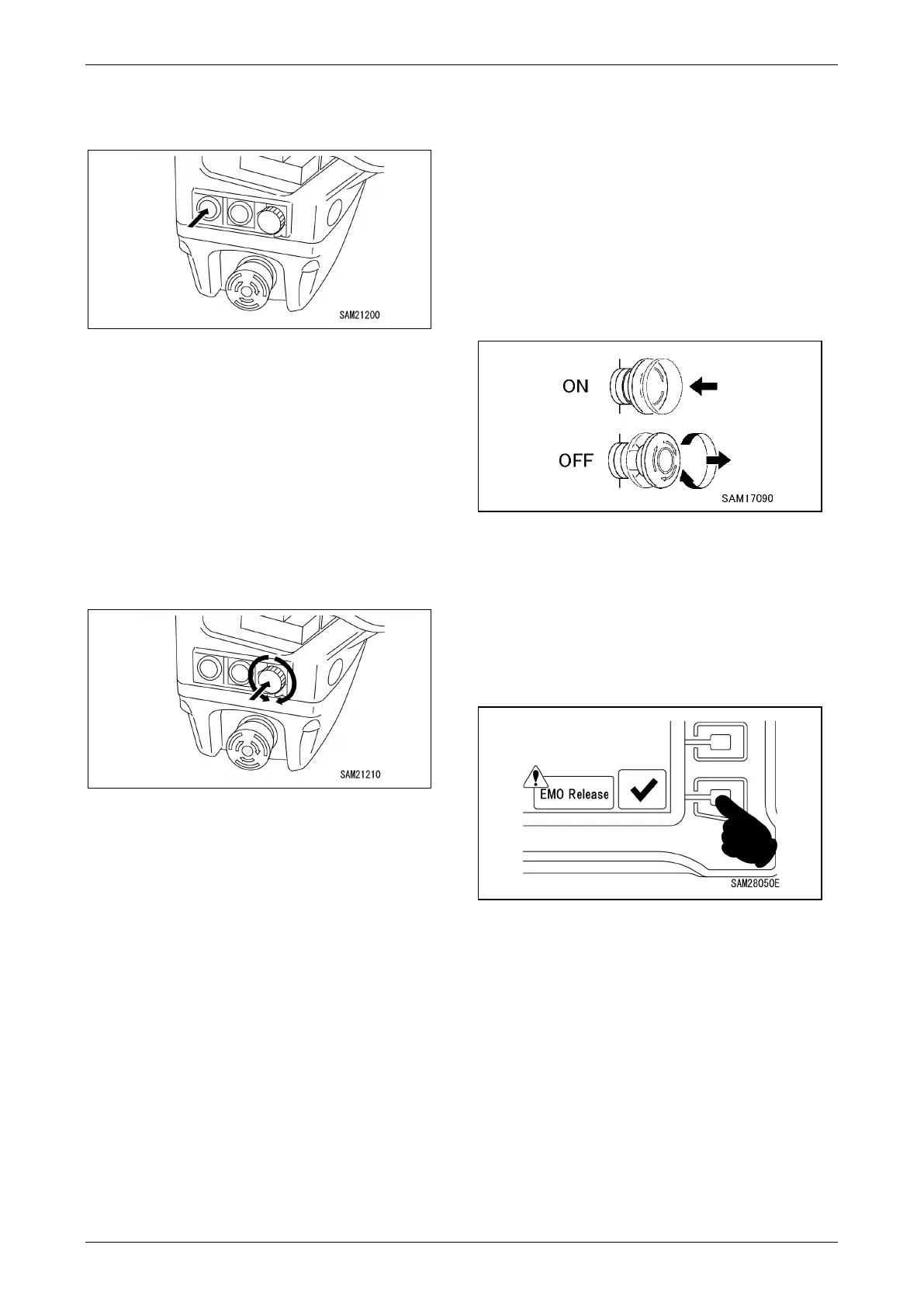

Transmitter Power Switch
Use this switch to turn on transmitter power.
Fig. 4-235
• Standby: Press the switch once to select
Standby mode. Power will shut off automatically
after a few seconds in standby mode.
• Power ON: Press the switch three times while in
Standby mode to turn on transmitter power.
Display Operation Switch
Use this switch to operate the display.
• Select: Rotate the switch to select from the
menu.
• Enter: Press the switch to enter a selection.
Fig. 4-236
Horn Switch
The horn keeps blowing while this switch is
pressed.
Boom Lift Bypass Switch
The boom can be lifted while this switch is
pressed following an overload stop.
Micro Speed Switch
Used to operate the crane at slow speed when
operating the crane.
Emergency Stop (EMO)/Transmitter
Power OFF Switch
Use this switch to bring the machine to an
emergency stop. In addition, this switch can be
used to turn off the radio remote control system.
• ON: Turns off transmitter power and shuts
down the machine.
• OFF: Allows transmitter power to be turned on.
Power cannot be turned on while this
switch is ON.
Fig. 4-237
Displayed when the emergency stop switch has
been pressed on the radio remote control unit.
It disappears once communication is established
with the radio remote control unit.
To operate the levers on the machine while the
guide is displayed, press the emergency stop
reset switch at the bottom right of the monitor.
Fig. 4-238
To Next Page
