M A E D A Mini-Crawler Crane Section 4 – RADIO REMOTE CONTROL SYSTEM COMPONENTS
9/2020 MC285CB-3 4-97
Cable Connection Port
Not used with this machine.

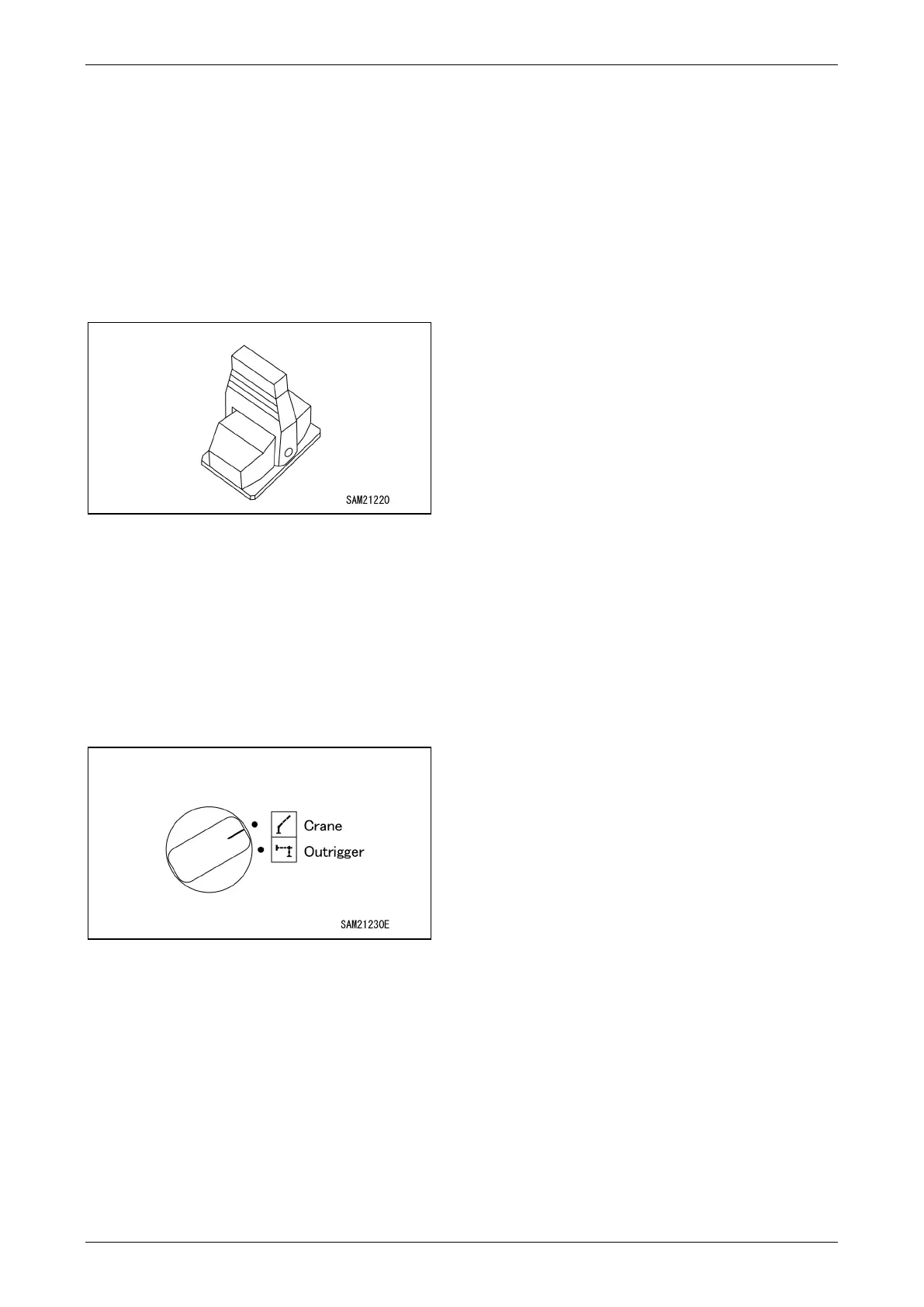

No. 1 Outrigger/Slewing Operation Lever
No. 2 Outrigger/Telescoping Operation
Lever
No. 3 Outrigger/Winch Operation Lever
No. 4 Outrigger/Lifting and Lowering
Operation Lever
Fig. 4-239
Used for individual outrigger and crane operations
For more information on outrigger operations, see
“Outrigger Operation” on page 4-109.
For more information on crane operations, see
“Crane Operation” on page 4-112.
Operation Mode Selector Switch
Used to switch between Outrigger mode and
Crane mode.
Fig. 4-240
• Outrigger: Allows outriggers to be operated
using levers.
• Crane: Allows the crane to be operated using
levers.
LED Light (Front)
LED Light (Control Panel)
Turns on the LED lights to illuminate the
surrounding area.
For more information on turning on the lights, see
“Transmitter Display Components” on page 4-98.
Left Display
Right Display
Use this display to view various kinds of
information.
For more information on display, see “Transmitter
Display Components” on page 4-
98.
To Next Page
