Motor Speed Adjuster Switch
Used to adjust the motor speed when operating
the crane.
Pressing the switch increments the motor speed
in five steps.
NOTICE:
The switch is not displayed when radio remote
control communication is being used.
The motor speed adjusted applies only when in
crane mode and outrigger mode.
If the motor speed is limited by an eco mode
setting, the eco mode setting takes precedence.

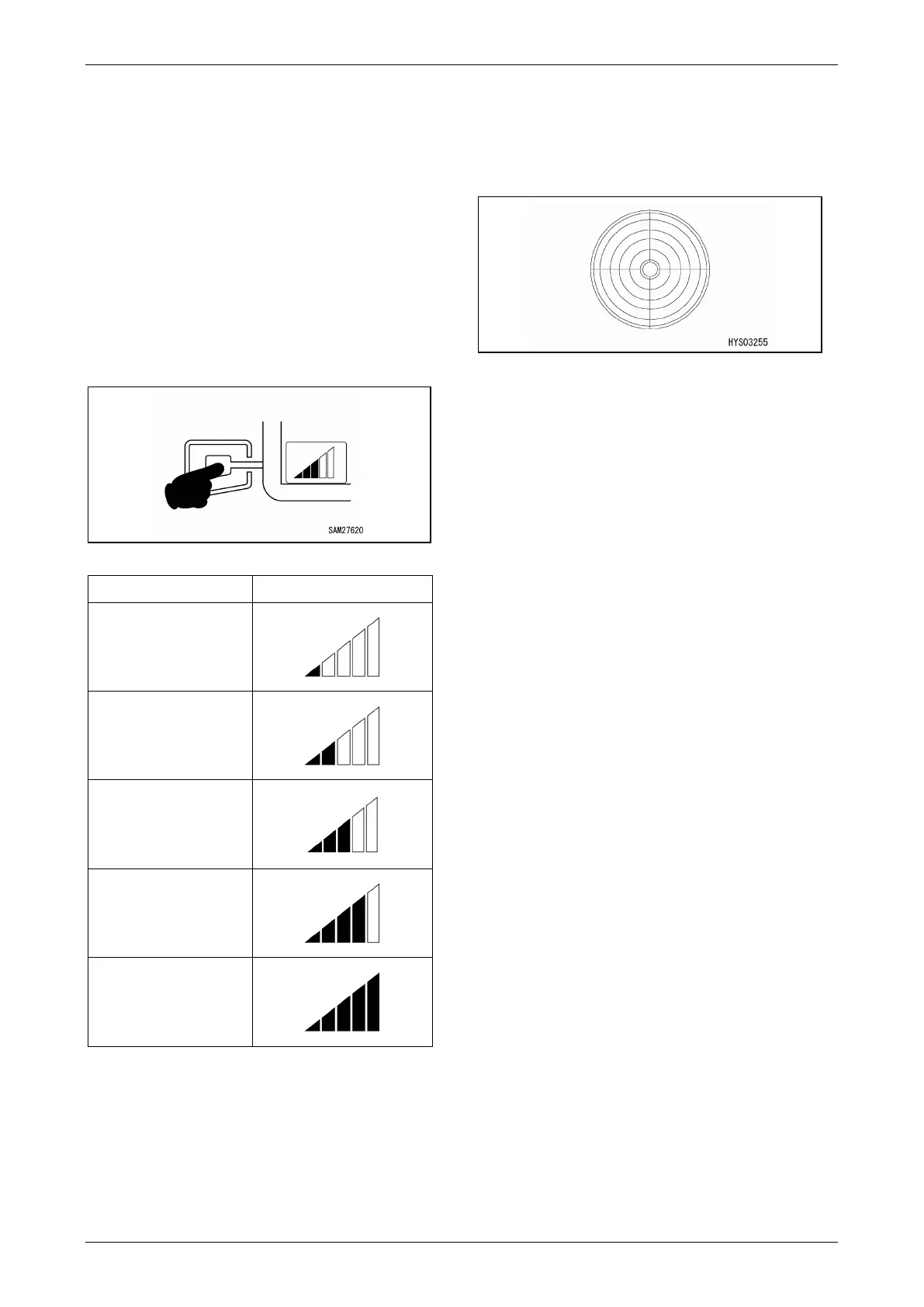

Fig. 4-23
Motor speed Icon
900 rpm
1300 rpm
1700 rpm
2100 rpm
2500 rpm
Level Gauge
Displays the tilt status of the machine.
The position of the yellow bubble indicates the
direction in which the machine is tilting.
Fig. 4-24
Time Display
Displays the time set.
24BHour Meter Display
Displays cumulative hours of operation.
