M A E D A Mini-Crawler Crane Section 4 – MONITOR
9/2020 MC285CB-3 4-15

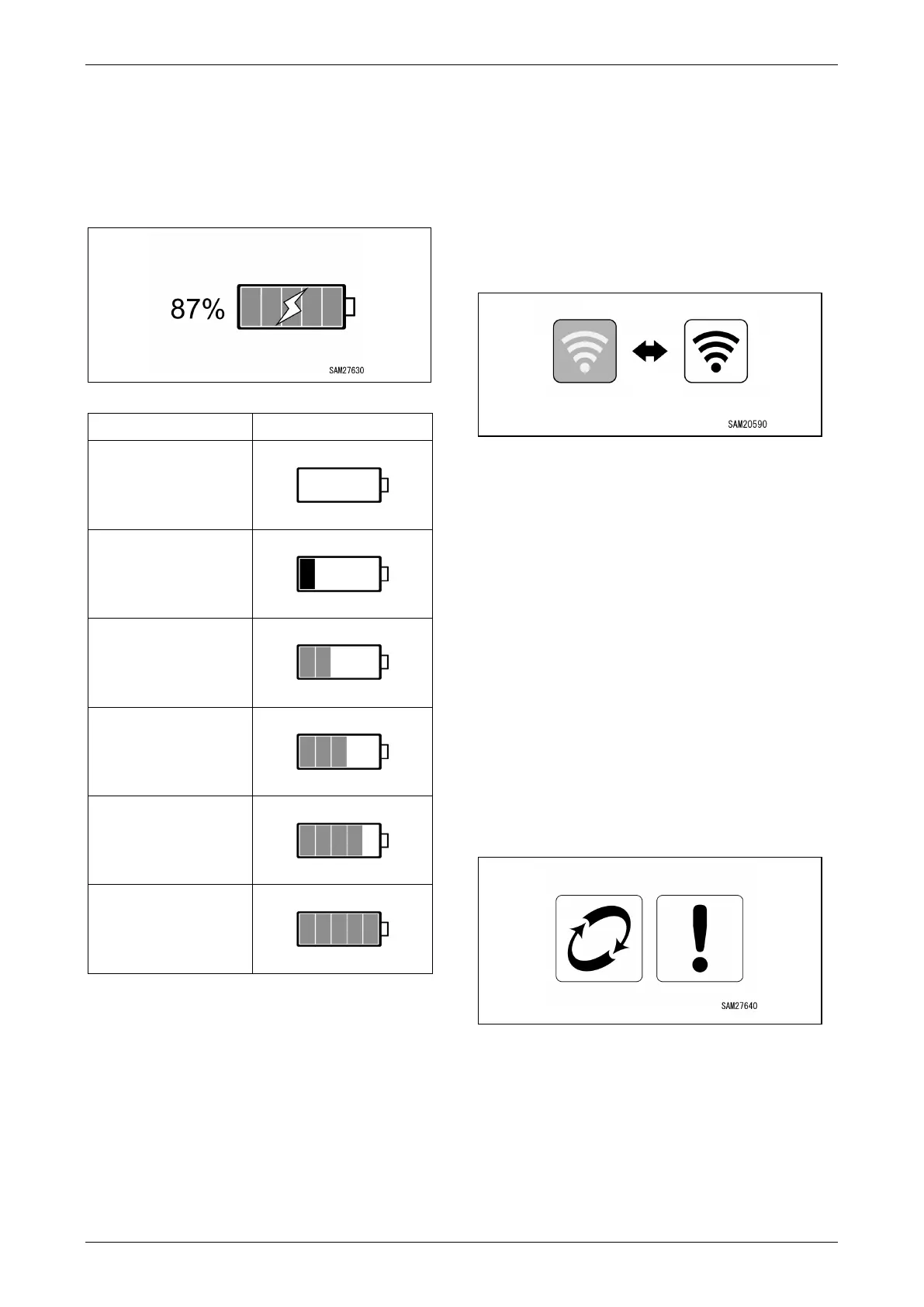

BBattery Level Indicator
Displays the battery level.
NOTICE: The flash sign at the centre of the
indicator appears only when the battery is being
charged.
Fig. 4-25
Charge Icon
0%
1 to 20%
21 to 40%
41 to 60%
61 to 80%
81 to 100%
• The icon blinks when the charge is between 1%
and 10%.
• The alarm buzzer emits two short beeps
intermittently by an interval of 30 seconds when
the charge is 20% or less.
• The alarm buzzer emits a short beep
intermittently by an interval of 30 seconds when
the charge is 10% or less.
26B27BRadio Remote Control System
Connection Display
Displays the current radio remote control system
connection status.
• On: The radio remote control system is
connected.
• Off: The radio remote control system is not
connected.
Fig. 4-26
28BOutrigger Status Display
Displays the current outrigger status.
For more information on display content, see
“OUTRIGGER INDICATORS” on page 4-38.
29BMoment Limiter Status Display
Displays the current moment limiter status.
For more information on display content, see
“Moment Limiter Display” on 4-76.
30BWarning Display
Displays illuminated warnings.
For more information on the display content, see
“Warning Display” on page 4-22.
Fig. 4-27
To Next Page
