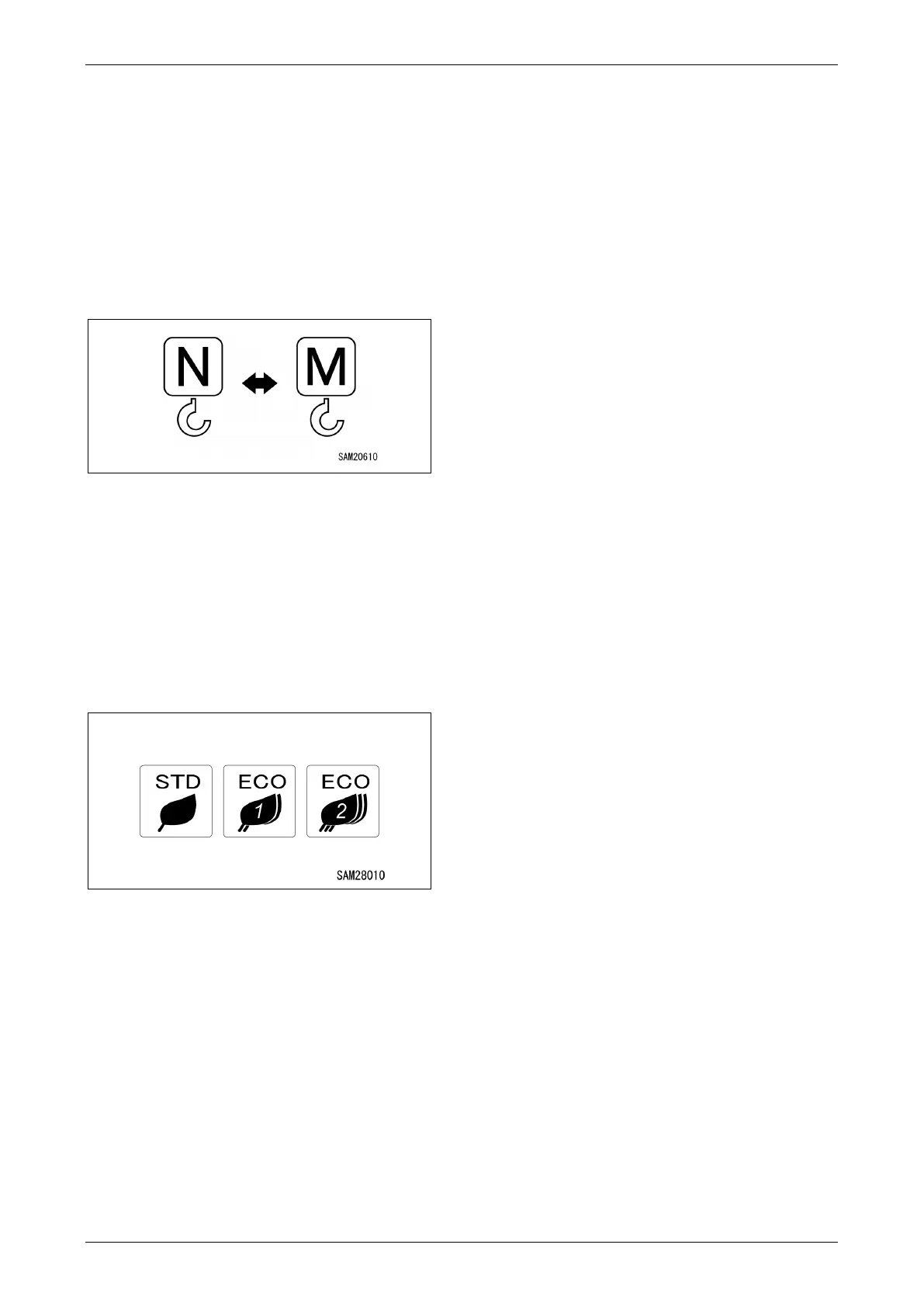

Normal/Multi Outrigger State Display
The display changes automatically to indicate the
current outrigger extension status.
• N lit: Normal Outrigger State
• M lit: Multi Outrigger State
• M blinking: Multi Mode failed
The crane cannot be used in this state. See
“Setting Outriggers (Multi Outrigger State)” on
page 4-47 and redeploy the outriggers.
Fig. 4-28
Eco Mode Display
Displays the eco mode status currently set.
• STD: Standard mode
• ECO1: Eco mode 1
• ECO2: Eco mode 2
For information on the eco mode settings, see
"User Mode" on page 4-17.
Fig. 4-29
