Section 4 – MONITOR Mini-Crawler Crane M A E D A
4-22 9/2020 MC285CB-3
56BWarning Display
CAUTION: If the warning monitor illuminates in red, immediately stop work and stop the
machine, or set it to low idle. Then, immediately inspect the applicable part and take action
for it.
If a fault occurs in the machine, the warning display on the monitor illuminates in red, and an alarm buzzer
sounds at the same time.

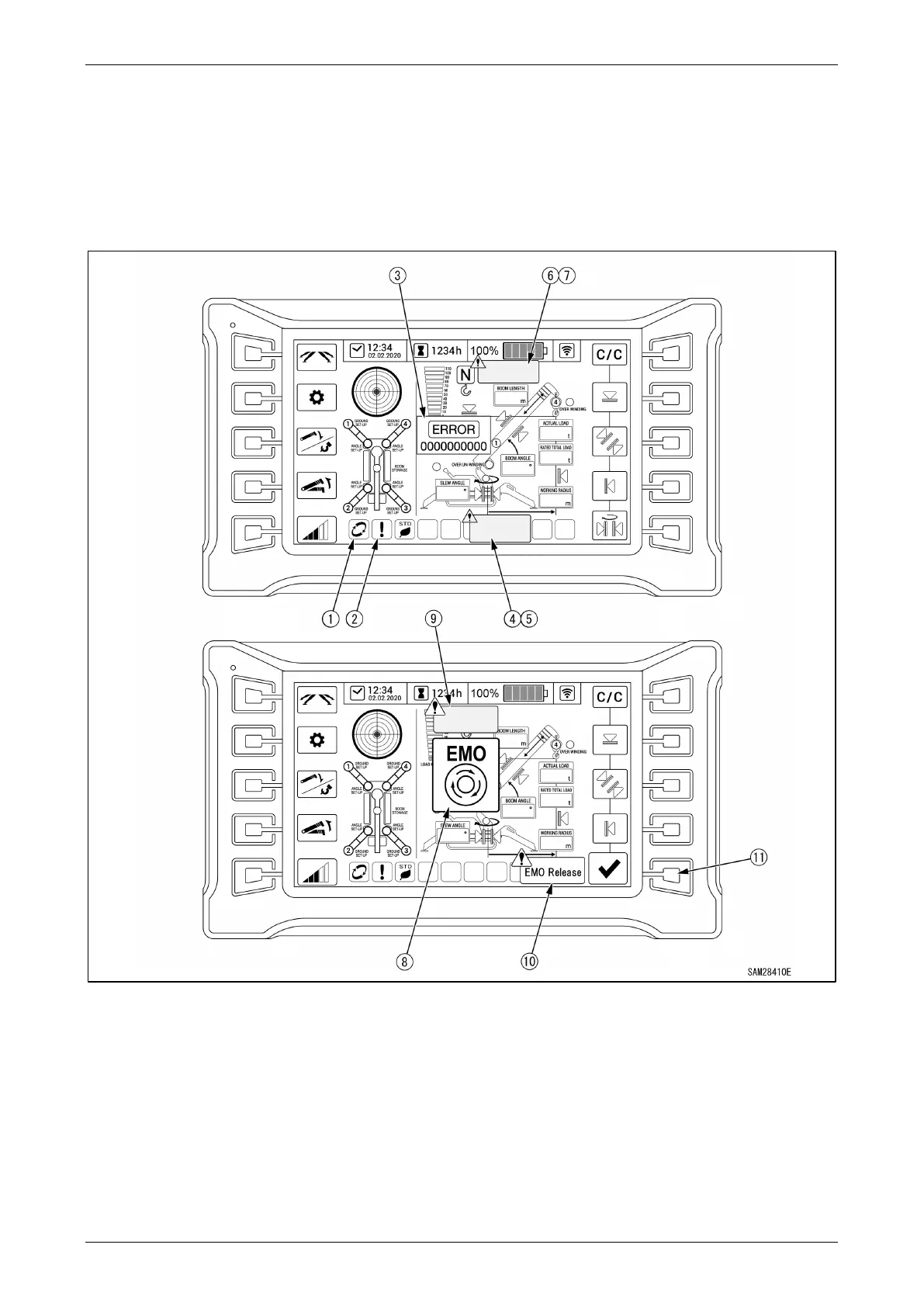

Fig. 4-47
1 - Consumables Display
2 - Abnormality Display (abnormality detected)
3 - Error Code Display
4 - Slew Position Abnormality
5 - Slew Detection Abnormality
6 - Battery Terminal Check Display
7 - Warming Up Display
8 - Emergency Stop Display
9 - Lever Neutral Warning Display
10 - Emergency Stop Reset Guide Display
11 - Emergency Stop Reset Switch
If warning and/or error code is displayed, check the warning content and error content.
If an error code is displayed, see “Error Codes” on page 5-62 and correct the problem.
