SET-UP AND INSTALLATION 16000 OPERATOR MANUAL
4-60
Published 05-09-17, Control # 011-29_v2
d. Lower wire rope guide (7) to shipping position.
e. Using pin (9) pin lug (8) to upper boom point.
17. Store wire rope guide in 40 ft (12 m) heavy insert
(Figure 4-25
, View A):
a. Attach a sling to rope guide pin.
b. Support wire rope guide (2) with hoist and remove
pin (3) from operating position.
c. Lower wire rope guide to shipping position and
install pin (3).
18. Disassemble boom sections.
19. Disconnect boom butt from boom. See Remove Boom
Butt.
NOTE: If shims are used, store shims on boom pins.
WARNING
Pinch Point Hazard!
Keep hands clear of openings in wire rope guide frame
while lowering wire rope guide in step 17.
Dead-End Load Line or
Slowest Live Line
5
6
5a
5a
5
9
5b
5b
• Lower Boom Point (multiple part)
• Upper Boom Point (2-part)
• Upper Boom Point (1-part)
Location of Components at Boom Top Shown
Location of Components at Jib Tops is Similar
See Load Block Reeving Diagrams for
Suggested Location of Weight with
Multiple Part Reeving

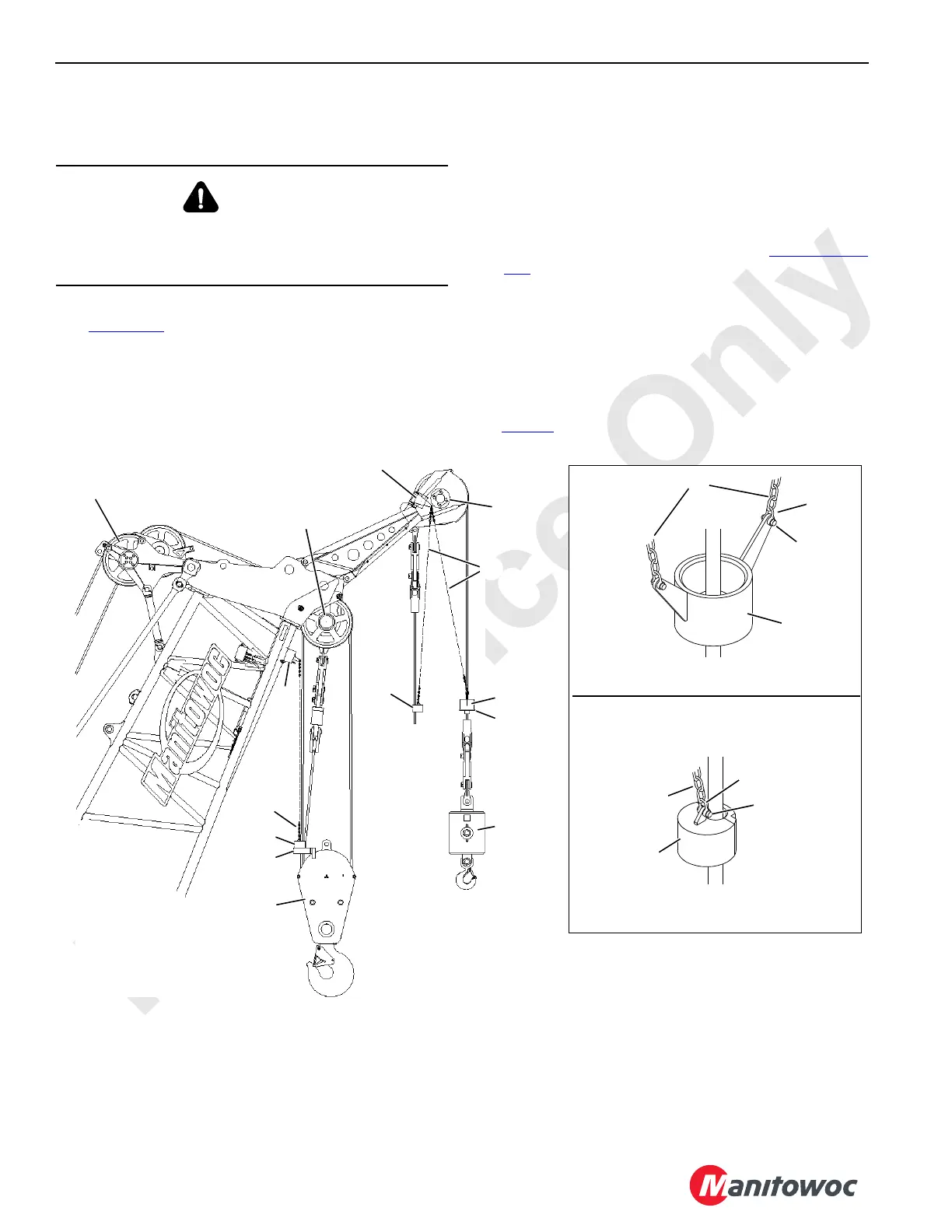

FIGURE 4-32
1
3a
Single Part
Reeving
8
5
6
7
4
5
4
Multiple Part Reeving
Dead Ended at Boom
11
10
9
6
2a
See Legend on
page 61
To Next Page
