Manitowoc GROVE GMK 3060 User Manual

Maintenance work on the superstructure
8.10 Central lubrication system
8 - 64 3 302 574 en Maintenance manual
GMK3060
03.11.2017

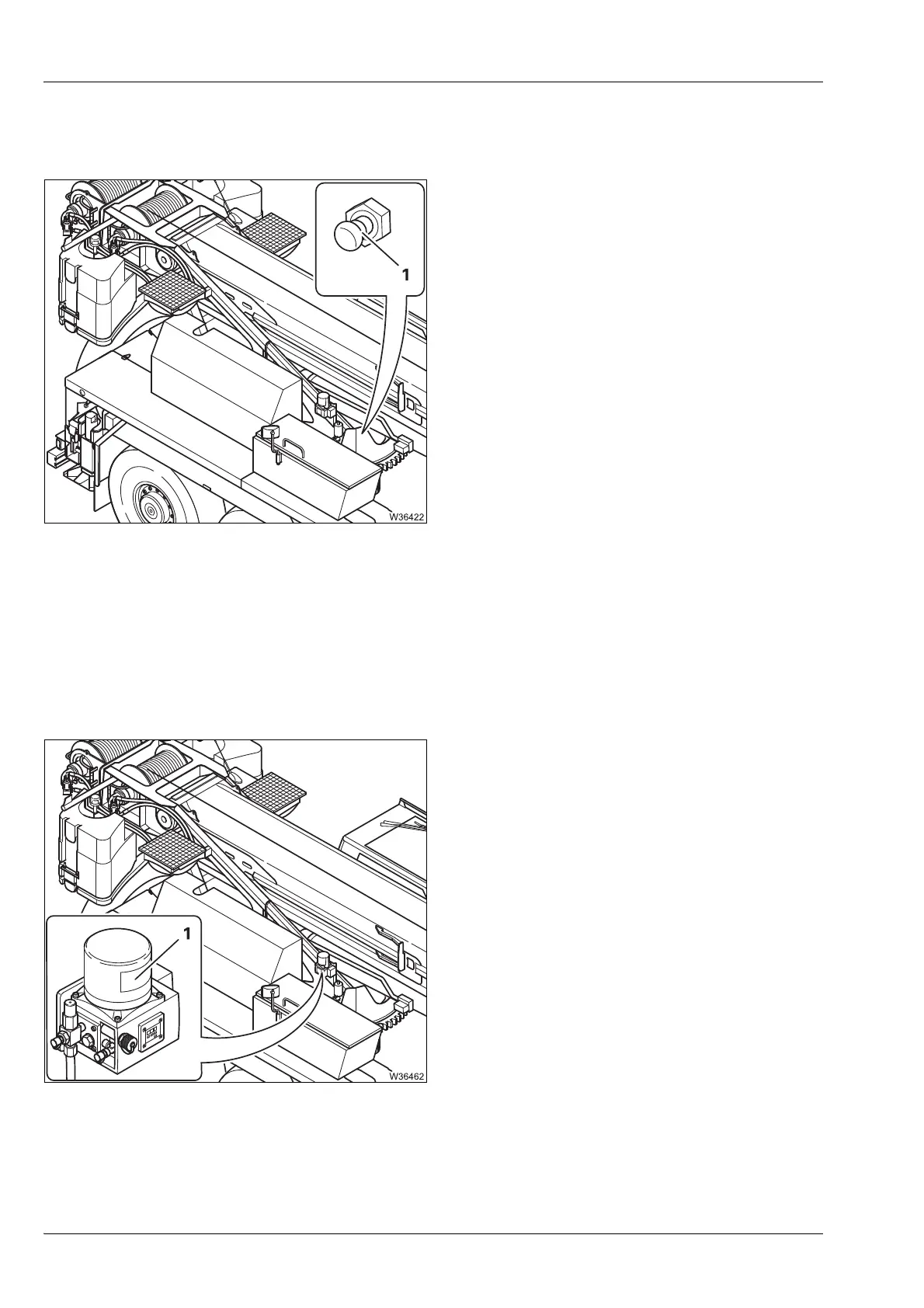

On the distributor
head
Standard equipment
The central lubrication system is as standard
equipped with a distributor head. Using the
filling pump, you manually convey the grease
to the lubricating points via the distributor
head.
• Top up the filling pump; à Topping up,
p. 7 - 102.
• Use the filling pump to force grease into the
lubricating nipple (1) until grease comes out
of the lubricating points (e.g. on the ball
slewing bearing).
• Remove any grease that emerges.
H
In the event of extensive crane operation, you must reduce the maintenance
interval for lubricating manually. This prevents the lubricating points from
receiving insufficient grease.
On the grease
container
Additional equipment
As additional equipment, the central lubrica-
tion system is equipped with an electrical
pump. The pump automatically and regularly
conveys the grease to the lubricating points
via the distributor head.
The grease container (1) is filled in the same
way as in the carrier;
à p. 7 - 101.
