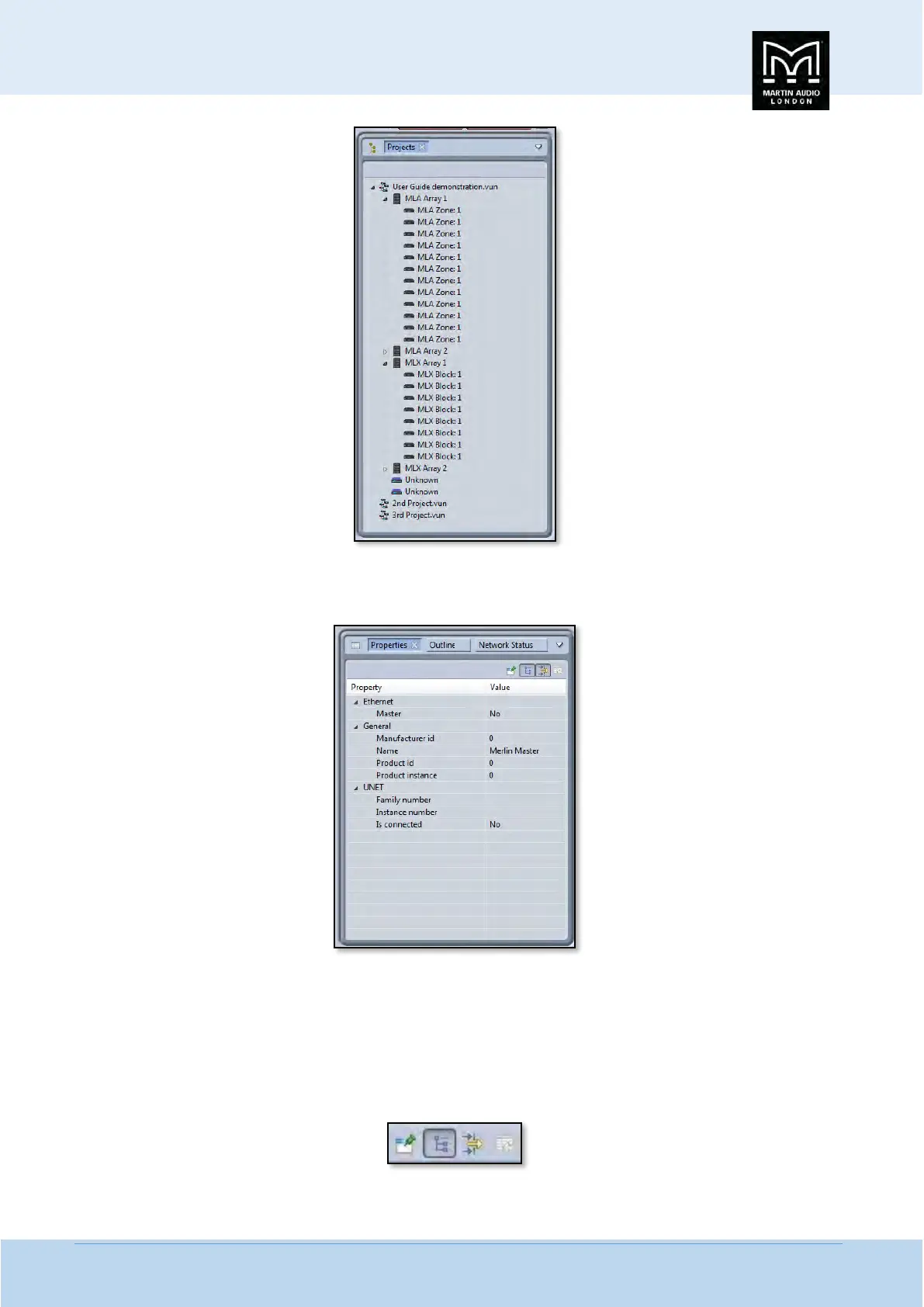

The final window by default has Properties and Outline available but by using the ‘Show View’ option in the Window menu, you
can also select Network Status. This shows all three options available;-
Any of the three options can be viewed by clicking on the relevant button. As with the Project window any of the selected options
can be detached as a floating window, maximised or closed by clicking on the white arrow. If all options in the window are closed
the project window will fill the space, if that is also closed the Project window will fill the space.
The Properties window will show the properties for any element selected in the System diagram. The example above shows the
properties for a Merlin in an off line project. There are a number of options available for the Properties display selected by the
icons in the top right corner of the window;-
